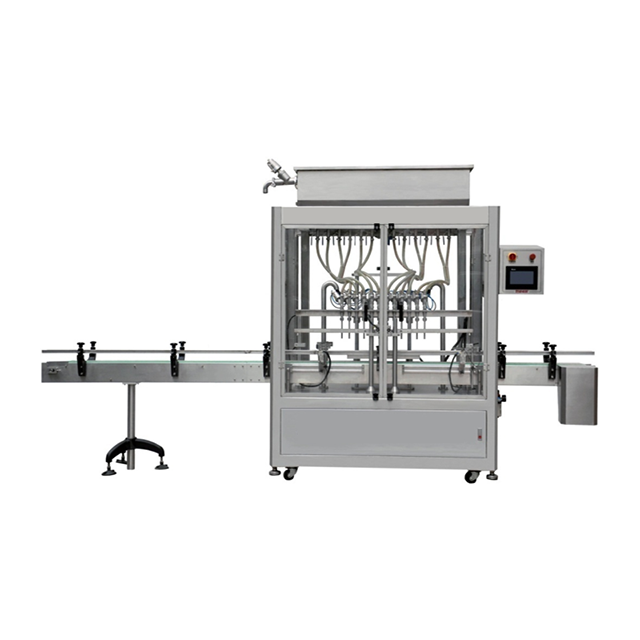

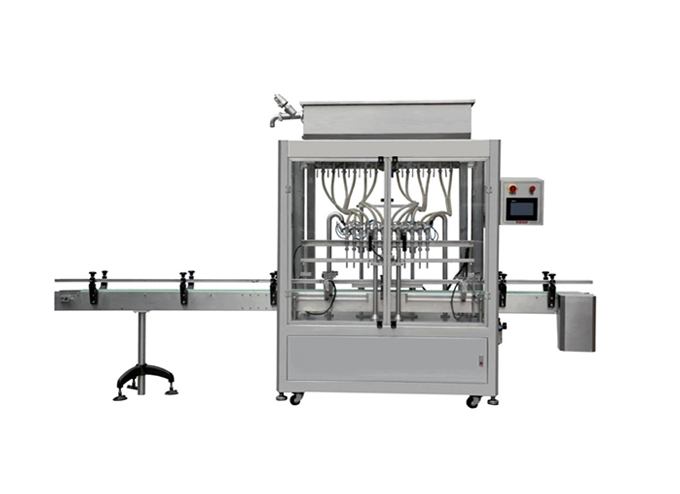

12 Heads Inline Type Gravity Liquid Filling Machine
  • 12 Heads Inline Type Gravity Liquid Filling Machine
  • 12 Heads Inline Type Gravity Liquid Filling Machine
  • 12 Heads Inline Type Gravity Liquid Filling Machine
12 Heads Inline Type Gravity Liquid Filling Machine12 Heads Inline Type Gravity Liquid Filling Machine12 Heads Inline Type Gravity Liquid Filling Machine

12 Heads Inline Type Gravity Liquid Filling Machine


    Product Code: PP307


    This machine is applicable for the filling of normal liquids, or very light viscous liquid for instance , water, non-carbonated drink etc



Inquire Now
Product Introduction

12 Heads Inline Type Gravity Liquid Filling Machine


Application


This machine is applicable for the filling of normal liquids, or very light viscous liquid for instance , water, non-carbonated drink etc



Features


Standard Features


1) PLC & touch screen HMI Control

2) Stainless steel 304 construction for main parts

3) Stainless steel 316 construction for product touching parts

4) Tool less for different container change over

5) Cleaning drain trough design, keep clean environment

6) No container no filling interlock

7) Quick connecting joints for pipes

8) One key instantly set up the filling volume, no need to adjust individually

Optional Features


1) Stainless steel 304 for product touching parts

2) Double Lanes

3) Servo motor driven



Technical Specification


Type 3B-XxxxZLS-12
Filling Range50-2000ml
Filling Speed2000-6000 bottles/hour
Filling Accuracy≦±1 liquid
Power SupplyAC220V/50/60Hz 500W
Weight700㎏
Pressure Range0.4-0.6Mpa

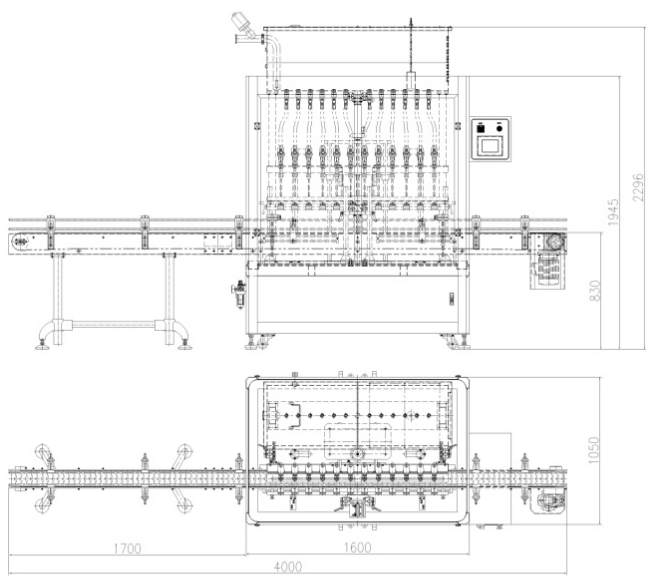

Main Machine Dimension1900×1050×2300mm


12 Heads Inline Type Gravity Liquid Filling Machine


Related Products

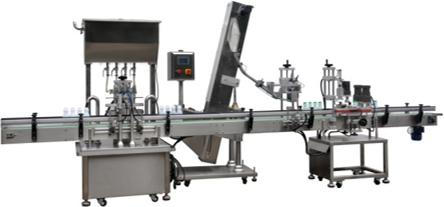

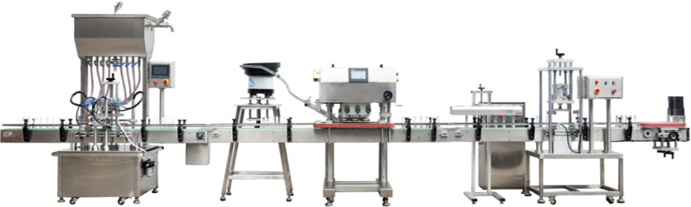

Typical Filling Line

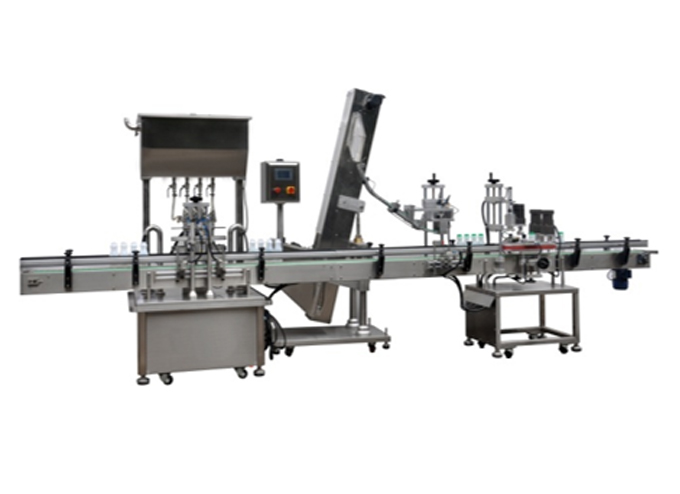

12 Heads Inline Type Gravity Liquid Filling Machine


1) Full-automatic 8-head gravity type filling machine

2) Automatic capping and six-head cap-screwing machine

3) Air-cooled aluminum foil sealing

4) Sing-head cap-pressing machine

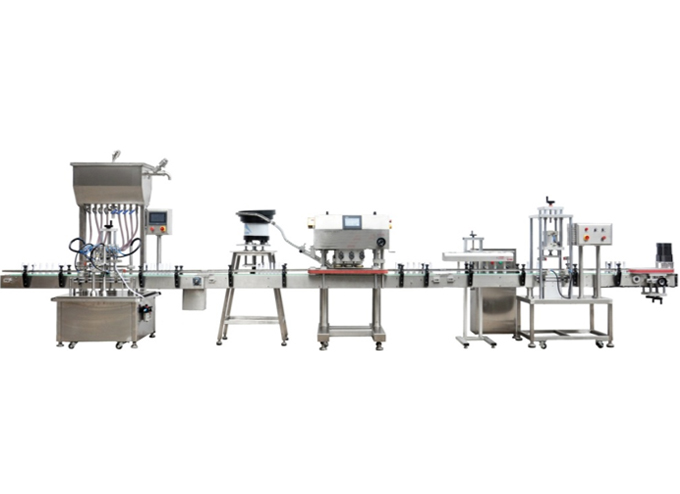

12 Heads Inline Type Gravity Liquid Filling Machine


1) Full-automatic 4-head filling machine

2) Automatic capping and cap-pressing machine

3) Single-head cap-screwing machine
