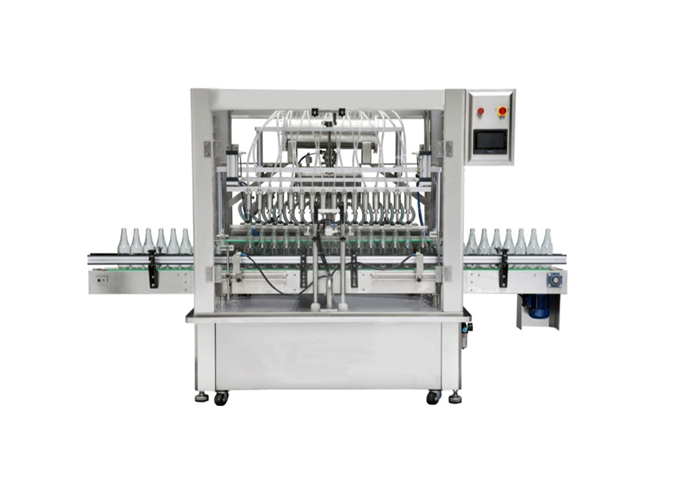

Linear Type Vacuum Filling Machine Series
  • Linear Type Vacuum Filling Machine Series
Linear Type Vacuum Filling Machine Series

Linear Type Vacuum Filling Machine Series


    Product Code: PP305


    This machine is applicable for the filling of liquids such as sauce, vinegar and beverage, and the filling of particle-bearing pasty materials such as chilli sauce, tomato sauce and oyster sauce.


Inquire Now
Product Introduction


Application


This machine is applicable for the filling of liquids such as sauce, vinegar and beverage, and the filling of particle-bearing pasty materials such as chilli sauce, tomato sauce and oyster sauce.
Linear Type Vacuum Filling Machine Series



Features


Standard Features


1) Automatic linear vacuum filling;

2) Advanced HMI operation, PLC control;

3) Vacuum differential pressure equal level filling,

4) Bubbling proof and dripping proof

5) Configure with CIP cleaning interface;

6) Stainless steel 316 for product touching parts

7) Stainless steel 304 for surface


Optional Features


1) Stainless steel 304 for product touching parts


Advantages


1) Vacuum differential pressure equal level filling,

2) Bubbling proof and dripping proof


Technical Specification


Type 3B-xxxxDYW-16-500DYW-16-2000
Filling range80-500ml500-2000ml
Filling speed4000-5000 BPH2000-4000 BPH
Filling Accuracy≦±3mm (liquid level)≦±3mm (liquid level)
Bottle Diameter38-100mm38-100mm
Bottle Height65-260mm65-260mm
Power SupplyAC220V/50/60Hz 500WAC220V/50/60Hz 800W
Weight800 kg850 kg
Air Supply0.4-0.6Mpa0.4-0.6Mpa

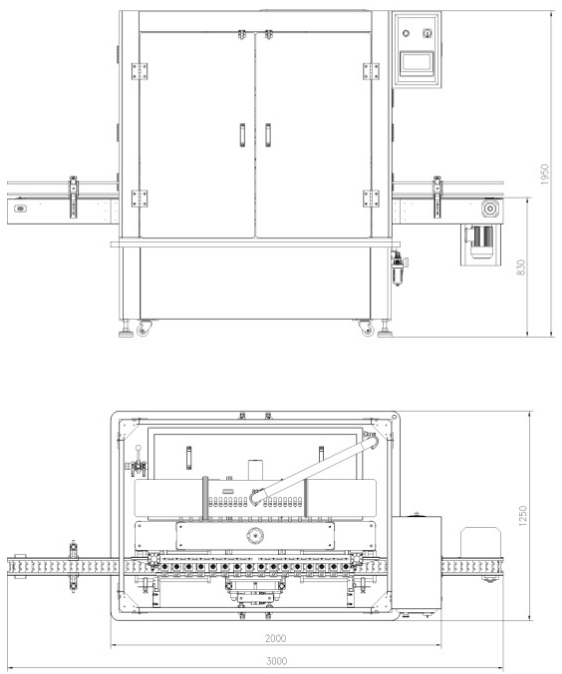

Main Machine Dimension1750×1250×1945mm1750×1250×1945mm


Linear Type Vacuum Filling Machine Series


Related Link

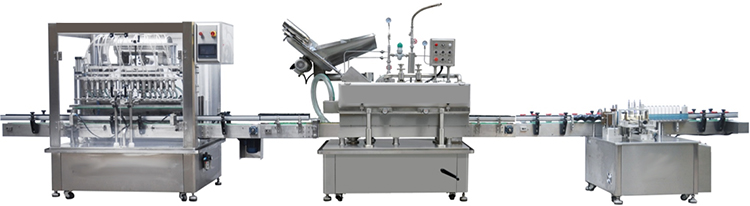

Typical Filling Line 1



Linear Type Vacuum Filling Machine Series


1) 16- head linear type vacuum filling machine

2) Twisting-off vacuum capping machine

3) Paste labeling machine

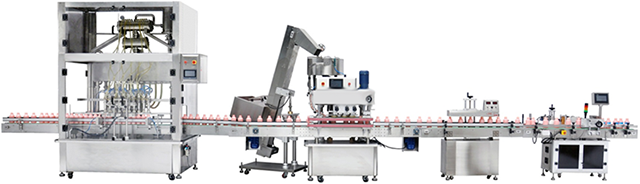

Typical Filling Line 2

Linear Type Vacuum Filling Machine Series


1) 10-head linear vacuum filling machine

2) 6-wheel capping machine

3) Air cooling aluminum foil capping machine

4) Round bottle labeling machine


If need more support, please contact us at: cs@gloex.com.cn
