Product Code: PP200
Differing from the VFFS machine that form bags from roll stock film, This packaging machines fill and seal already premade pouches, so no film roll stock is required. The end result is that your packaged product looks modern, offers convenience, shelf appeal, and provides numerous benefits on more efficient and convenient packaging automation in many industries including pet food, natural and organic products, and snacks.
Differing from the VFFS machine that form bags from roll stock film, This packaging machines fill and seal already premade pouches, so no film roll stock is required. The end result is that your packaged product looks modern, offers convenience, shelf appeal, and provides numerous benefits on more efficient and convenient packaging automation in many industries including pet food, natural and organic products, and snacks.
| Issue | Application Description |

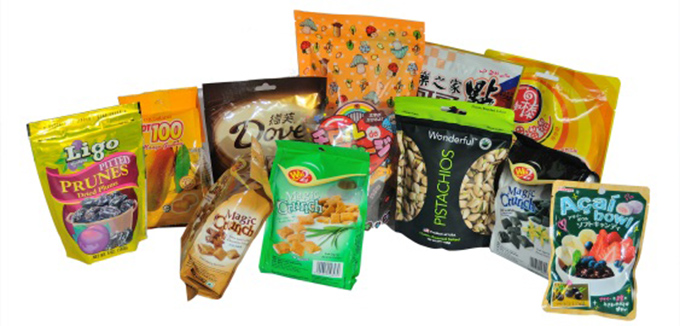

| Applications | Applicable Pre-formed Pouches: Suitable for heat sealable pre-made pouch filling and sealing. Such as standard flat pouch ,doypack/stand up pouch, corner spout pouch ，contoured shaped pouches , even pouches with zipper Applicable Products: Versatile configuration with different dosing devices,like volumetric cup, linear scale, multi-head scale, auger, liquid pump capable to pack with liquid, powder granule, or other irregular solidity products. |
1) Subject to configure with different accessories , apply for heat sealable pre-made pouch filling and sealing. Such as standard flat pouch ,doypack/stand up pouch, corner spout pouch ,contoured shaped pouches , even pouches with zipper
2) Frequency inverting Positioning Drives and Index Drives platform
3) PLC control with touch screen operation, Production parameter memory including gripper size, machine speed, sealing temperature etc
4) Highly durable welded steel frame and stainless steel 304 for the surface and product touching parts
5) Pouch presence detection – no filling, no sealing
6) Two steps heat sealing process guarantees clean sealing
7) One more cooling station for liquid products
8) Quick format changing design , pouch width setting through touch screen , and others based on simple mechanism and extended automation.
9) The rejecting system will also reject the empty bags without stopping the machine which can practically improve the work efficiency.
10) Automatic central lubrication system , easier maintenance, do not need to grease the lubrication points manually
11) Easy troubleshooting by touch screen menu and alarm direction
1) Product filling – can be integrated with multi-head scales, volumetric fillers and auger fillers
2) Jacketed hopper for hot fills
3) Zipper opening device
4) Special bag magazine, like corner spout, slide zip, non rectangular shaped pouch
5) Date coding: emboss, hot stamp, inkjet or thermal transfer
6) Quality control: checkweigher, metal detector, X-ray inspection
7) Dust suction nozzles and dust collector
8) Product settler, product setting after filling
9) Bag supporter for heavy fills
10) Ethernet connectivity
11) Washdown structure (IP65)
12) Deflating or Gas flushing,like N2 or Co2 flushing

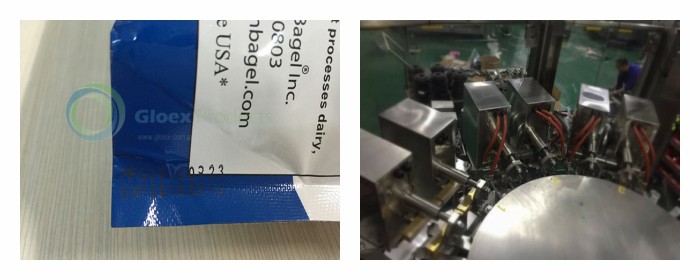

2 times hot sealing , 1 time cool sealing for liquid products , code embossing at option
Note: Special seal bars accomplish perfect sealing (preheating-sealing-pressing system). Our machine is equipped with two sets of hot sealing moulds and one set of cool sealing mould which are able to highly improve the neatness of the sealing and make the products look more delicate, while similar machines from other companies only have two sets of hot sealing moulds

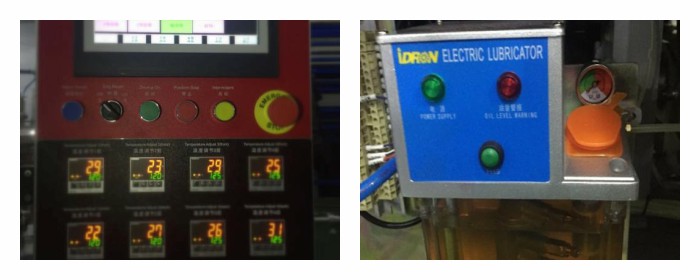

Independent sealing PID temperature controllers
Several pairs of temperature controller to control the sealing temperature in accurate, independently for each sealing bar , wide adaption for different heat sealable films , stable temperature enable steady sealing quality
Automatic central lubricating station design
Automatic lubrication system allows easier maintenance for this machine as the operator do not need to grease the machine manually, and also keep the operation clean and high efficient.

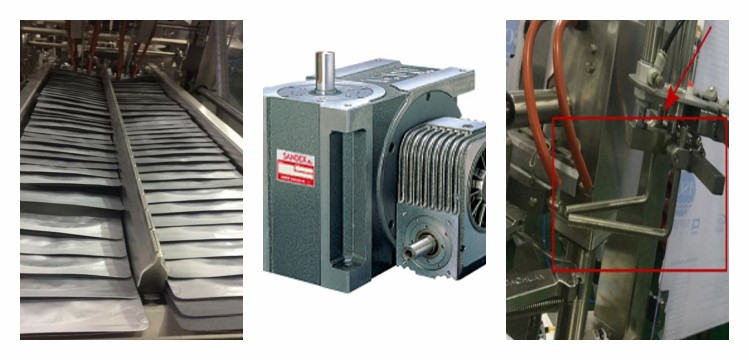

Hundreds bag storage magazine
Pouch magazine(horizontal conveying system) can be placed with several hundred pouches at one time while that of other factories can have only a small amount.
This design also enhance the adaption of soft pre-made pouch , or corner spout pouch with open mouth
No bag no filling , empty bag rejection system
Machine does not fill, seal and will be with sound-light alarm when there is no bag or bag opening. The rejecting system will also reject the empty bags without stopping the machine which can practically improve the work efficiency.
World Class Rotary Positioning Drives and Index Drives
As the most important component /sub-system of this machine, we select world famous brand –Sankyo Japan ,funded in 1938 , and not china made brand , which enable stable operation of long life time
Single Lane Model/820D | Dual Lanes Model/820S |
1) Applications: Premade bag 2) Packing Material: Laminated film 3) Work Stations: 8 4) Lanes: 1 5) Control Method: PLC & HMI, Touch screen operator interface 6) Surface: SS304 7) Sealing: Heat sealing 8) Filling Range(g): 500-2,000 9) Bag Size(mm): W90-230,L120-320 10) Packing Speed(bags/min/double lane): 15-40 11) Power Consumption(KW): 4.8 12) Power Requirement: 380VAC±10％，50Hz 13) Compress Air Requirement: 0.5-0.6Mpa 14) Sealing pattern: Chessboard line or strip line 15) Embossing: 8 letters (Can be tailor made according to the request) 16) Approximate Weight(kg)：2000 17) Dimension(LxWxH-mm)：3200×2150×1900 | 1) Applications: Premade bag 2) Packing Material: Laminated film 3) Work Stations: 9 4) Lanes: 2 5) Control Method: PLC & HMI, Touch screen operator interface 6) Surface: SS304 7) Sealing: Heat sealing 8) Filling Range(g): 100-500 9) Bag Size(mm): W90-160,L120-300 10) Packing Speed(bags/min/double lane): 40-80 11) Power Consumption(KW): 4.8 12) Power Requirement: 380VAC±10％，50Hz 13) Compress Air Requirement: 0.5-0.6Mpa 14) Sealing pattern: Chessboard line or strip line 15) Embossing: 8 letters (Can be tailor made according to the request) 16) Approximate Weight(kg)：2000 17) Dimension(LxWxH-mm)：3200×2150×1900 |
