Product Code : PP133

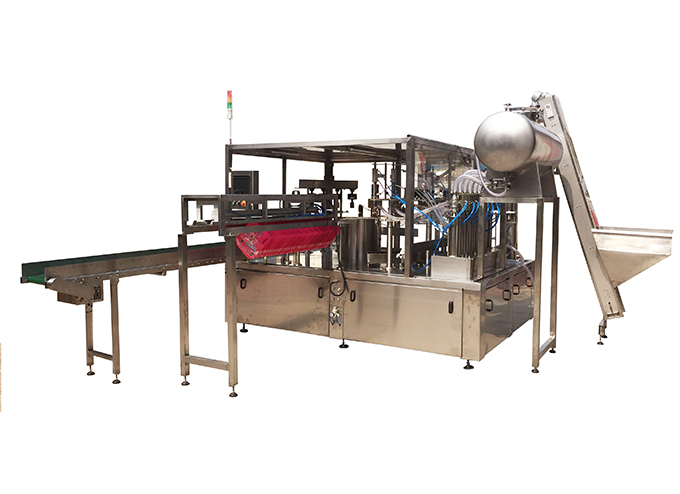

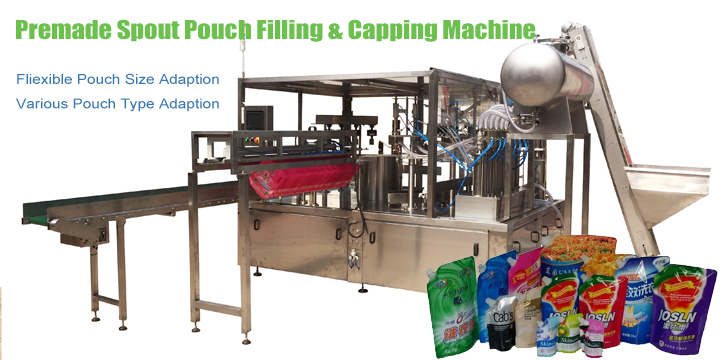

This machine is applicable for filling liquid in premade spout pouch and capping, applies various type spout pouches, regular or irregular, flat ,stand up pouch or gusset pouch etc. which include processes of premade spout pouch feeding, liquid dosing, filling, spout capping
This machine is applicable for filling liquid in premade spout pouch and capping, applies various type spout pouches, regular or irregular, flat ,stand up pouch or gusset pouch etc. which include processes of premade spout pouch feeding, liquid dosing, filling, spout capping, the detail application description as following table:
| Issue | Application Description |
| Applicable Pouches | Spout Position: Top center spouted pouch, or corner spouted pouch Pouch: Flat pouch, stand up pouch, special shaped pouch |
| Applicable Products | Normal liquid or viscous liquid such as Food Industry: Edible Oil Dressings – Ketchup, Mayonnaise, Mustard Water Liquid eggs Sauce Drinks -Juice, soybean milk Non-Food Industry: Synthetic oil Industrial soap Paint Shampoo, lotion Liquid Detergent |
| Applicable type of cap | Anti-opening / screwing cap with dual hanging slot etc. |
Reference photo of cap

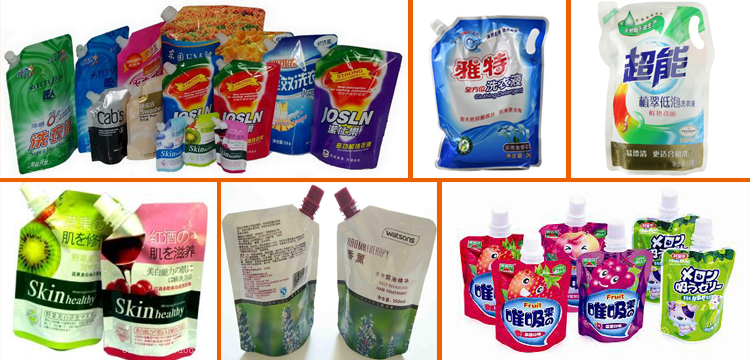

Reference photo of pouch
Standard Features
Stainless steel 304 and duralumin for structure and surface
Product touching parted constructed by stainless steel 304
PLC & HMI Control Integrated, easy for operation and troubleshooting
Equipped with frequency converting motorized system to enable excellent performance of driving
Wide range of pouch size adaption

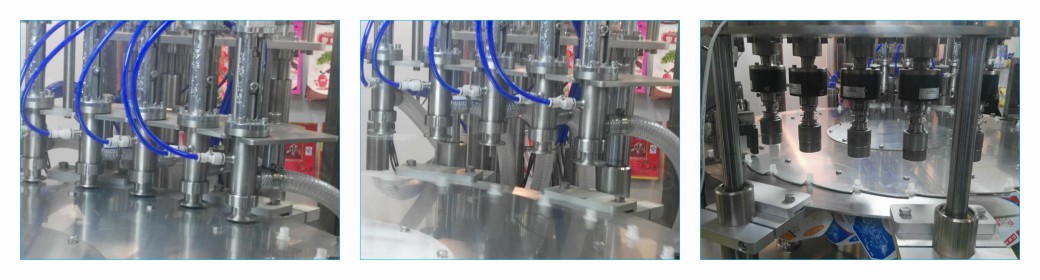

Premade spout pouch feeding, liquid dosing, filling, spout capping
Include the automatic devices of cap sorting , pre-capping and capping
It is applicable for filling liquid in premade spout pouch and capping, applies various type spout pouches, regular or irregular, flat or stand up pouch etc.
Automatic spout cleaning after filling enable clean appearance of packed products
Optional Features
Stainless steel 304 and plexiglass protection shield
Door open and machine stop interlock
Air purification device
Cap transport device
CIP connectable tanks and nozzles
Stainless steel 316 for product touching parts
Cap UV sterilization before capping
Servo motorized filling pumps
Practically, compared with other types of pouch form, filling sealing machine or other premade pouch filling and sealing machine, this vertical type machine with its advantages as indicated in the following table:
| No | Advantage | Description |
| 1 | Pouch size adaption | 1)Quick changeover to another pouch size 2)Easy handling of jumbo flexible pouches |
| 2 | Pouch type adaption | Apply for various types of pouch like 1)Flat pouch, stand up pouch, gusseted pouch 2)Regular or Irregular pouch |
| 3 | Spout position adaption | 1)Top center spout 2)Corner spout |

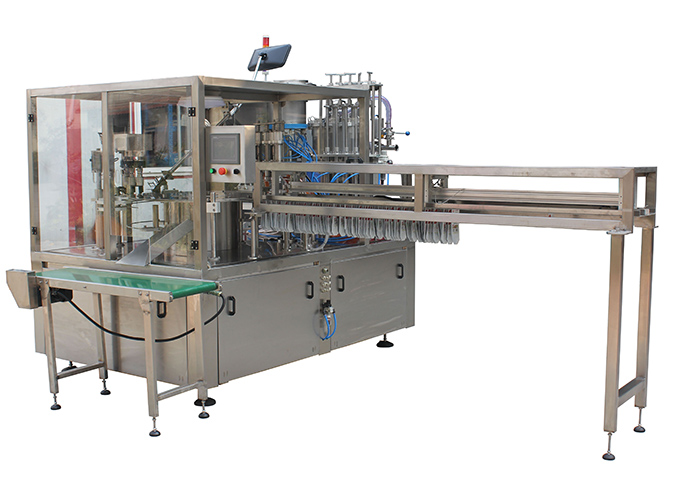

| 1U-GX2000 | 1U-GX-II |
1)Packaging Range(ml)：1,000-3,000 2)Filling Heads：8 3)Capping Heads：4 4)Packing Speed (Pouches/min)：30-45 5)Filling Accuracy：+/-0.5% 6)Power Consumption(kW)：2.5 7)Power Requirement：380V 50/60HZ 8)Compress Air Requirement(Mpa) ：0.65 9)Compress Air Consumption(m3/min)：2.0 10)Buffering Tank(L)：200 11)Liquid Level Control Device(set)：1 12)Capping and Pre-capping device(set)：1 13)Pouch Feeding Device(set)：1 14)Approximate Net Weight(kg)：1500 15)Dimension(mm)-Length of Pouch Feeder：1700 16)Dimension(mm)-main machine：3900*2100*2200 | 1)Packaging Range(ml)：1,00-500 2)Filling Heads：5 3)Capping Heads：5 4)Packing Speed (Pouches/min)：50-80 5)Filling Accuracy：+/-0.5% 6)Power Consumption(kW)：2.0 7)Power Requirement：380V 50/60HZ 8)Compress Air Requirement(Mpa) ：0.65 9)Compress Air Consumption(m3/min)：1.0 10)Buffering Tank(L)：100 11)Liquid Level Control Device(set)：1 12)Capping and Pre-capping device(set)：1 13)Pouch Feeding Device(set)：1 14)Approximate Net Weight(kg)：1500 15)Dimension(mm)-Length of Pouch Feeder：1700 16)Dimension(mm)-main machine：2300*1680*1950 |
