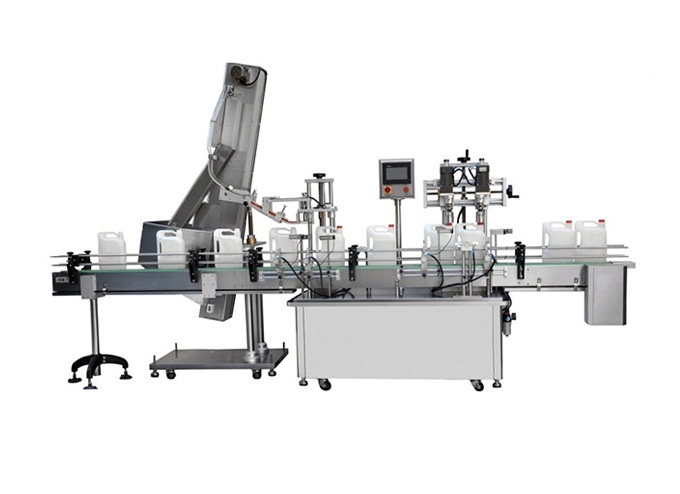

Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter
  • Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter
  • Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter
  • Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter
  • Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter
Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap SorterAutomatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap SorterAutomatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap SorterAutomatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter

Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter


    Product Code: PP309


    This machine is applicable for capping of bottles of which mouth height is consistent with or higher than the body height.



Inquire Now
Product Introduction


Application


This machine is applicable for capping of bottles of which mouth height is consistent with or higher than the body height.



Features


Standard Features


1) Advanced PLC and touch screen control

2) Mainly 304 stainless steel construction

3) 2 capping chuck configurations

4) Elevator type waterfall cap sorter

5) Frequency converting driven

6) Heavy duty casters standard

7) It applies to capping of bottles of which mouth height is consistent with or higher than the body height.

8) It is of torque adjustment; capping height is adjusted by hand wheel, which is easy and simple.


Optional Features


1) Vibratory bowl sorter

2) Single or more capping chuck



Technical Specification



Type XG-60-2
Cap Diameter19-55 mm or customized
Bottle Diameter/Width23-100 mm or customized
Bottle Height45-320 mm  or customized
Capping Speed10-40 bottles/min subject to the type of container or cap
Power SupplyAC220V 50/60Hz 2.0 kw
Weight650kg
Compressed Air Supply0.4-0.6Mpa

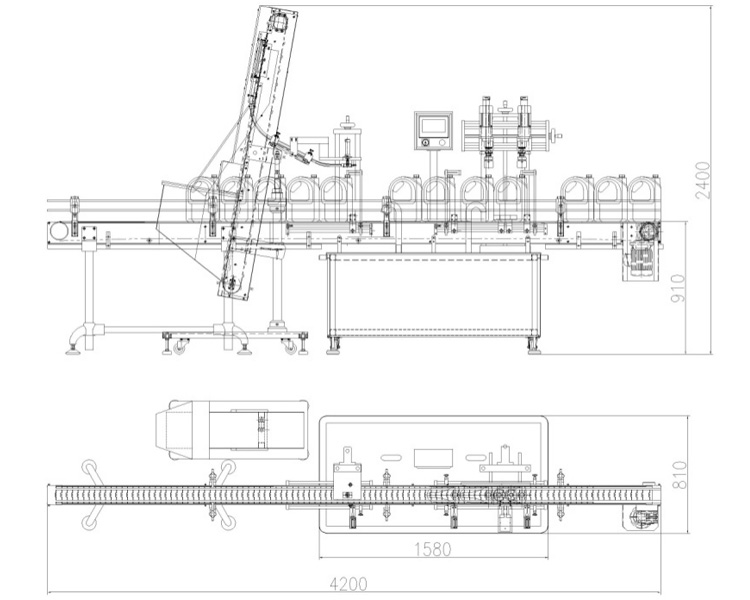

Dimension3000×830×2200mm



Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter


Related Link

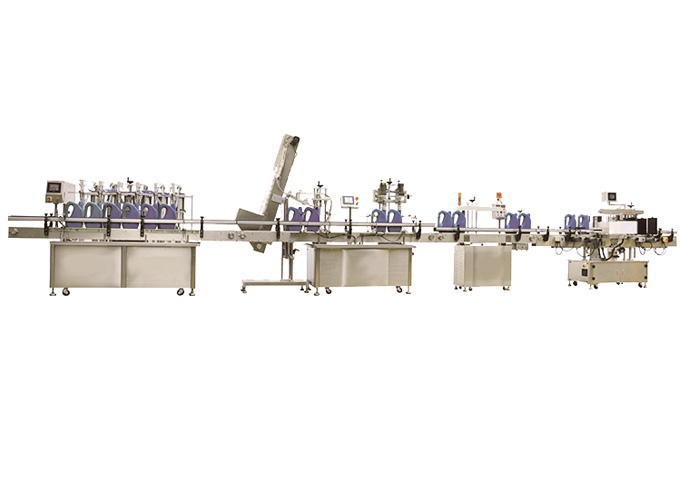

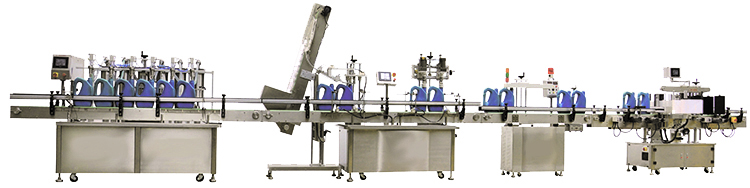

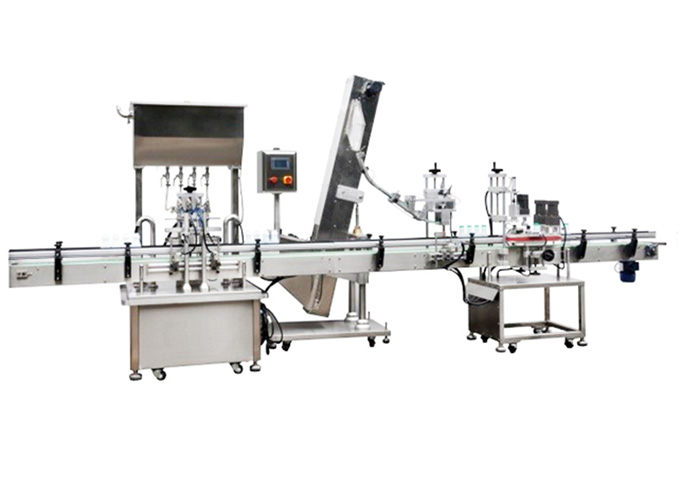

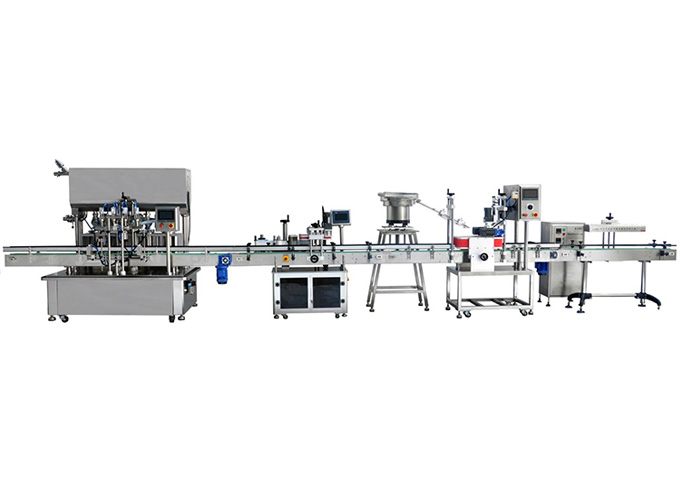

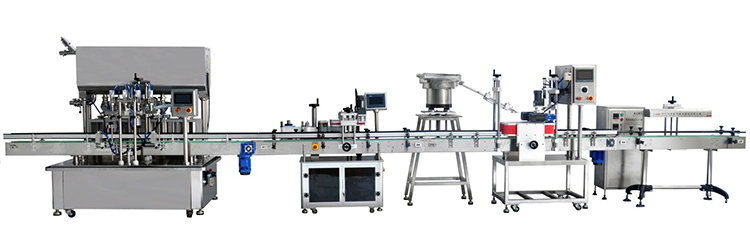

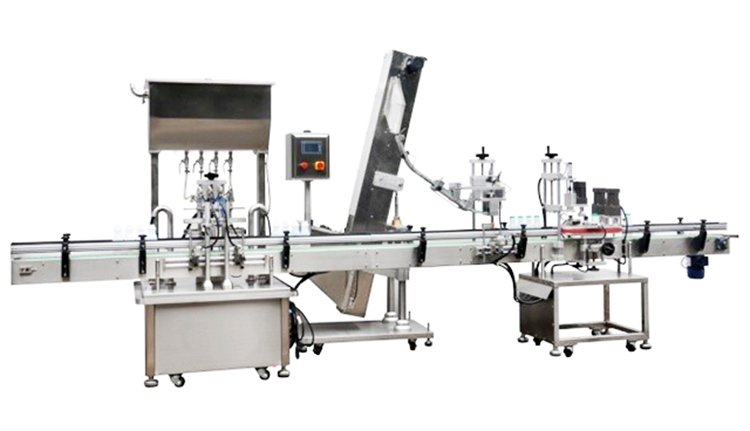

Typical Filling Line
Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter

Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter

1) 4-Head Pneumatic Piston Filling Machine

2) Vertical Type Labeling Machine

3) Automatic Single-Head Inline Chuck Capping Machine

4) Air-Cooled Aluminum Foil Capping Machine

Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter

Automatic Inline Chuck Capping Machine with Elevator Type Waterfall Cap Sorter
