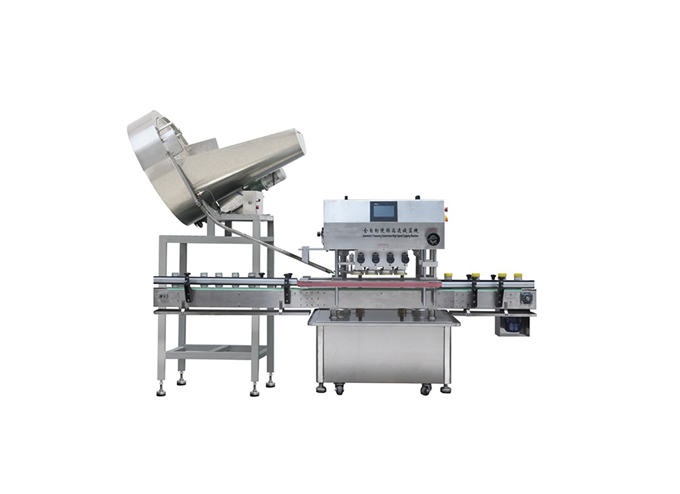

Automatic Inline Spindle Capping Machine with Vertical Wheel Cap Sorter
  • Automatic Inline Spindle Capping Machine with Vertical Wheel Cap Sorter
Automatic Inline Spindle Capping Machine with Vertical Wheel Cap Sorter

Automatic Inline Spindle Capping Machine with Vertical Wheel Cap Sorter


    Product Code: PP198C


    This machine is applicable for tightening threaded caps. integrated with the vertical wheel cap sorter, elevator-style Cap sorter, Vibratory or Centrifugal Sorting Bowl optionally,


    1) It is used for cap screwing of round bottles, square bottles or oblate bottles.

    2) It can be used on the independent rack and is suitable for cap screwing at large scale production lines of customers.

    3) It applies to customers requiring replacement of different specifications of bottles.

    4) It is applicable for wide-mouth bottles, including thread cap screwing of large caliber glass and plastic bottles for fermented bean curd, pickles and pulps.

Inquire Now
Product Introduction


Automatic Inline Spindle Capping Machine with Vertical Wheel Cap Sorter



Application


This machine is applicable for tightening threaded caps. integrated with the vertical wheel cap sorter, elevator-style Cap sorter, Vibratory or Centrifugal Sorting Bowl optionally,

1) It is used for cap screwing of round bottles, square bottles or oblate bottles.

2) It can be used on the independent rack and is suitable for cap screwing at large scale production lines of customers.

3) It applies to customers requiring replacement of different specifications of bottles.

4) It is applicable for wide-mouth bottles, including thread cap screwing of large caliber glass and plastic bottles for fermented bean curd, pickles and pulps.

Automatic Inline Spindle Capping Machine with Vertical Wheel Cap Sorter


Features


Standard Features


1) Advanced PLC and touch screen control

2) Mainly 304 stainless steel construction

3) 8 spindles configuration

4) Vertical Wheel sorter

5) Frequency converting driven

6) Heavy duty casters standard

7) No change of parts needed for a wide range of containers, such as round, square or oblate shape

8) No change of parts needed for a wide range of pre-threaded caps


Optional Features



1) Elevator type waterfall cap sorter

2) Vibratory bowl sorter

3) Centrifugal bowl sorter

4) 6 spindle model



Technical Specification


TypeXGVW-120-8
Cap Diameter30-100 mm
Bottle Diameter50-100 mm
Bottle Height50-200 mm
Screwing Speed4500 bottles/h
PowerAC220V 50/60Hz 1.5KW
Weight650kg
Compressed Air Supply0.4-0.6 Mpa
Dimension of Main Machine2800×635×1630mm


Automatic Inline Spindle Capping Machine with Vertical Wheel Cap Sorter


Related Products


Typical Filling Line

Automatic Inline Spindle Capping Machine with Vertical Wheel Cap Sorter


1) 8-head pneumatic filling machine

2) Automatic Inline Spindle Capping Machine with Vertical Wheel Cap Sorter

3) Paste labeling machine
