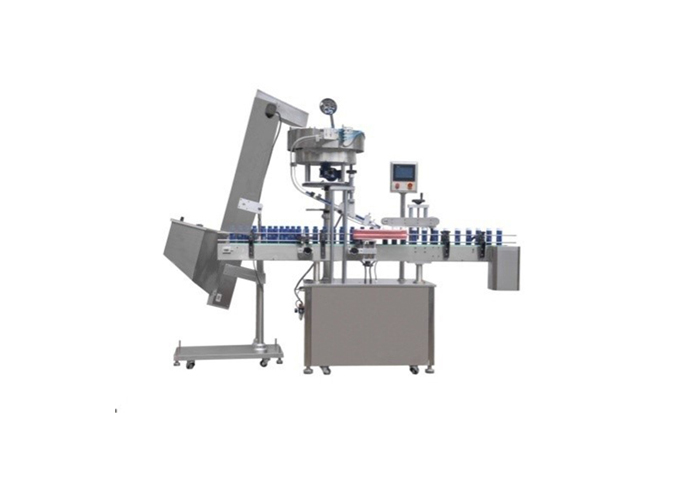

Automatic Inline Snap Capping Machine with Vibratory Bowl Cap Sorter
  • Automatic Inline Snap Capping Machine with Vibratory Bowl Cap Sorter
  • Automatic Inline Snap Capping Machine with Vibratory Bowl Cap Sorter
Automatic Inline Snap Capping Machine with Vibratory Bowl Cap SorterAutomatic Inline Snap Capping Machine with Vibratory Bowl Cap Sorter

Automatic Inline Snap Capping Machine with Vibratory Bowl Cap Sorter


    Product Code: PP197A


    This machine is applicable for press on type caps. integrated with Vibratory or Centrifugal Sorting Bowl cap sorter, or waterfall Cap sorter optionally


    Typically, apply for capping of bottles for soy source, vinegar and cooking oil.

Inquire Now
Product Introduction


Application


This machine is applicable for press on type caps. integrated with Vibratory or Centrifugal Sorting Bowl cap sorter, or waterfall Cap sorter optionally


Typically, apply for capping of bottles for soy source, vinegar and cooking oil.



Features


Standard Features


1) Advanced PLC and touch screen control

2) Mainly 304 stainless steel construction

3) Vibratory bowl sorter

4) Frequency converting driven

5) Heavy duty casters standard

6) Automatic cap sorting and pre-capping

7) Cap pressing on while container moving by clamping belt



Optional Features


1) Elevator type waterfall cap sorter

2) With/without cap elevator



Technical Specification


TypeYGVB-120
Cap Diameter45-160 mm
Bottle Diameter50-110 mm
Bottle Height60-300 mm
Capping Speed<=6000 BPH
PowerAC220V 50/60Hz 1.1KW
Weight650 kg
Compressed Air Supply0.4-0.6Mpa

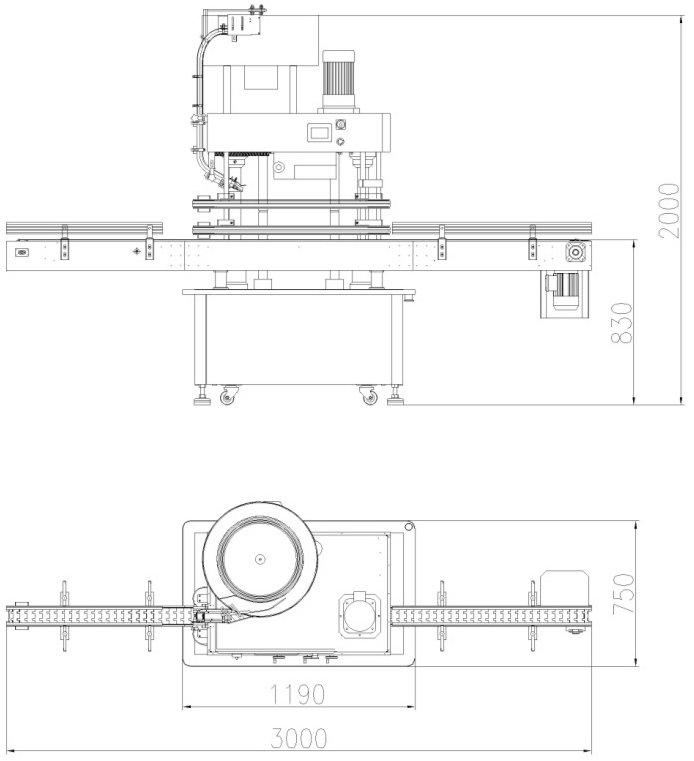

Dimension of Main Machine3000×750×2000mm

Automatic Inline Snap Capping Machine with Vibratory Bowl Cap Sorter
