Automatic Paste Filling Seaming Integrate Machine
  • Automatic Paste Filling Seaming Integrate Machine
  • Automatic Paste Filling Seaming Integrate Machine
  • Automatic Paste Filling Seaming Integrate Machine
Automatic Paste Filling Seaming Integrate MachineAutomatic Paste Filling Seaming Integrate MachineAutomatic Paste Filling Seaming Integrate Machine

Automatic Paste Filling Seaming Integrate Machine


    Product Code: PP235


    This machine is applicable for packing varies canned paste or high-concentration beverages containing pulp or particles, for instance, tomato paste, chili paste, jam, honey, honey, etc., even for free- fluidity liquid.


Inquire Now
Product Introduction


Application


This machine is applicable for packing varies canned paste or high-concentration beverages containing pulp or particles, for instance, tomato paste, chili paste, jam, honey, honey, etc., even for free- fluidity liquid.


Filling Products

Automatic Inline Piston Filling Machine

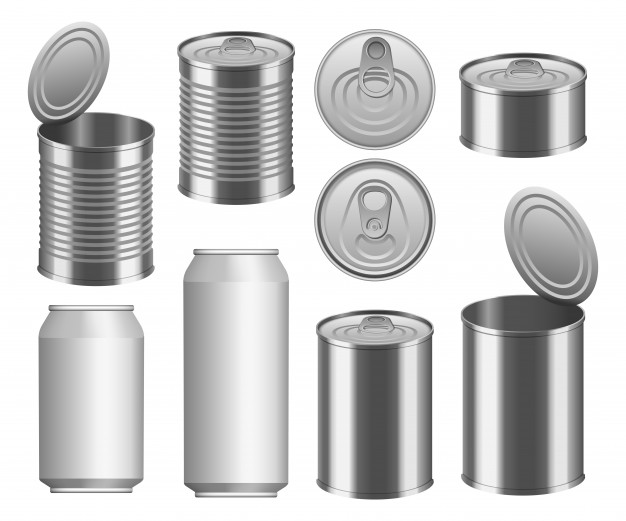

Packing containers

Automatic Paste Filling Seaming Integrate Machine

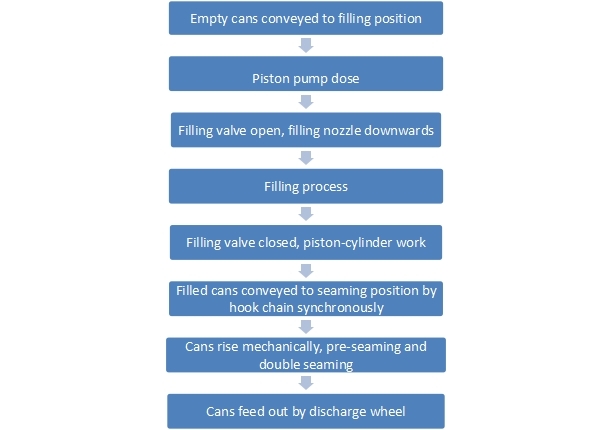

Working Processes


Automatic Paste Filling Seaming Integrate Machine


Features


Standard Features



1) Apply for various sauces (such as ketchup, chili sauce, jam) or high-concentration beverages containing pulp or particles

2) Piston pump filling

3) Automatic products level control

4) Filling and can seaming processes integrated

5) Continuous motion of filling and seaming

6) Automatic cap pre-capping

7) PLC and color touch screen control

8) Frequency converting speed control

9) Complete trouble shooting program with alarm



Optional Features




1) Stainless steel 316 for product touching parts

2) Hot filling Steam injection type vacuuming system

3) Empty cans cleaning, cans conveying, sterilizing, labeling process




Technical Specification


Seaming Heads4
Filling Heads12
Filling Range70-850ml
Packaging Speed80-180 cans/minute (highly related with filling volume)
Can Diameter Range52-99mm
Can Height Range50-160mm
Power SupplyAC 380 V 3P+N+E 50HZ, 5.5KW
Compressing Air Supply1m3/h
Dimension2800×1600×1900mm
WeightApprox. 4000 Kg

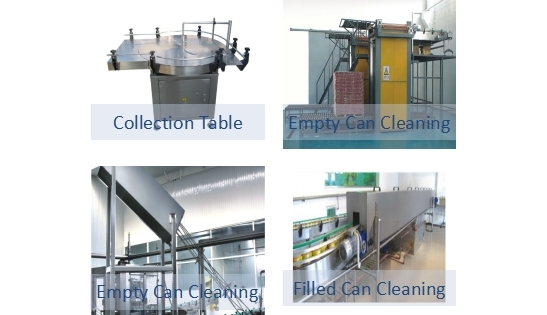

Related Accessories


Automatic Paste Filling Seaming Integrate Machine
