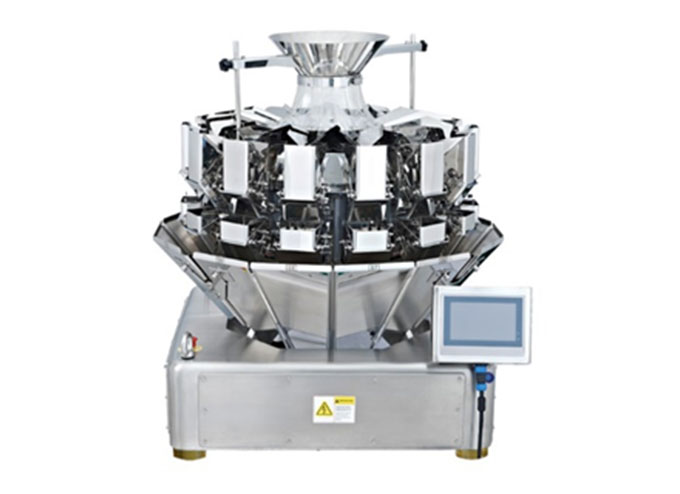

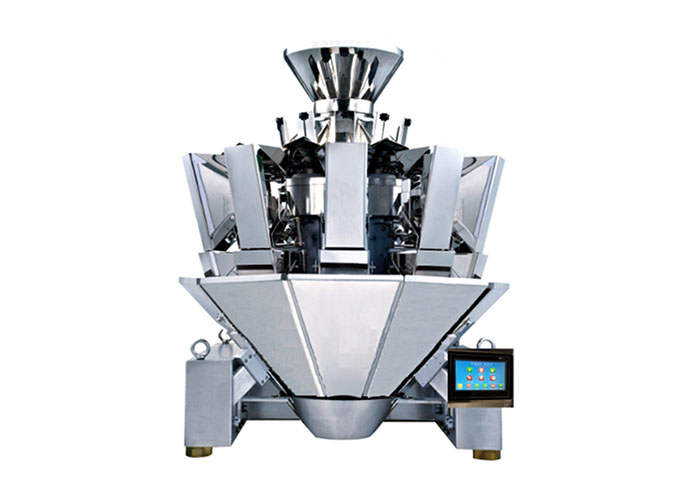

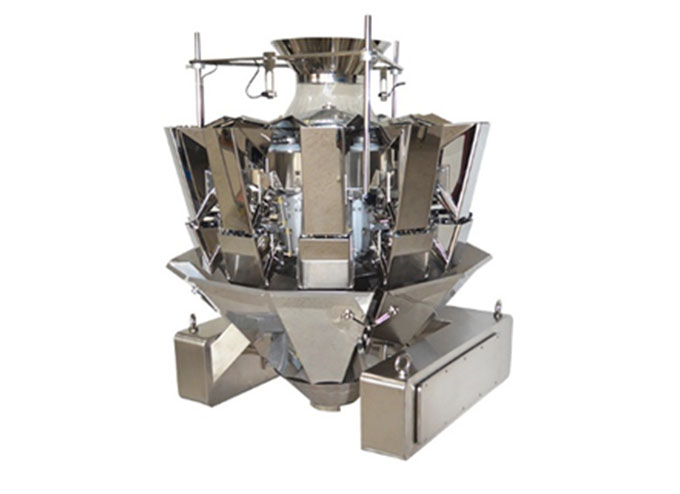

Multi Head Weigher Series
  • Multi Head Weigher Series
  • Multi Head Weigher Series
  • Multi Head Weigher Series
Multi Head Weigher Series Multi Head Weigher Series Multi Head Weigher Series

Multi Head Weigher Series


    Product Code: PP178


    This machine is applicable for weighing of solidity products by way of combination mode, subject to special customization, apply for the products like snacks, meat, poultry, ready meals, salads, confectionery, biscuits, bakery, cereals, nuts, pasta, frozen foods, dried foods, pet foods, and other non-food products

Inquire Now
Product introduction


Application


This machine is applicable for weighing of solidity products by way of combination mode, subject to special customization, apply for the products like snacks, meat, poultry, ready meals, salads, confectionery, biscuits, bakery, cereals, nuts, pasta, frozen foods, dried foods, pet foods, and other non-food products

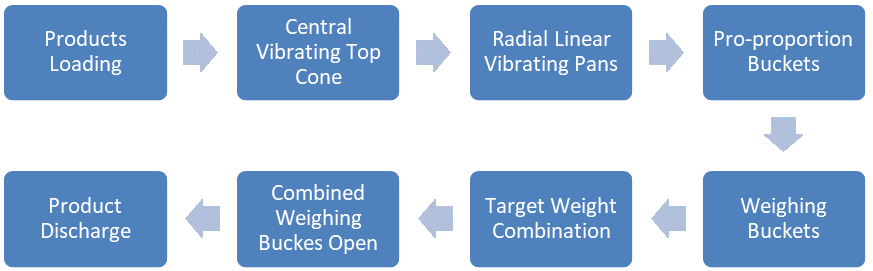

Working Processes



Features

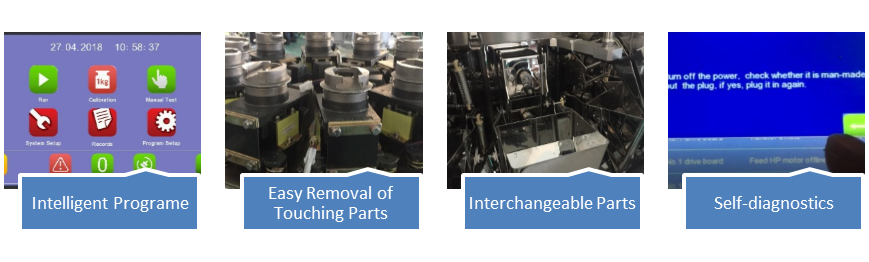

Standard Features


1)Plain stainless steel 304 construction for products touching parts

2)Tool less product touching parts removal for easy cleaning

3)Intelligent parameters setting up through interactive touch screen HMI

4)100 groups of presetting parameter function allow to program different target weight and feeder control condition, quick recall and product setting

5)High precise load cell and modular stepper motor actuator units

6)Individual amplitude adjustment for each linear pan

7)Interchangeable, buckets, modular actuator units, pans or other control boards result from modular design

8)Selt-diagnostics

9)No product no operation interlock

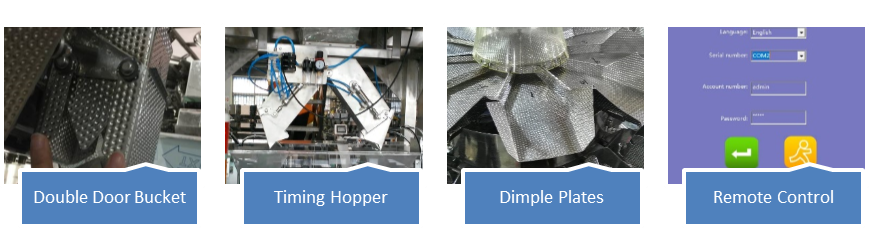

Optional Features


1)Single or double door buckets

2)Rotating & Vibrating top cone

3)Reject system and re-circulate conveyor belt

4)Mixing function

5)Counting function

6)Multi Dump

7)Multi-points discharge

8)Special timing discharge hopper

9)Dimple and/or Stainless steel 316 for product touching parts

10)Remote control through blue tooth, LAN

11)IP 65 construction

12)Short drop discharge hopper for fragile product

Advantages


Technical Specification


Catalogue/4K-xxxx1005140510161116
Pro-proportion Bucket1014
1011
Weigh Bucket10141011
Bucket Open DoorsDouble doorsDouble doorsSingle doorSingle door
Weighing Range-gram5-1005-20010-1,00010-1200
Weighing Accuracy -gram+/- 0.1-1+/- 0.1-1+/- 0.5-2+/- 0.5-2
Weighing Speed -WPM0-600-1200-650-75
Bucket Volume-Liter0.50.51.61.6
Power SupplyAC220 50/60HzAC220 50/60HzAC220 50/60HzAC220 50/60Hz
Power Consumption0.8Kw1.1kw1.0kw1.0kw
Approximate Weight -kg180250400420
Dimension ( ‘mm )1200*980*9851200*980*9801650*1070*11101650*1070*1110


Catalogue/4K-xxxx1416102511251425
Pro-proportion Bucket14101114
Weigh Bucket14101114
Bucket Open DoorsSingle doorDouble doorsDouble doorsDouble doors
Weighing Range-gram10-2,00010-1,50010-2,00010-3,000
Weighing Accuracy -gram+/- 0.5-2+/- 0.5-2+/- 0.5-2+/- 0.5-2
Weighing Speed -WPM0-1200-550-650-100
Bucket Volume-Liter1.62.52.52.5
Power SupplyAC220 50/60HzAC220 50/60HzAC220 50/60HzAC220 50/60Hz
Power Consumption1.4 Kw1.0 kw1.1 Kw1.4 Kw
Approximate Weight -kg500420450550
Dimension ( ‘mm )1720*1100*11301650*1070*11101650*1070*11101720*1100*1130


Catalogue/4K-xxxx10501450
Pro-proportion Bucket1014
Weigh Bucket1014
Bucket Open DoorsDouble doorsDouble doors
Weighing Range-gram10-3,00010-5,000
Weighing Accuracy -gram+/- 1-5+/- 1-5
Weighing Speed -WPM0-400-70
Bucket Volume-Liter5.05.0
Power SupplyAC220 50/60HzAC220 50/60Hz
Power Consumption1.5 kw2.0 Kw
Approximate Weight -kg580650
Dimension ( ‘mm )1950*1280*17002195*1380*1810


Note:

1)The weighing range refer to single dump

2)Weighing speed are estimated, final results determined by product shape, density, target weight and flow characteristic

3)Product density determines the maximum weighing per dump

4)Accuracy is subject to product piece size, density, and consistent head pressure, target weight, weighing speed and other conditions
