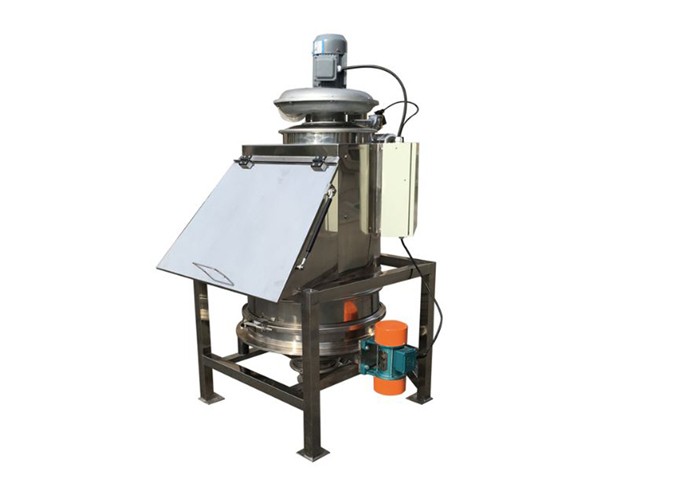

Powder Granulate Batch Dispenser Series


    Product Code: PP285


    This machine is applicable for powder or granulate products batch dispensing.

    The machine configured a dust collecting sub-system with Polyester filter to control the dust when batch dispensing.


Inquire Now
Product Introduction



Application


This machine is applicable for powder or granulate products batch dispensing.

The machine configured a dust collecting sub-system with Polyester filter to control the dust when batch dispensing.

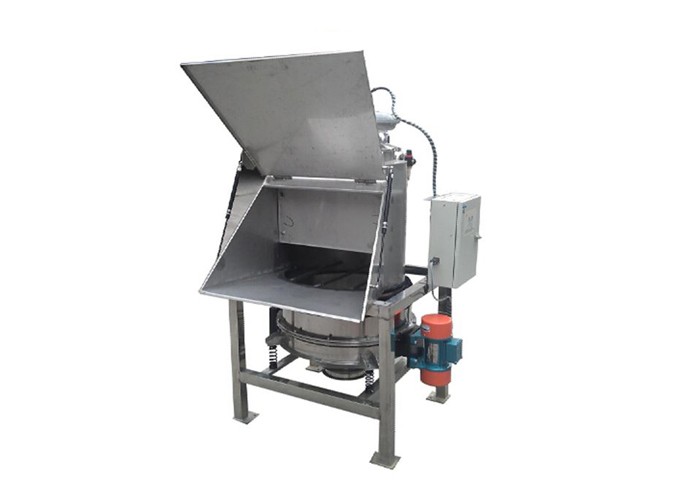

Powder Granulate Batch Dispenser Series



Features


Standard Features



1)         Apply for powder or granulate products batch dispensing

2)         Mainly constructed with stainless steel 304

3)         Dust collecting sub-system with Polyester filter

4)         Automatic dust blowing sub-system for filter

5)         Vibrating impurity screening sub-system

6)         Customized discharge outlet

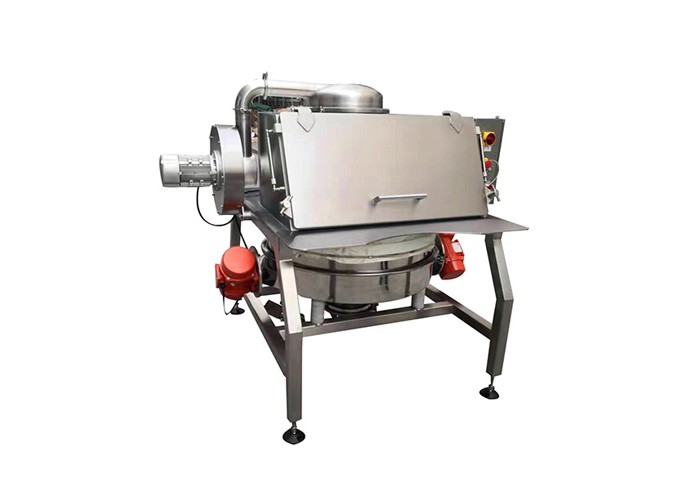

Powder Granulate Batch Dispenser Series


Optional Features



1)         Heavy duty design with rigid stainless steel 304

2)         Stainless steel 304 filter


Advantages


Powder Granulate Batch Dispenser Series

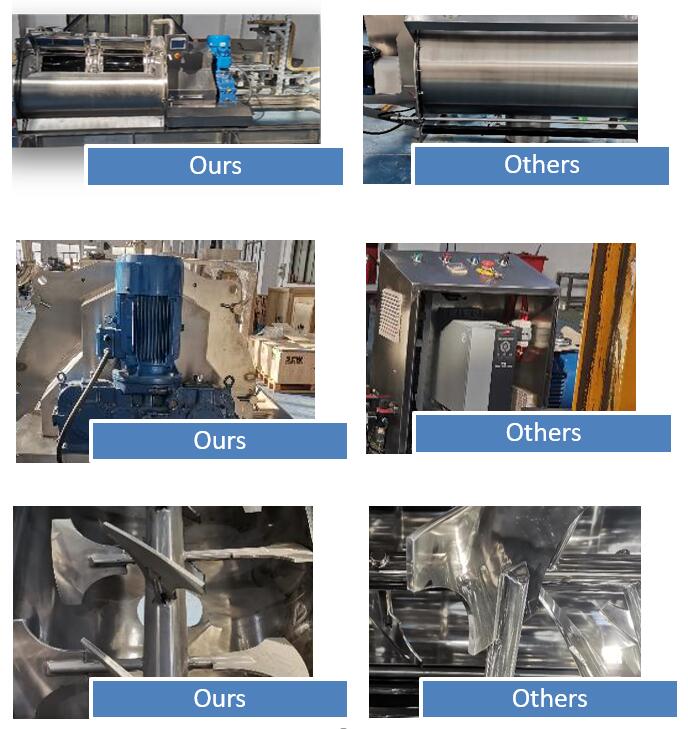

Detailed picture for ours and others comparisons

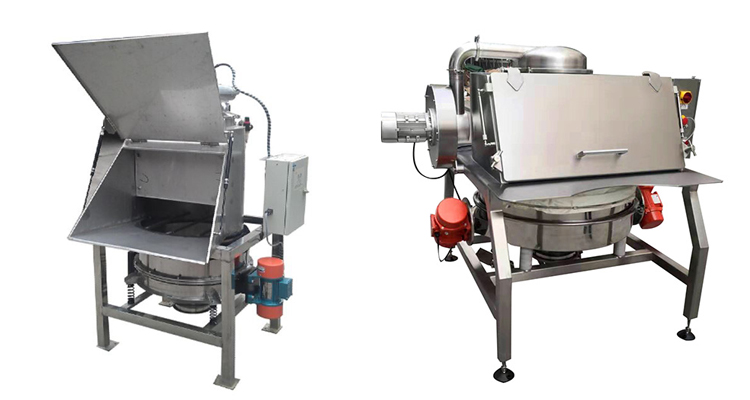

Powder Granulate Batch Dispenser Series


Technical Specification


Type3V-TLZ-15B-TD-1
Diameter650mm1000mm
Mesh of Screening   10mesh, 5*5mm or 10*10mm12 mesh
Discharge Outlet51,63 or 76mm51,63 or 76mm
Power Supply380V, 3Phase, 1.25kw380V, 3Phase, 2.0kw
Air Supply20   Liter/Minute,0.4-0.6Mpa20 Liter/Minute,0.4-0.6Mpa



Proven Projects

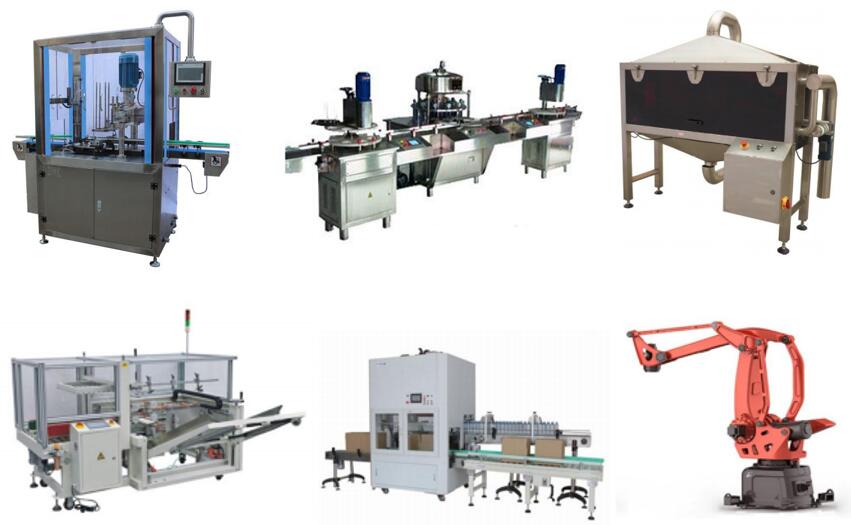

In order to form a production line, the corresponding filling, sealing machines are necessary accessories.


Powder Granulate Batch Dispenser Series
