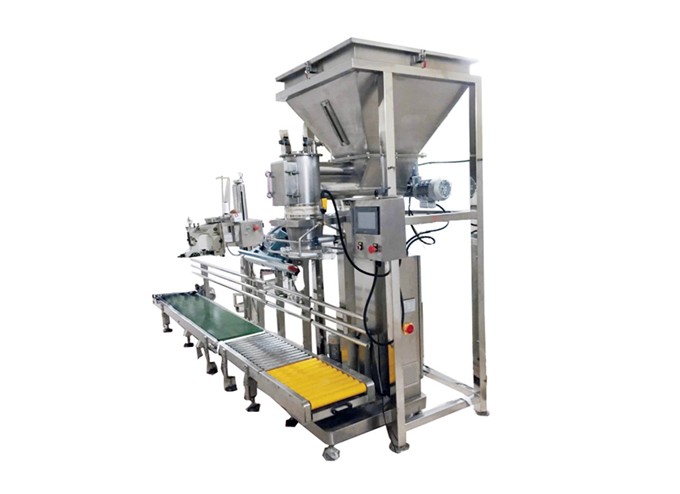

Semi-Auto Dual Screws Powder Weighing and Filling Machine
  • Semi-Auto Dual Screws Powder Weighing and Filling Machine
Semi-Auto Dual Screws Powder Weighing and Filling Machine

Semi-Auto Dual Screws Powder Weighing and Filling Machine


    Product Code: PP190


    This machine is applicable for widely range of powder product in form of bag, to achieve full process work of material feeding weighing, filling, sealing, sawing and packed products delivering


Inquire Now
Product Introduction



Application


This machine is applicable for widely range of powder product in form of bag, to achieve full process work of material feeding weighing, filling, sealing, sawing and packed products delivering, the detail application description as following:


IssueApplication Description
Applicable ProductsWidely used for food, medicine,chemical, building material and other industrial. Packing material Such as milk powder, coffee, dextrose, flour, starch, cereals, solid beverage and so on.
Applicable ContainersVarious types of premade bag


Semi-Auto Dual Screws Powder Weighing and Filling Machine



Features


Standard Features



1) Apply for widely range of powder feeding, weighing, and filling

2) Stainless Steel 304 construction for machine main body and products touching parts

3) PLC &Touch screen HMI control

4) Automatic bag taring feature

5) Double screw feeder configuration enables high filling speed and accuracy

6) Configure calibration program with code, especially helpful for weight calibration for machine long-term no use

7) Weight self-checking and calibration device to control the tolerance, alarming for over-tolerance

8) Whole machine easy to clean, screw auger could be drawn out directly and cleaned separately

9) Pneumatic bag clamming design, release operators’ hands

10) Roller conveyor configuration bears large quantity filling, high reliability for heavy filling



Optional Features



• Dust collecting device

• Discharge conveyor

• Bag sealing or sewing device

• Other powder characteristic adaption accessories


Advantages


Compare with others, this machine is more focusing on the details, and these details determine the performance, with its advantage as following



a) Double auger feeding, faster speed for material loading

b) Height adjustable to adapt different bag design and size

c) Auger changeable enable different product dosing and filling

d) Less dusty by bag clamped on the filling nozzle

e) Weighing checking sensor configured on the bag clips, more accuracy for weighing


Technical Specification


Type1C1-P
Filling Range 5-50 KG
Filling Accuracy<= ±0.2%(subject to the characteristic of material)
Filling Speed<= 3 bags/min
Power Supply380VAC 3P+N+E 50 Hz 2.0 kw
Compress Air Consumption0.1 m3/min
Approximate Weight300 KG
Dimension1400×1600×2500mm

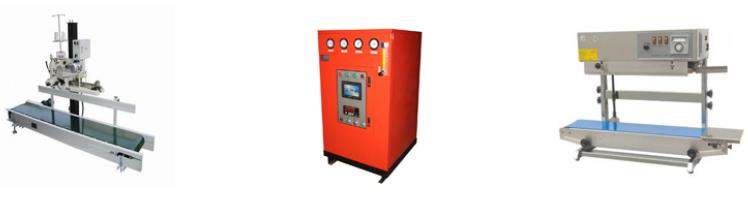

Related Accessories


In order to form a production line, the corresponding sealing or sewing machines are necessary accessories

Semi-Auto Dual Screws Powder Weighing and Filling Machine

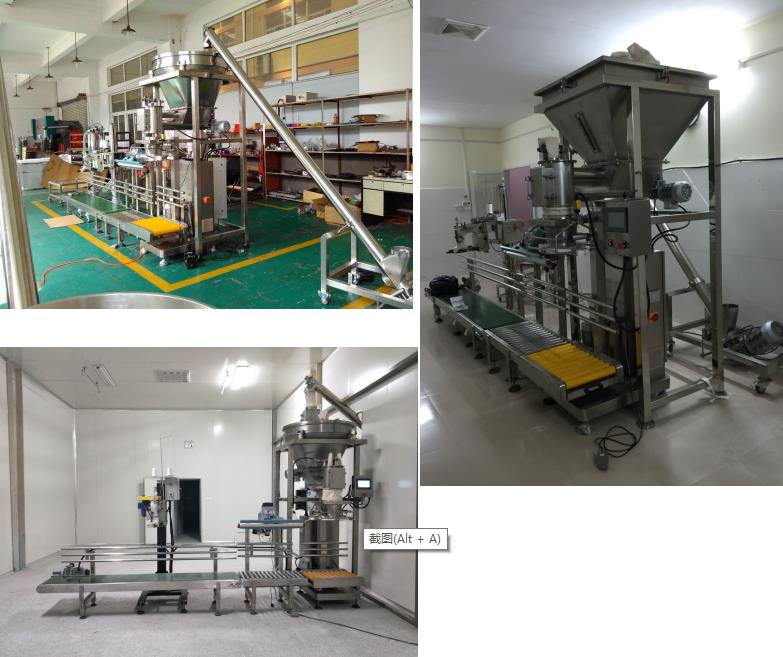

Proven Projects


This pouch packaging machine, running at hundreds of proven projects, stable operating under excellent performance


Semi-Auto Dual Screws Powder Weighing and Filling Machine



Cases
