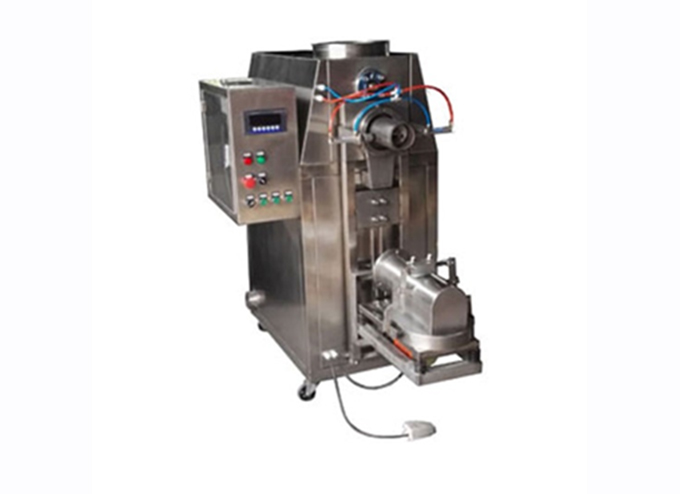

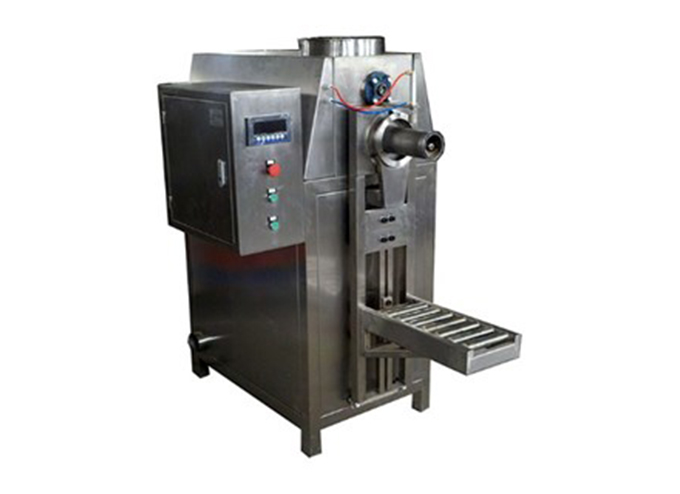

Auger Type Valve Bag Filling Machine Series


    Product Code:PP220


    This machine is applicable for valve bag fill with various type of powders or small granule, which may apply with different accessories to adapt the different characteristic


    For example, potato flour, sand bagging, cement, building materials, dry mortar, food, pet food, agriculture, chemical, mineral, detergent applications. Ranging from fine powder to granulated material.

Inquire Now
Product introduction


Application


This machine is applicable for valve bag fill with various type of powders or small granule, which may apply with different accessories to adapt the different characteristic


For example, potato flour, sand bagging, cement, building materials, dry mortar, food, pet food, agriculture, chemical, mineral, detergent applications. Ranging from fine powder to granulated material.


Working Processes

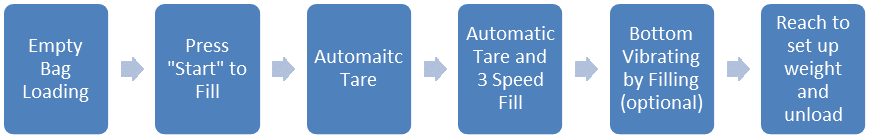

The working processes process diagram:



Features

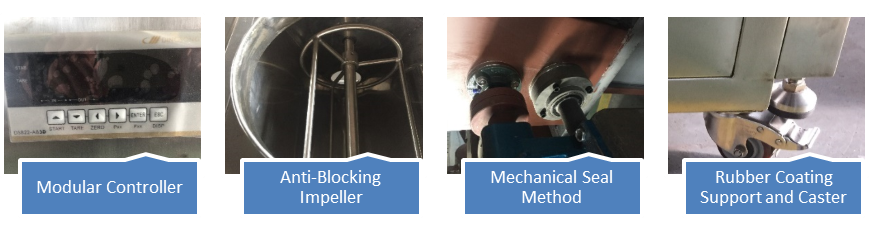

Standard Features


1)Apply for valve bag screw fill with powder by way of weighing measurement

2)Painted frame for motors mounting

3)Stainless steel 304 for surface and product touching parts

4)Rubber coating support and casters

5)High precise load cell and high-performance processor

6)Adjustable filling speed by control of frequency convertor

7)Dust collecting interface

8)Anti-blocking impeller infeed interface

9)Height adjustable bag support

10)Modular controller with simple setting for different batch

11)3 stages of filling speed setting, faster and better accuracy

12)Intelligent automatic tare, zero setting and simple initial weight calibration

13)Mechanical screw end seal design, no powder leak to bearing

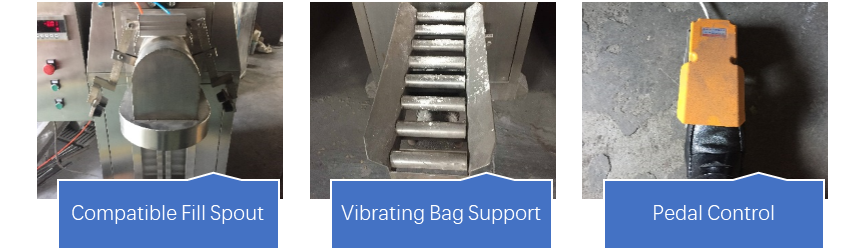

Optional Features


1)Bottom Vibrating bag support

2)Open mouth bag compatible filling nozzle

3)Automatic discharge of the filled bag

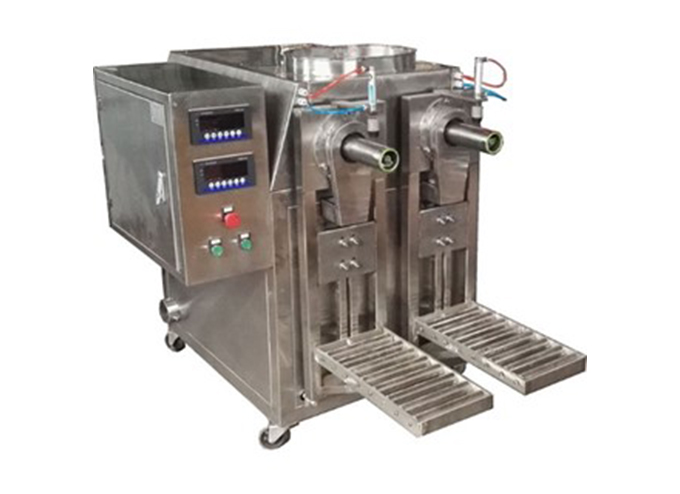

4)Twins model

5)Pedal Control



Advantages


Practically, the advantages as indicated as following:


1)Modular controller with simplest setting

2)Anti-blocking impeller design for the infeed position

3)Mechanical sealing method for screw end

4)3 Speed filling stages, faster and accurate



Technical Specification


Type 3U-xxxVB-50VB-50D
Filling Range10-50kg10-50kg
Filling Speed1-5 bags/minute2-10 bags/minute
Filling Accuracy+/-0.1-0.5%+/-0.1-0.5%
Filling Spout12
Diameter of Filling Spout60,76,89mm60,76,89mm
Length of Filling Spout212mm212mm
Height of Bag300-1,000mm300-1,000mm
Power Supply380V, 3Phase, 50HZ380V, 3Phase, 50HZ
Power Consumption5kw10kw
Air Supply0.4-0.6Mpa , 0.1m3/min0.4-0.6Mpa , 0.15 m3/min
Dimension1500*850*1450mm1500*1600*1450mm
Weight300kg600kg


Note:


1)The filling speed subject to the density, diameter of filling spout, accuracy requirement , and flowing characteristic

2)The filling accuracy subject to filling speed, flowing characteristic, infeed method and size of bag
