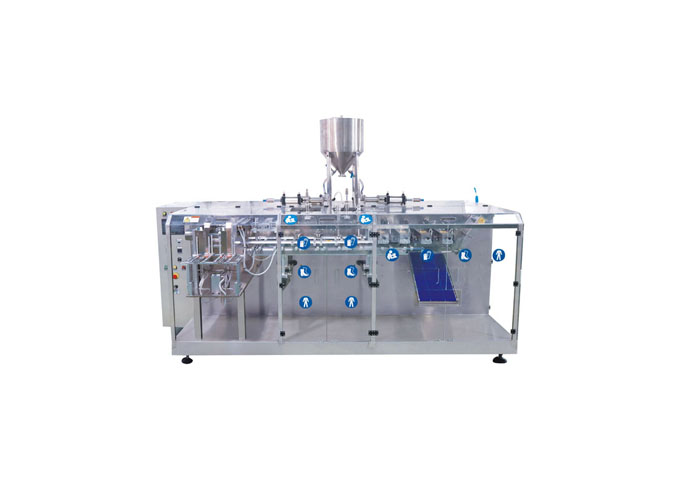

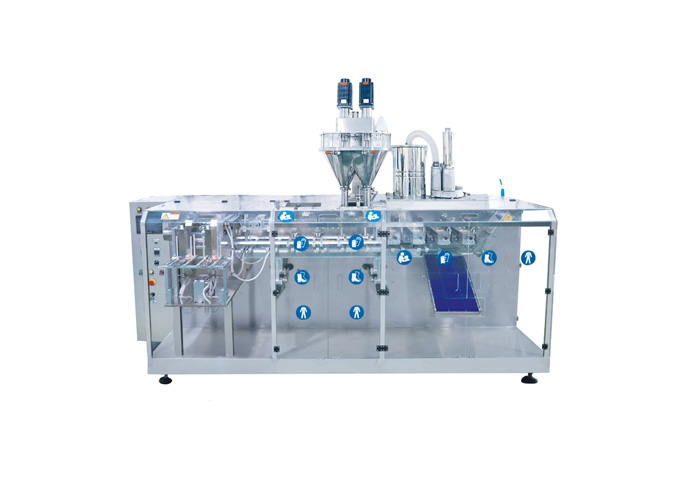

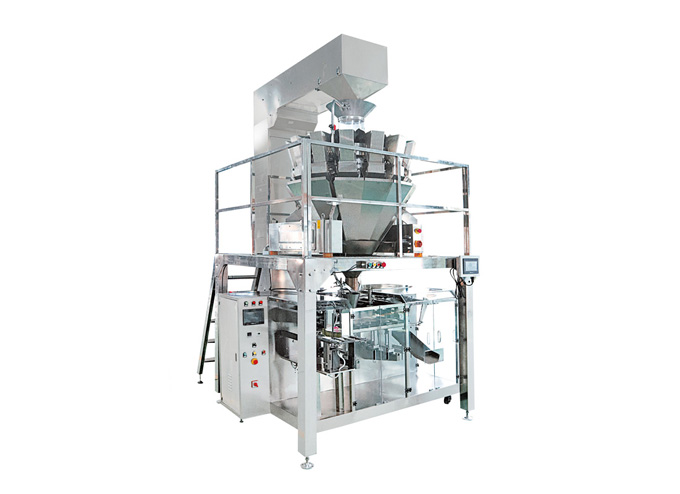

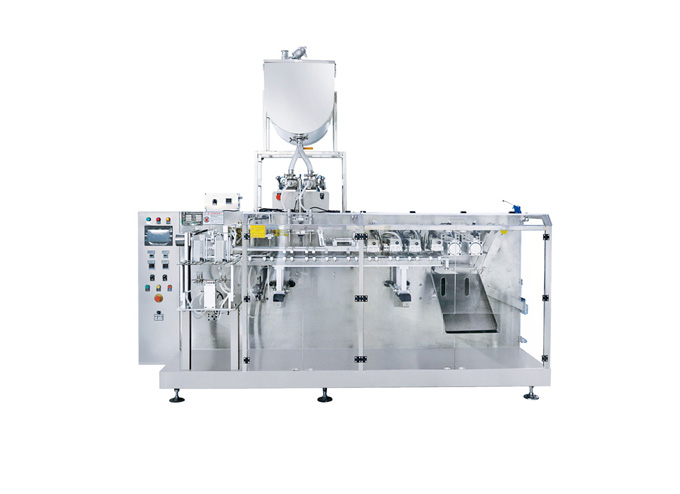

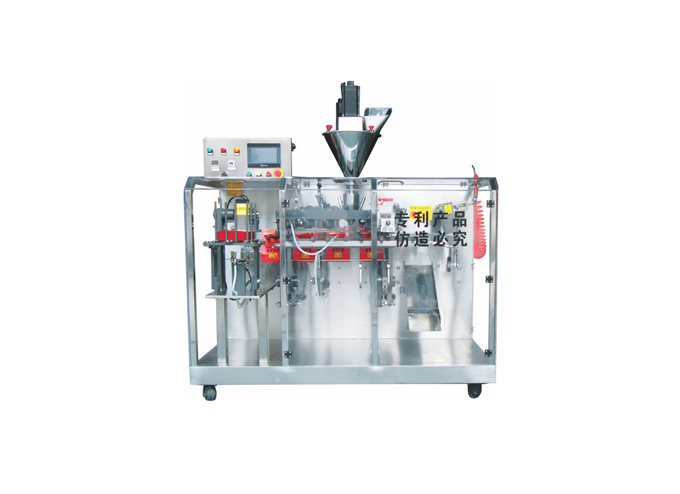

Horizontal Type Premade Pouch Packaging Machine-Compact Series
  • Horizontal Type Premade Pouch Packaging Machine-Compact Series
  • Horizontal Type Premade Pouch Packaging Machine-Compact Series
  • Horizontal Type Premade Pouch Packaging Machine-Compact Series
  • Horizontal Type Premade Pouch Packaging Machine-Compact Series
  • Horizontal Type Premade Pouch Packaging Machine-Compact Series
Horizontal Type Premade Pouch Packaging Machine-Compact SeriesHorizontal Type Premade Pouch Packaging Machine-Compact SeriesHorizontal Type Premade Pouch Packaging Machine-Compact SeriesHorizontal Type Premade Pouch Packaging Machine-Compact SeriesHorizontal Type Premade Pouch Packaging Machine-Compact Series

Horizontal Type Premade Pouch Packaging Machine-Compact Series


    Product Code: PP289


    This machine is applicable for subject to configure with different dosing device , filling with power, granule or liquid into premade pouch and sealing.


Inquire Now
Product Introduction


Application


This machine is applicable for subject to configure with different dosing device , filling with power, granule or liquid into premade pouch and sealing , the detail application description as following table :


IssueApplication Description
Applicable PouchPre-made stand up pouch, flat pouch, 4 sides sealed pouch, spout pouch, other irregular shaped flat or stand up pouches, with/without zipper etc
Applicable ProductsConfigure with different dosing devices, capable to pack with liquid, powder or granule etc.
Applicable PackagingMaterialLaminate Heat sealable packing films


Working Processes

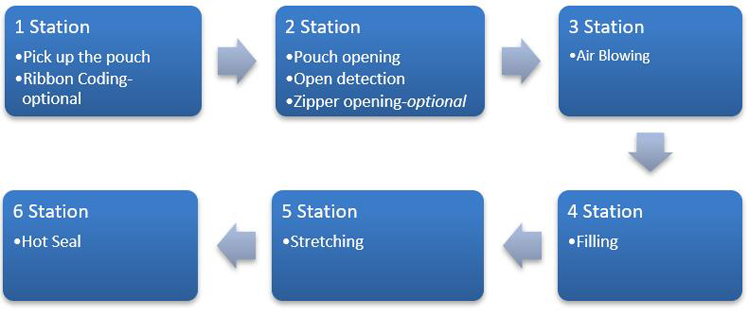

Following are the typical working process diagram:

Horizontal Type Premade Pouch Packaging Machine-Compact Series

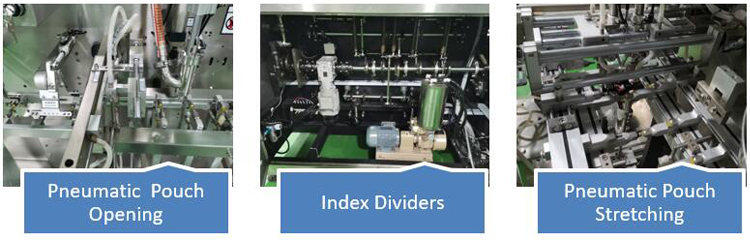

Features


Standard Features


1) Apply for premade flat or stand up pouch fill and seal as the standard, with zipper as the option

2) Rigid carbon steel structure, Stainless steel 304 for surface and product touching parts

3) Anodic oxidation and/or harden aluminum for main movement beam and pouch holding bars

4) PLC and touch screen control

5) Intelligent PID temperature controller

6) Frequency converting motor and mechanical combined driven

7) Discharge chute as the standard, conveyor as the option

8) Configure with different dosing device for different type of products


Horizontal Type Premade Pouch Packaging Machine-Compact Series


Optional Features


1) Horizontal type pouch magazine

2) Zipper opening

3) Ribbon or other type of coding

4) Multiple fills or seals


Technical Specification


Type 1G-xxxx4Q-1604Q-2104Q-2604Q-320
Packaging Speed20-50 pouches/min20-50 pouches/min20-45 pouches/min20-35 pouches/min
Lanes1 Pouch/cycle1 Pouches/cycle1 Pouches/cycle1 Pouches/cycle
Vertical Sealing Station1111
Pouch Size-Length100-250mm110-320mm110-360mm140-380mm
Pouch Size-Width60-160 mm100-210 mm120-260 mm160-320 mm
Main DrivenFrequency Converting MotorFrequency Converting MotorFrequency Converting MotorFrequency Converting Motor
Power Consumption2.0 kw2.5 kw3.0 kw3.3 kw
Power RequirementAC 380V 50/60HZAC 380V 50/60HZAC 380V 50/60HZAC 380V 50/60HZ
Applicable pouchPremade flat or stand up pouchPremade flat or stand up pouchPremade flat or stand up pouchPremade flat or stand up pouch



Type 1G-xxxx4Q-160R4Q-85RS4Q-110S4Q-140S
Packaging Speed20-35 pouches/min40-70 pouches/min40-80 pouches/min40-80 pouches/min
Lanes1 Pouch/cycle2 Pouches/cycle2 Pouches/cycle2 Pouches/cycle
Pouch Size-LengthTBATBA100-230mm110-230mm
Pouch Size-WidthTBATBA70-110 mm90-140 mm
Main DrivenFrequency Converting MotorFrequency Converting MotorFrequency Converting MotorFrequency Converting Motor
Power Consumption2.0 kw2.5 kw3.0 kw3.3 kw
Power RequirementAC 380V 50/60HZAC 380V 50/60HZAC 380V 50/60HZAC 380V 50/60HZ
Applicable pouchIrregular Shaped Premade flat or stand up pouchIrregular Shaped Premade flat or stand up pouchPremade flat or stand up pouchPremade flat or stand up pouch



Related Link


Following is the related video link on our YouTube site.


Horizontal Ziplock Pouch Form Fill Seal Machine Series
