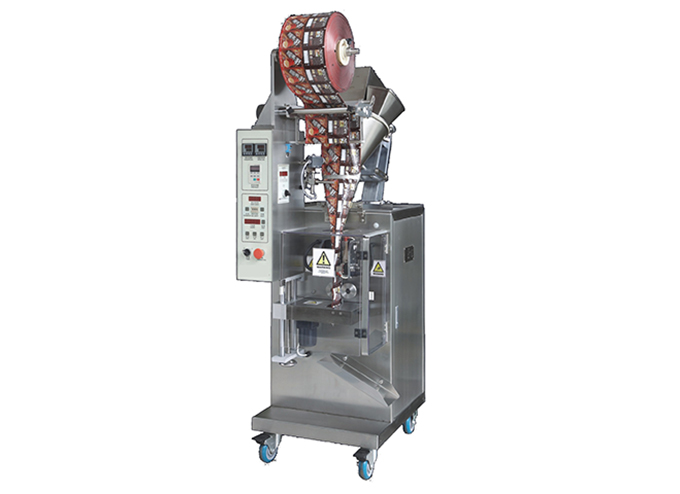

Intermittent Motion Automatic Sachet Packaging Machine Series
  • Intermittent Motion Automatic Sachet Packaging Machine Series
  • Intermittent Motion Automatic Sachet Packaging Machine Series
  • Intermittent Motion Automatic Sachet Packaging Machine Series
  • Intermittent Motion Automatic Sachet Packaging Machine Series
  • Intermittent Motion Automatic Sachet Packaging Machine Series
  • Intermittent Motion Automatic Sachet Packaging Machine Series
  • Intermittent Motion Automatic Sachet Packaging Machine Series
Intermittent Motion Automatic Sachet Packaging Machine SeriesIntermittent Motion Automatic Sachet Packaging Machine SeriesIntermittent Motion Automatic Sachet Packaging Machine SeriesIntermittent Motion Automatic Sachet Packaging Machine SeriesIntermittent Motion Automatic Sachet Packaging Machine SeriesIntermittent Motion Automatic Sachet Packaging Machine SeriesIntermittent Motion Automatic Sachet Packaging Machine Series

Intermittent Motion Automatic Sachet Packaging Machine Series


    Product Code : PP118


    This machine is applicable for dosing powder, granule or liquid even tablet and sealing in form of stick and sachet, with 3, 4 sides or back sealing, or different patterns of sealing, and different styles of cutting

Inquire Now
Product Introduction


Application


This machine is applicable for dosing powder, granule or liquid even tablet and sealing in form of stick and sachet, with 3, 4 sides or back sealing, or different patterns of sealing, and different styles of cutting, the detail application description as following table


IssueApplication Description
Applicable Sachets

One of the following scenarios can be selected for one machine:

1)  3 sides sealing

2)  4 sides sealing

3)  Back sealing

Applicable Products

Configure with different dosing devices, capable to pack with liquid, powder or granule even tablet

Applicable Packaging

MaterialLaminate Heat sealable packing materials such as OPP/PE, BOPP/OPP/PE, PET/AL etc.

Following are the reference style of sachets



Working Processes

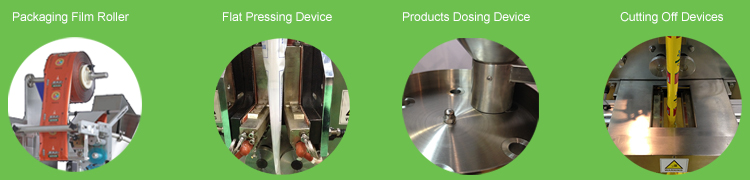

The working processes include: The machine pull laminate packaging film to the flat press sealing devices for horizontal and vertical sealing, in the meanwhile, the dosing device dose the product into the sachet with one side open, then will do the last side sealing and cutting off. Upon the different products, we need to configure specific dosing device. Following are the typical working process diagram:

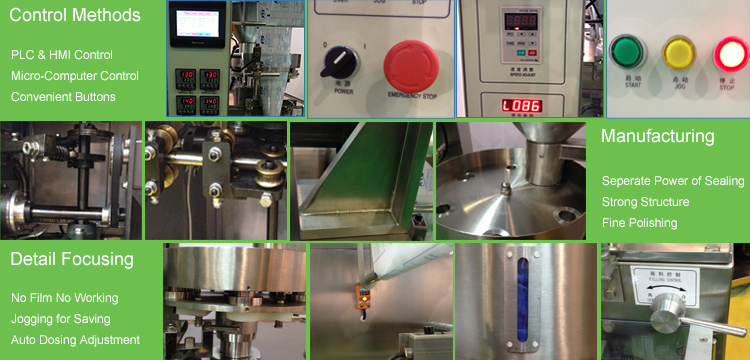

Features


Standard Features



•     Sachet form fill and seal

•     Micro-computer or PLC & HMI Control

•     Frequency converting motorizing

•     Separate power of cutting off

•     Automatic filling volume adjustment

•     PID Intelligent temperature controller

•     Door open machine stop interlock

•     No film machine stop interlock



Optional Features



•     Stick form fill seal

•     Sealing style customization

•     Chain sachet / stick

•     Tear notch

•     Batch data coding

•     Double lanes



Advantages

ž

ž   Frequency motorizing as the standard , convenient speed and length of sachet / stick adjustment

ž   Separate motor for cutting device, stable cutting preference and position of height is adjustable

ž   Filling volume automatic changing , no manual adjustment

ž   Jogging operation mode



Technical Specification


Catalogue/1S-xxxxxF50E/F50FK50E/K50FL30E/FP50E/F
ApplicationPowderGranuleLiquidTablet
Sachet Size-Length(mm)40-12040-12040-12040-120
Sachet Size-Width(mm)35-8535-8535-8535-85
Filling Volume(gram/ml/Piece)1-501-501-501-50
Packing Speed(Sachets/min)40-6040-6040-6040-60
Power Consumption(kW)1,451,051,051,15
Approximate Weight(kg)225215175195
Dimension(mm)600*760*1650600*760*1650600*760*1650600*760*1650
Power Requirement(V/Hz)AC220V 50/60HZAC220V 50/60HZAC220V 50/60HZAC220V 50/60HZ
