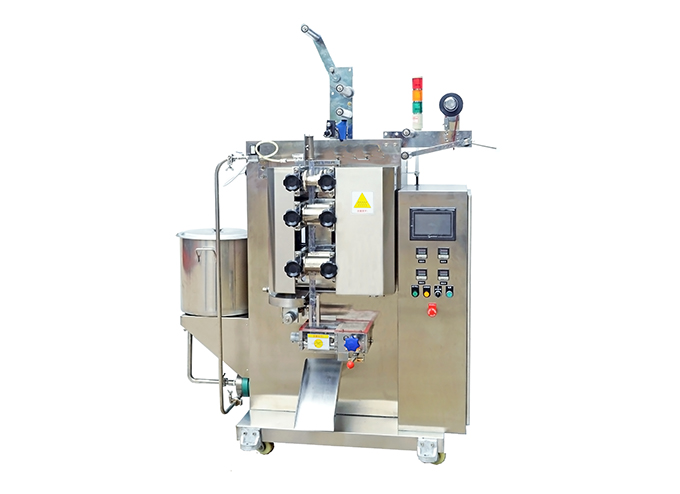

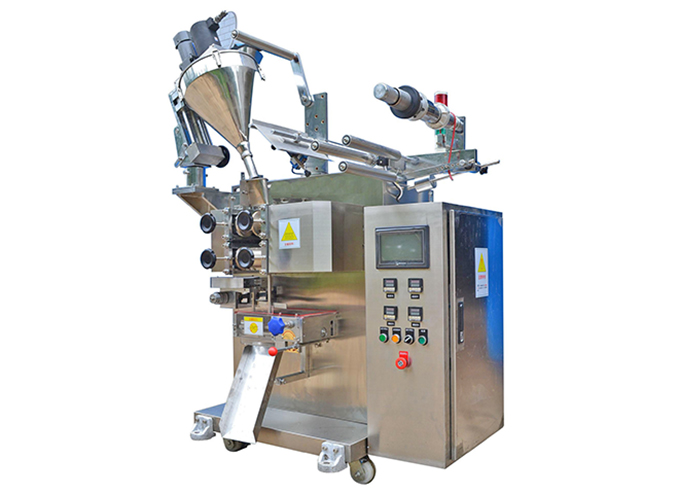

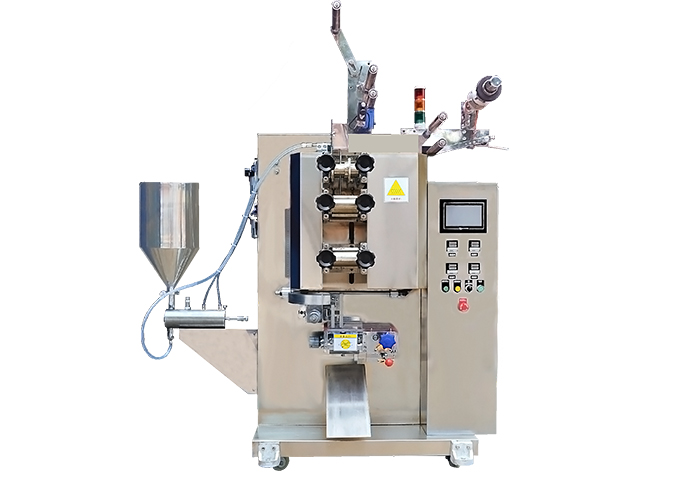

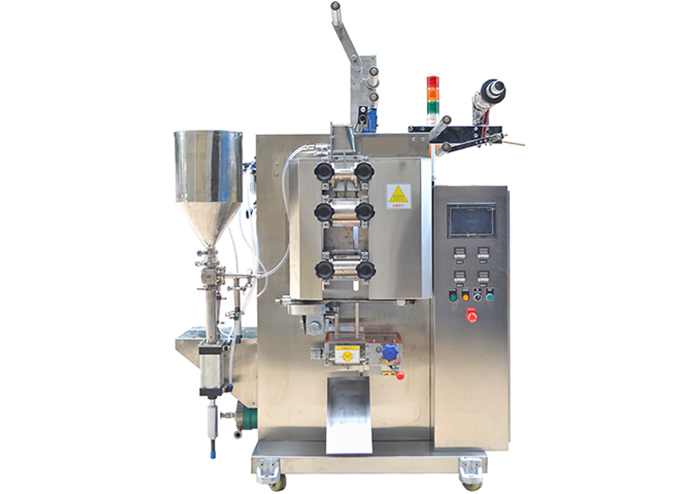

Continuous Motion Automatic Sachet Packaging Machine
  • Continuous Motion Automatic Sachet Packaging Machine
  • Continuous Motion Automatic Sachet Packaging Machine
  • Continuous Motion Automatic Sachet Packaging Machine
  • Continuous Motion Automatic Sachet Packaging Machine
  • Continuous Motion Automatic Sachet Packaging Machine
  • Continuous Motion Automatic Sachet Packaging Machine
Continuous Motion Automatic Sachet Packaging MachineContinuous Motion Automatic Sachet Packaging MachineContinuous Motion Automatic Sachet Packaging MachineContinuous Motion Automatic Sachet Packaging MachineContinuous Motion Automatic Sachet Packaging MachineContinuous Motion Automatic Sachet Packaging Machine

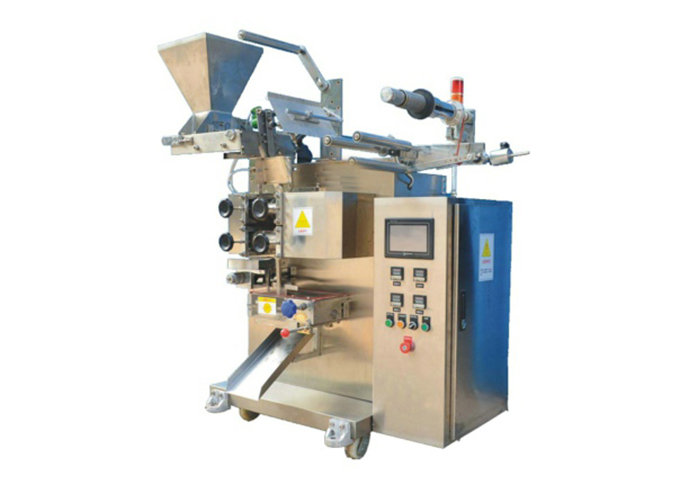

Continuous Motion Automatic Sachet Packaging Machine


    Product Code: PP117


    This machine is applicable for dosing powder, granule or liquid and sealing in form of stick ,sachets, with 3, 4 sides or back sealing, different patterns of sealing, and different styles of cutting

Inquire Now
Product Introduction


Application


This machine is applicable for dosing powder, granule or liquid and sealing in form of stick ,sachets, with 3, 4 sides or back sealing, different patterns of sealing, and different styles of cutting. The detailed application descriptions are as following table:


IssueApplication Description
Applicable Sachet

One of the following scenarios can be selected for one machine:

1)3 or 4 sides sealing

2)Back sealing

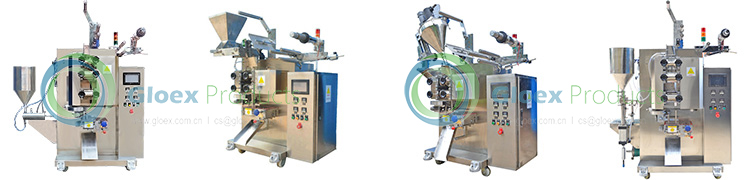

Applicable ProductsConfigure with different dosing devices, capable to pack with liquid, powder or granule
Applicable PackagingMaterialLaminate Heat sealable packing materials such as OPP/PE, BOPP/OPP/PE, PET/AL etc.

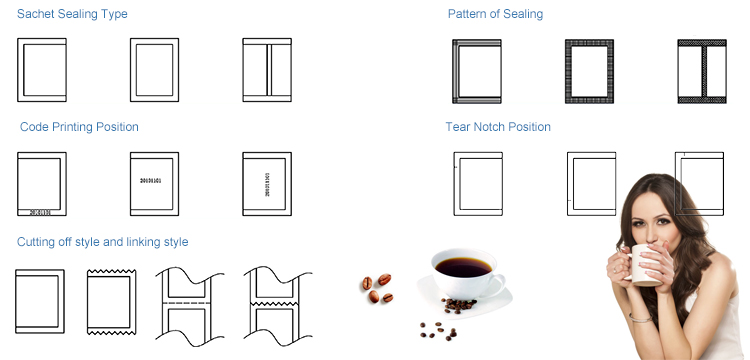

Following are the reference style of sachets



Working Process

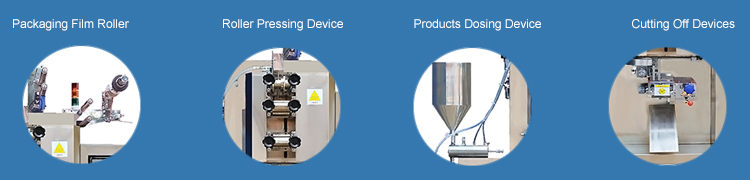

The working processes include: The machine pull laminate packaging film to the roller press sealing devices for horizontal and vertical sealing, in the meanwhile, the dosing device dose the product into the sachet with one side open, then will do the last side sealing and cutting off. Upon the different products, we need to configure specific dosing device. Following are the typical working process diagram:



Features


Standard Features


•     Sachet form fill and seal

•     Stainless steel 304 construction

•     PLC & touch screen HMI Control

•     3 and 4 sides sealing sachet change over without additional components replacement

•     PID Intelligent temperature controlling configuration

•     Double frequency motorizing for horizontal and vertical sealing

•     Anti-leakage line for liquid sachet



Optional Features


•     Stick form fill seal

•     Sealing patterns

•     Single or chain sachet/stick

•     Tear notch

•     Embossing, Ribbon ,Inkjet or other coding method

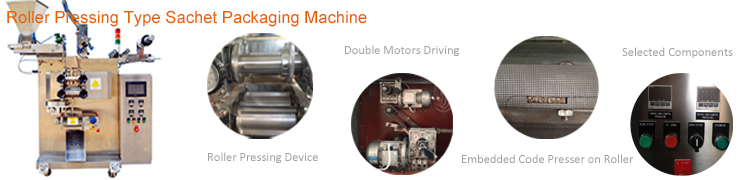

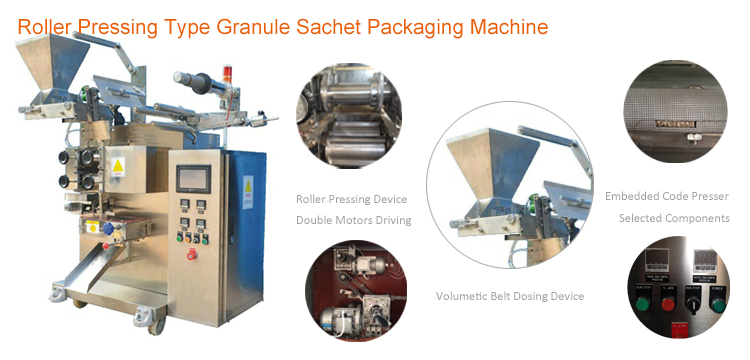

Advantages


     Continuous motion, faster speed

     Double motorizing for horizontal and vertical sealing , stable performance

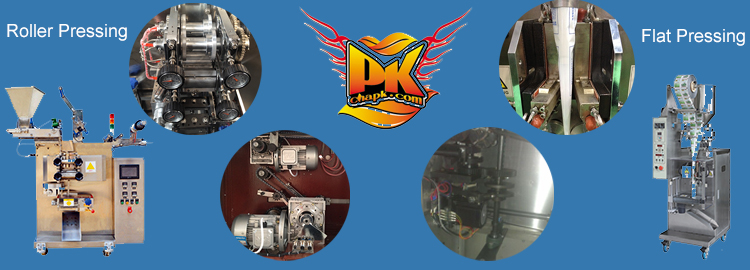

     Roller pressing sealing method , tight sealing quality

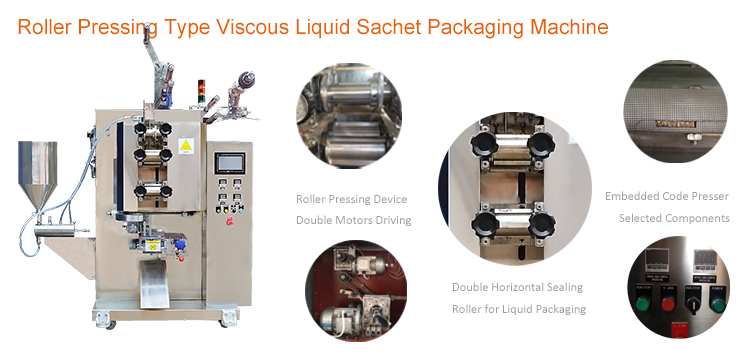

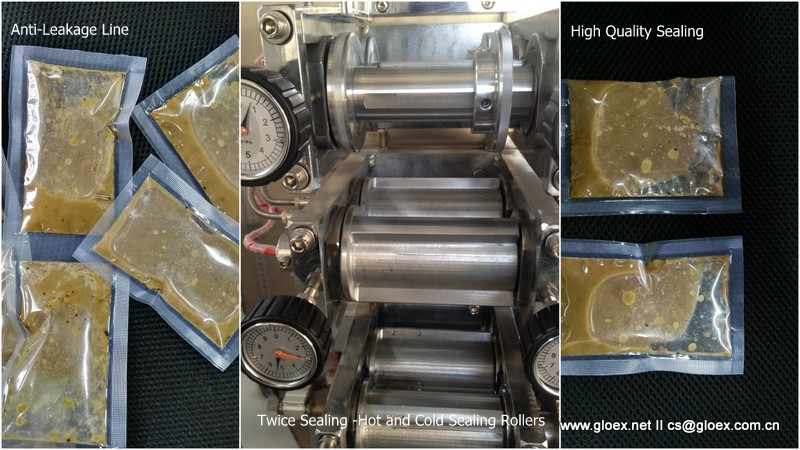

     Hot and cool sealing for liquid sachet, and anti-leakage line design , better sealing reliability



Technical Specification




Catalogue/1M-xxxx11151820
Sachet Size-Length(mm)50-21050-21050-21050-210
Sachet Size-Width(mm)30-11030-15030-18030-200
Filling Volume(gram)1-501-1001-1501-200
Packing Speed (Sachets/min)20-12020-12020-12020-120

Power Requirement

380V 50/60HZ380V 50/60HZ380V 50/60HZ380V 50/60HZ
(Power Consumption(kW)3.8-4.03.8-4.03.8-4.03.8-4.0
Approximate Weight(kg)400-500400-500400-500400-500
Dimension(mm)1)Liquid Sachet Packaging 1400*1000*1800

2)Powder Sachet Packaging 1400*900*1670

3)Granule Sachet Packaging 1400*1000*1670




Related Links


Following is the link of the video playlist on our Youtube site


Continuous Motion Sachet Packaging Machine
