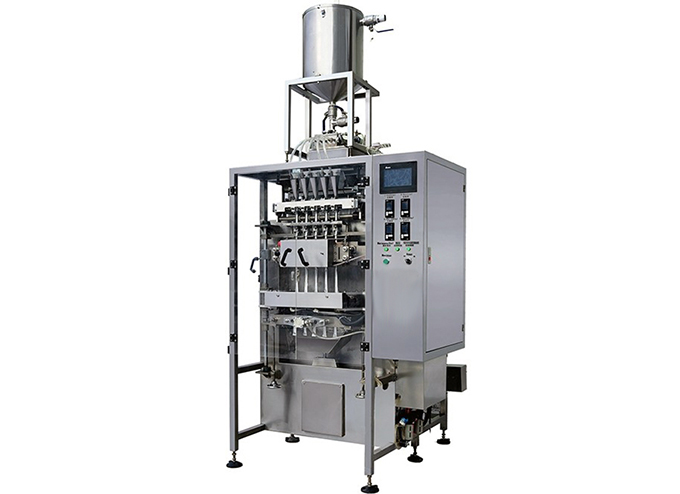

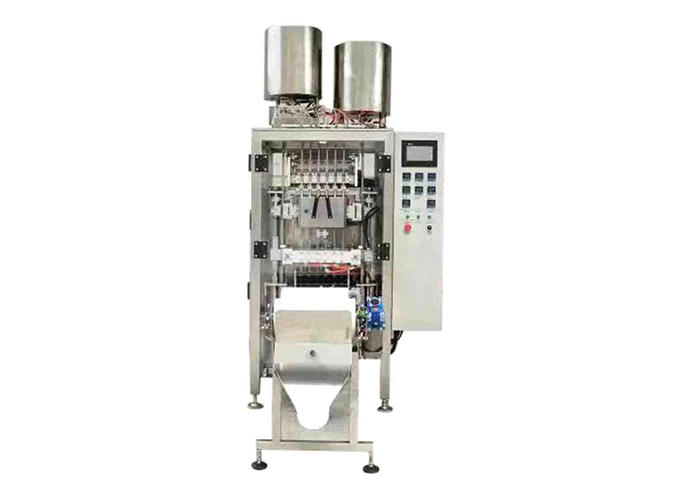

Automatic Multi-Lane Liquid Stick Form Fill Seal Machine
  • Automatic Multi-Lane Liquid Stick Form Fill Seal Machine
  • Automatic Multi-Lane Liquid Stick Form Fill Seal Machine
  • Automatic Multi-Lane Liquid Stick Form Fill Seal Machine
Automatic Multi-Lane Liquid Stick Form Fill Seal Machine Automatic Multi-Lane Liquid Stick Form Fill Seal Machine Automatic Multi-Lane Liquid Stick Form Fill Seal Machine

Automatic Multi-Lane Liquid Stick Form Fill Seal Machine


    Product Code: PP276B


    This machine is applicable for dosing liquid, semi-liquid products and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.


    By configure with different accessories, suitable for food, cosmetic, medicine packing such as ketchup, chocolate, mayonnaise, olive oil, chili sauce, honey, drinks, jelly, medicine, shampoo, cream, lotion etc.


Inquire Now
Product introduction


Application


This machine is applicable for dosing liquid, semi-liquid products and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.


By configure with different accessories, suitable for food, cosmetic, medicine packing such as ketchup, chocolate, mayonnaise, olive oil, chili sauce, honey, drinks, jelly, medicine, shampoo, cream, lotion etc.

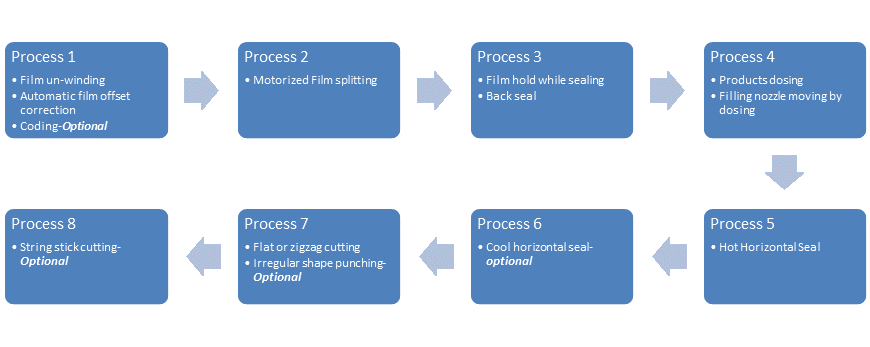

Working Processes


Features

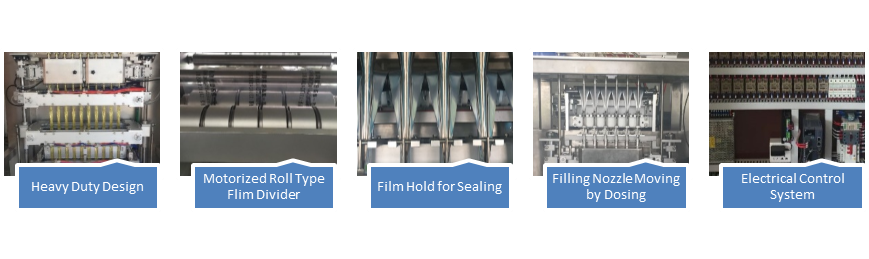

Standard Features


Mainly stainless-steel 304 construction

Stainless-steel 304 for product touching parts

Heavy duty design suits for high speed operation

No waste of film design, no reserved film edge required

Motorized roller type film dividing device

PLC & Touch screen HMI control

Guided servo motorized film pulling device integrated with horizontal seal

Pneumatic piston pumps dosing for each lane with manual dosing range adjustment

•Filling nozzle move up and down by dosing, which synchronize with film pulling and keep the sealing area clean

Visible hopper with openable door

Intelligent PID temperature controller

Door open and machine stop interlock

No packaging film and machine stop interlock

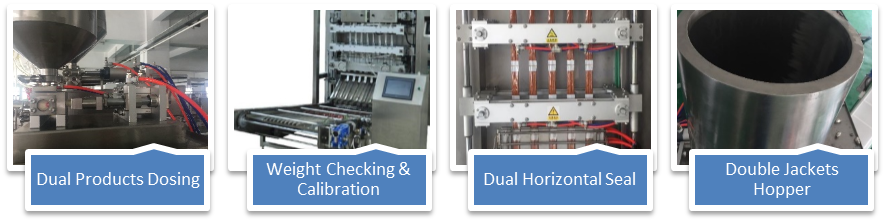

Optional Features


Stainless Steel 316 for product touching parts

Sealing pattern

Flat or Zigzag cutting off

Round and other irregular shape cutting off

String sticks

Tear notch

Embossing, ribbon, inkjet or laser coding

Cool horizontal seal

Dual products dosing with double layer tube

Servo motorized pumps

CIP connectable and/or double jacket heat insulation hopper

Grouping conveyor with/without stick weight checking, rejecting and target weight calibration

Stick counting system

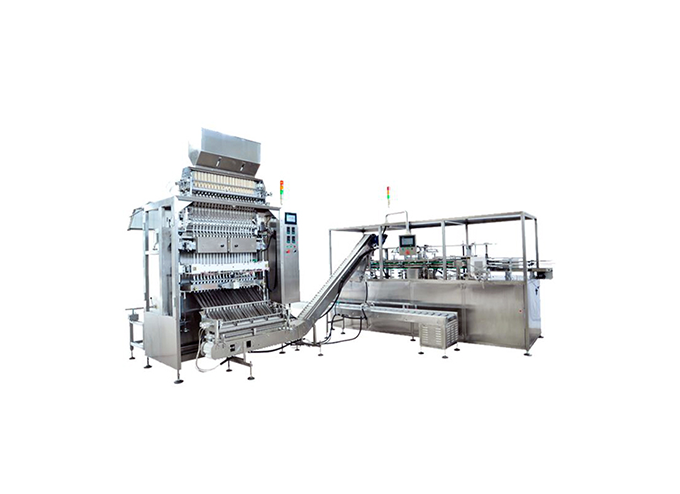

Cartoning or bagging system

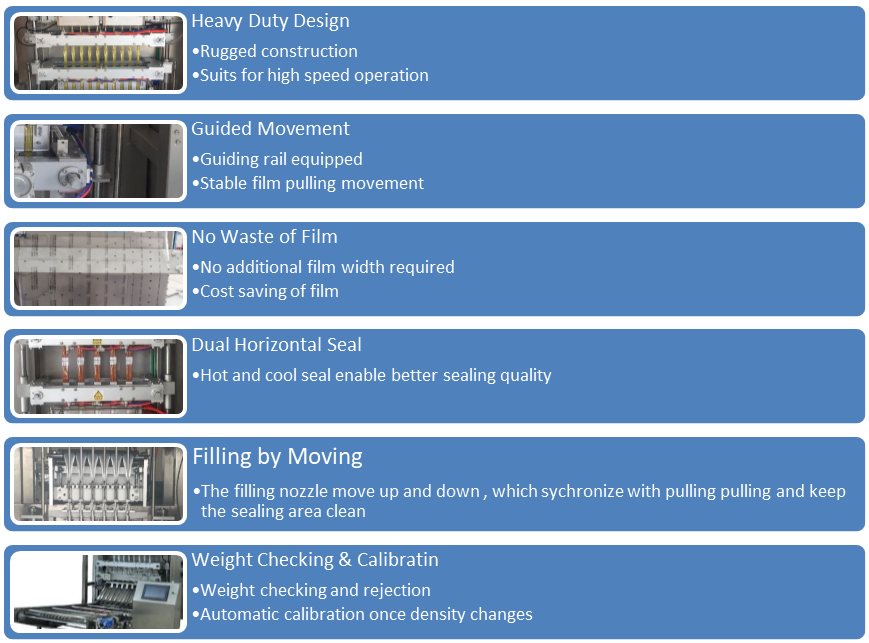

Advantages



Technical Specification


Type 4W-xxx280YB480YB880YB
Dosing MethodPiston pumpsPiston pumpsPiston pumps
Packaging Speed35-45 sticks/min/lane35-45 sticks /min/lane35-45 sticks /min/lane
Max film width280 mm480 mm880 mm
Lanes3-7 lines5-12 lines5-16 lines
Filling Accuracy+/- 1-2%+/- 1-2%+/- 1-2%
Filling Range1-50 ml1-50 ml1-50 ml
App Air Supply0.3 CBM/min, 0.6 Mpa0.4 CBM/min, 0.6 Mpa0.6 CBM/min, 0.6 Mpa
Power Consumption2.7 kw3.3 kw3.6 kw
Power Supply380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz


Note:

1)The speed of packaging subject to the filling volume, size of stick, characteristic of liquid and accuracy requirement

2)The filling accuracy subject to the packaging speed, filling volume and characteristic of liquid
