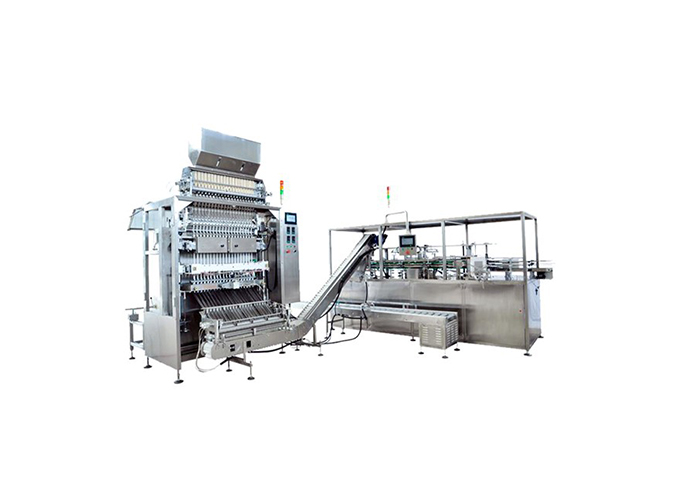

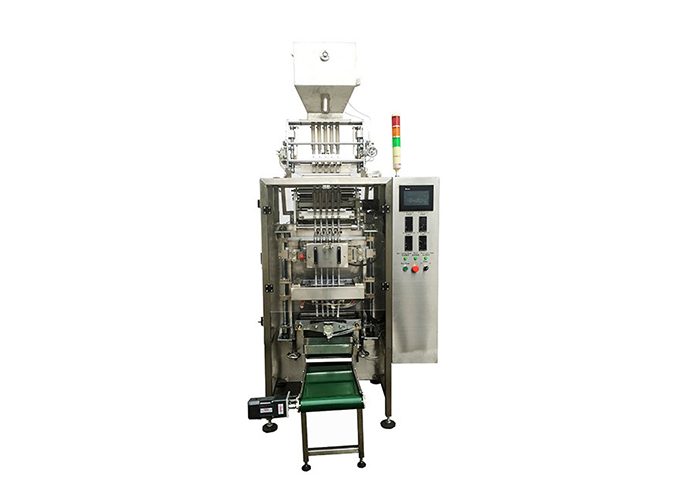

Automatic Multi-Lane Granulate Stick Form Fill Seal Machine
  • Automatic Multi-Lane Granulate Stick Form Fill Seal Machine
  • Automatic Multi-Lane Granulate Stick Form Fill Seal Machine
Automatic Multi-Lane Granulate Stick Form Fill Seal Machine Automatic Multi-Lane Granulate Stick Form Fill Seal Machine

Automatic Multi-Lane Granulate Stick Form Fill Seal Machine


    Product Code: PP276C


    This machine is applicable for dosing granule products and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.


    By configure with different accessories, suitable for food, cosmetic, medicine packing such as sugar, salt, pepper, and all kinds of granule etc.

Inquire Now
Product introduction


Application


This machine is applicable for dosing granule products and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.


By configure with different accessories, suitable for food, cosmetic, medicine packing such as sugar, salt, pepper, and all kinds of granule etc.

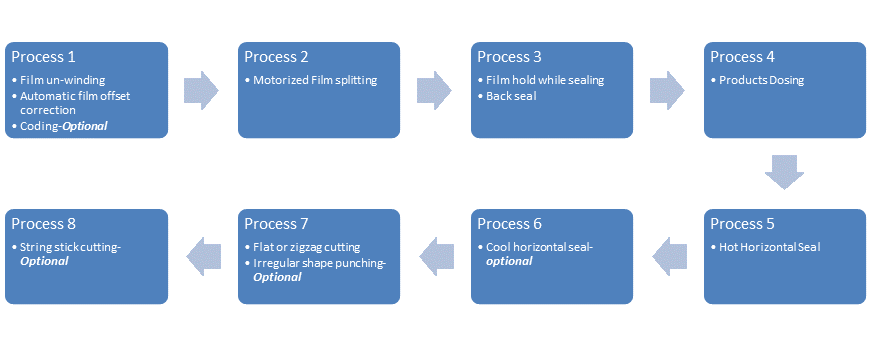

Working Processes

Features

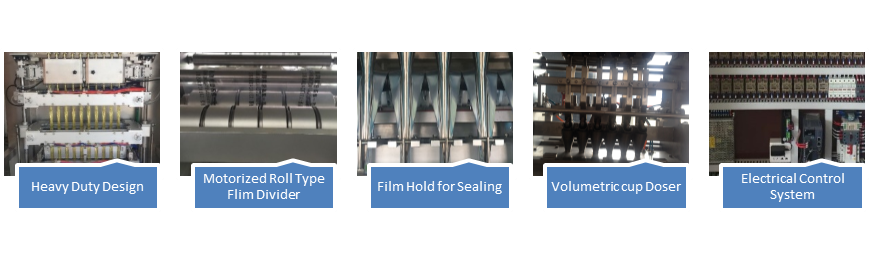

Standard Features


Mainly stainless-steel 304 construction

Stainless-steel 304 for product touching parts

Heavy duty design suits for high speed operation

No waste of film design, no reserved film edge required

Motorized roller type film dividing device

PLC & Touch screen HMI control

Guided servo motorized film pulling device integrated with horizontal seal

Volumetric cup dosing for each lane with manual dosing range adjustment

Product level visible hopper

Intelligent PID temperature controller

Door open and machine stop interlock

No packaging film and machine stop interlock

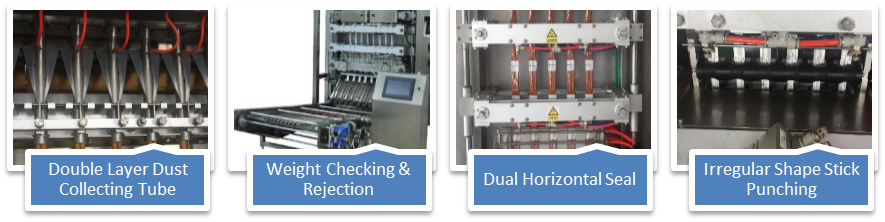

Optional Features


Stainless Steel 316 for product touching parts

Sealing pattern

Flat or Zigzag cutting off

Round and other irregular shape cutting off

String sticks

Tear notch

Embossing, ribbon, inkjet or laser coding

Cool horizontal seal

Grouping conveyor with/without stick weight checking, rejecting

Stick counting system

Cartoning or bagging system

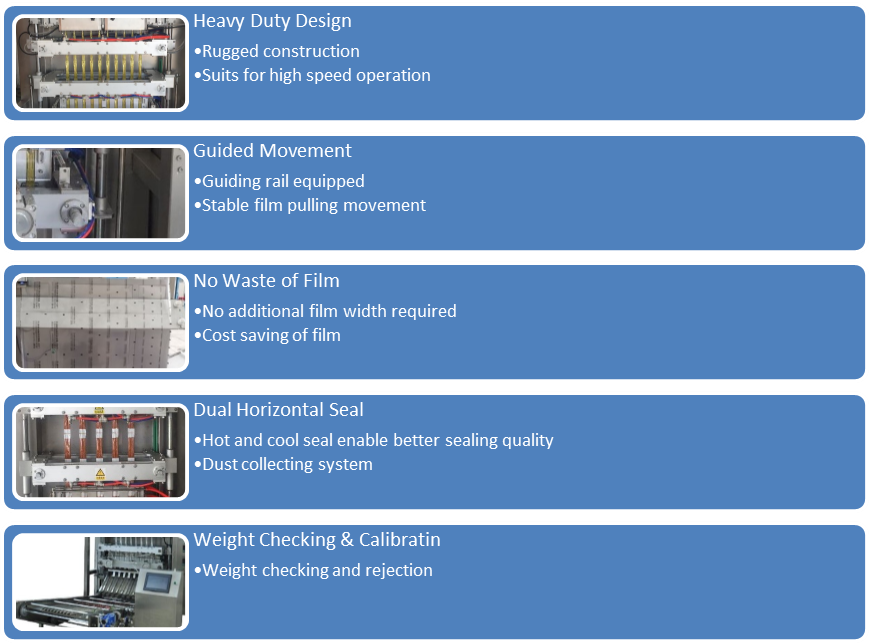

Advantages



Technical Specification


Type 4W-xxx280KB480KB880KB
Dosing MethodVolumetric cupVolumetric cupVolumetric cup
Packaging Speed35-60 sticks/min/lane35-60 sticks/min/lane35-60 sticks/min/lane
Max film width280mm480mm880mm
Lanes3-7 lines5-12 lines5-20 lines
Filling Accuracy+/- 1-2%+/- 1-2%+/- 1-2%
Filling Range1-50 g1-50 g1-50 g
App Air Supply0.3 CBM/min, 0.6 Mpa0.4 CBM/min, 0.6 Mpa0.6 CBM/min, 0.6 Mpa
Powder Consumption2.7 kw3.3 kw4.2 kw
Powder Supply380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz


Note:

1)The speed of packaging subject to the filling range, size of stick, characteristic of granule and accuracy requirement

2)The filling accuracy subject to the packaging speed, filling range and characteristic of granule
