Dual Roll Intermittent Multi Lane 4 Side Sealed Granule Sachet Form Fill Seal Machine Series
  • Dual Roll Intermittent Multi Lane 4 Side Sealed Granule Sachet Form Fill Seal Machine Series
  • Dual Roll Intermittent Multi Lane 4 Side Sealed Granule Sachet Form Fill Seal Machine Series
Dual Roll Intermittent Multi Lane 4 Side Sealed Granule Sachet Form Fill Seal Machine SeriesDual Roll Intermittent Multi Lane 4 Side Sealed Granule Sachet Form Fill Seal Machine Series

Dual Roll Intermittent Multi Lane 4 Side Sealed Granule Sachet Form Fill Seal Machine Series


    Product Code: PP308


    This machine is applicable for dosing  granule and powder , and sealing in form of sachet, with 4 side sealing style, include the sachet forming, product dosing, filling and sachet sealing processes, in different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.


    Suitable for packing dry ice, silicon gel, absorbent material, tech ice etc. Applicable for hot sealable non woven fabric or other laminated film



Inquire Now
Product Introduction


Application


This machine is applicable for dosing  granule and powder , and sealing in form of sachet, with 4 side sealing style, include the sachet forming, product dosing, filling and sachet sealing processes, in different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.

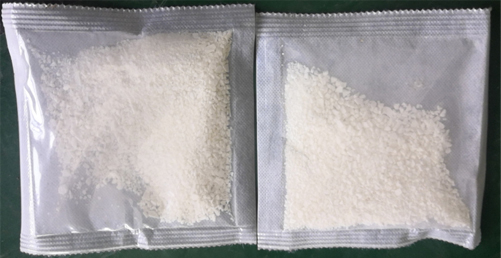

Suitable for packing dry ice, silicon gel, absorbent material, tech ice etc. Applicable for hot sealable non woven fabric or other laminated film


Dual Roll Intermittent Multi Lane 4 Side Sealed Granule Sachet Form Fill Seal Machine Series

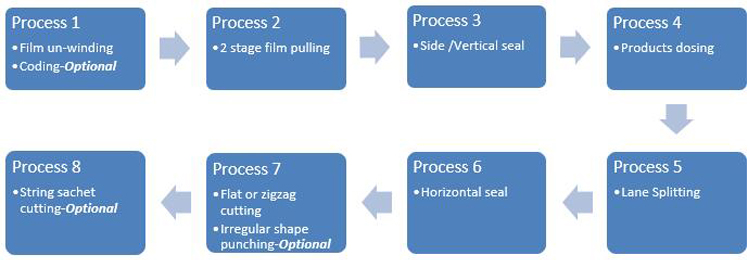

Working Processes


Dual Roll Intermittent Multi Lane 4 Side Sealed Granule Sachet Form Fill Seal Machine Series


Features



Standard Features


1)         Applicable for hot sealable non woven fabric or other laminated film sachet form fill and seal

2)         Mainly stainless-steel 304 construction

3)         Stainless-steel 304 for product touching parts

4)         No waste of film design, no reserved film edge required

5)         PLC & Touch screen HMI control

6)         Volumetric cup dosing for each lane with manual dosing range adjustment

7)         Intelligent PID temperature controller

8)         Door open and machine stop interlock

9)         No packaging film and machine stop interlock

10)       High precise synchronization of 2 film rolls unwinding

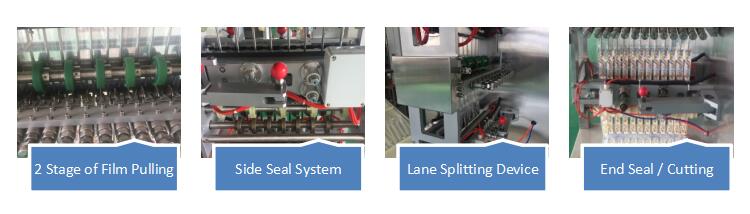

Dual Roll Intermittent Multi Lane 4 Side Sealed Granule Sachet Form Fill Seal Machine Series


Optional Features


1) Stainless Steel 316 for product touching parts

2) Flat or Zigzag cutting off

3) Round and other irregular shape cutting off

4) String sachets

5) Tear notch

6) Embossing, ribbon, inkjet or laser coding

7) Grouping conveyor with/without sachet weight checking, rejecting and target weight calibration

8) Sachet counting system9) Cartoning or bagging system



Technical Specification


Type 4W-xxx480K680K880K1080K
Dosing MethodVolumetric cupsVolumetric cupsVolumetric cupsVolumetric cups
Film Roll2222
Packaging Speed35-45 sachets/min/lane35-45 sachets /min/lane35-45 sachets /min/lane35-45 sachets /min/lane
Max film width<=480 mm<=680 mm<=880 mm<=1080mm
Lanes3-7 lines5-12 lines5-14 lines5-14 lines
Filling Accuracy+/- 1-2%+/- 1-2%+/- 1-2%+/- 1-2%
App Air Supply0.3 CBM/min, 0.6 Mpa0.4 CBM/min, 0.6 Mpa0.6 CBM/min, 0.6 Mpa0.8 CBM/min, 0.6 Mpa
Power Consumption2.7 kw3.3 kw3.6 kw4.2kw
Power Supply380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz



If need more support, please contact us at: cs@gloex.com.cn
