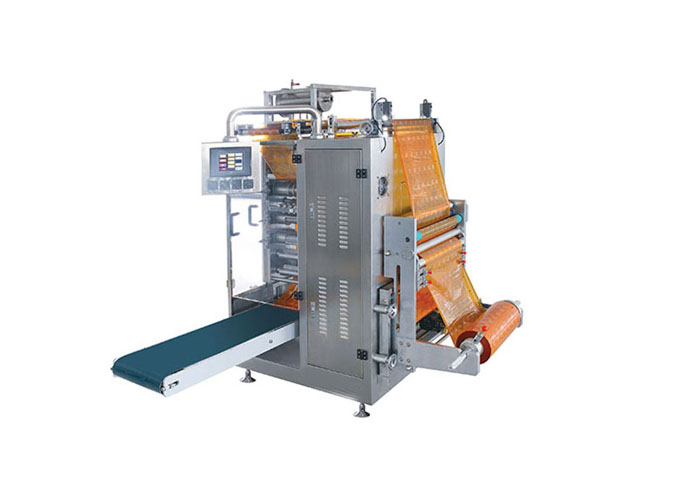

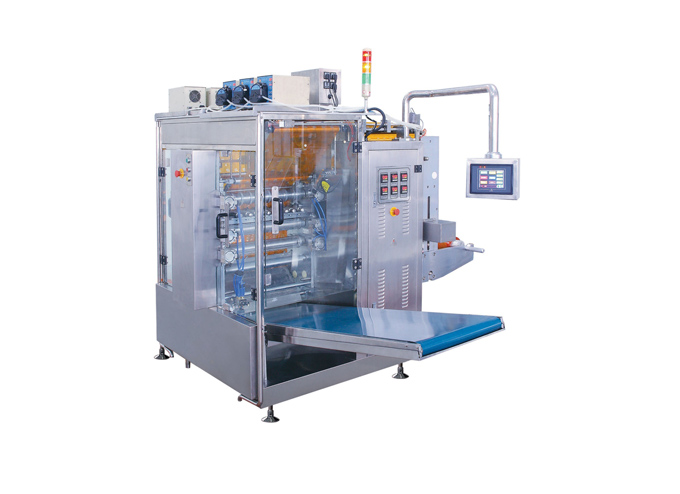

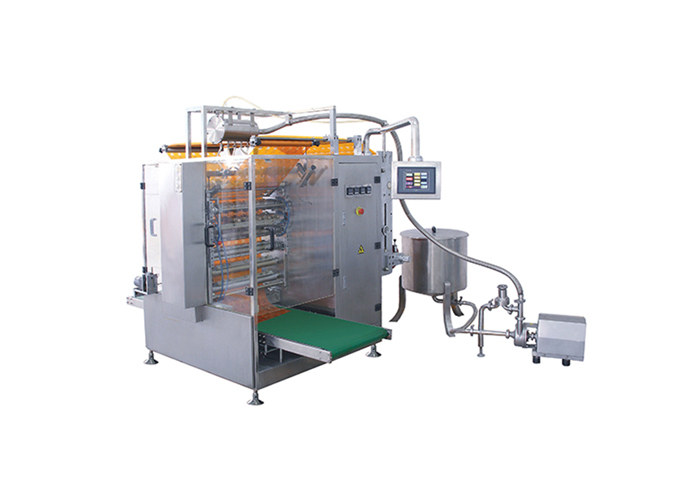

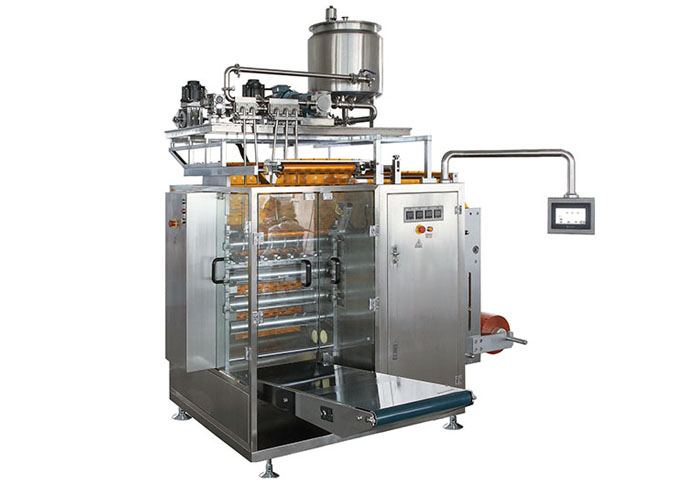

Continuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal Machine
  • Continuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal Machine
  • Continuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal Machine
  • Continuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal Machine
  • Continuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal Machine
Continuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal MachineContinuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal MachineContinuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal MachineContinuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal Machine

Continuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal Machine


    Product Code: PP230B


    This machine is applicable for dosing liquid or semi-liquid and sealing in form of 4 side sealed sachet, include the sachet forming, product dosing, filling and sachet sealing processes, with single cutting or string sachet cutting.

Inquire Now
Product Introduction


Continuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal Machine


Application


This machine is applicable for dosing liquid or semi-liquid and sealing in form of 4 side sealed sachet, include the sachet forming, product dosing, filling and sachet sealing processes, with single cutting or string sachet cutting. the detail application description as following table:



IssueApplication Description
Applicable Sealing Style4 sides sealing
Applicable ProductsConfigure with pump, capable to pack liquid products. (e.g. ketchup, cream, shampoo, mayonnaise, soy sauce, wasabi, honey, mouthwash, salad dressing, cream sample, hand cleaner gel, liquid soap, dishwasher, etc.)
Applicable PackagingMaterialLaminate Heat sealable packing materials such as OPP/PE, BOPP/VMPET/PE, PET/AL/PE etc.


Typical applications:


Continuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal Machine


Working Process


The working processes include: The machine pull laminate packaging film to the film splitting devices, and the film split into specific lanes, then go through the sealing mold to seal longitudinal side and first horizontal side, in the meanwhile, the dosing device dose the product into the sachet through the open side, then will do the last side sealing and cutting off. Upon the different product.
Continuous Motion Multi-Lane 4-Side Sealed Liquid Sachet Form Fill Seal Machine


Continuous Motion Multi-Lane 4-Side Sealed Powder Sachet Form Fill Seal Machine

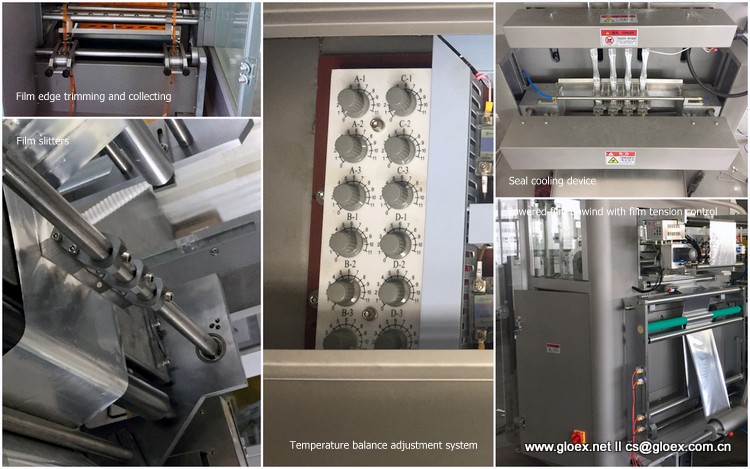

Features


Standard Features



•   Specific liquid or semi-liquid dosing device configuration

•   PLC & HMI Touch Screen Control

•   Intelligent PID temperature controller

•   3 heating section design with temperature balance adjustment system

•   Servo motorized sub-processes

•   Automatic sachet length adjustment

•   Film edge trimming and collecting

•   Embossing type coder integrated

•   Out-feed conveyor

•   Powered film unwinding with film tension control

•   Automatic film centering control

•   Stainless steel 316 construction for product touching parts and 304 for other main parts

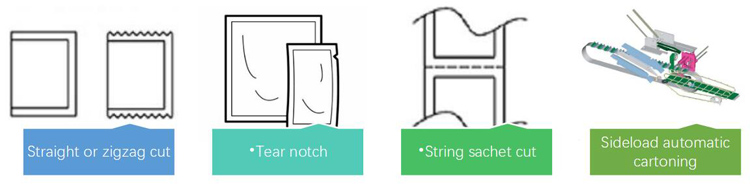

Optional Features




•   Multi-lane servo piston pump filler for viscous liquid

•   Centrifugal pump with solenoid valve for normal liquid

•   Peristaltic pump for corrosive liquid or micro dosage

•   Straight or zigzag cut

•   Tear notch

•   Inkjet, or thermal transfer printer

•   String sachet cut

•   Empty sachet detection and rejection

•   Double jackets hopper

•   Dual products dosing

•   Static elimination

•   In-feed system

•   Sideload automatic cartoning solutions


Continuous Motion Multi-Lane 4-Side Sealed Powder Sachet Form Fill Seal Machine


Technical Specification


Catalogue/3Z-xxx-E5009001200
Sachet Size-Length(mm)50-30050-30050-300
Sachet Size-Width(mm)32-10532-10532-105
LanesCustomizeCustomizeCustomize
Film Width(mm)5009001200
Packing Speed(CPM)30-6030-6030-60
Power RequirementAC380 3P/50HZ AC380 3P/50HZAC380 3P/50HZ
Power Consumption(kW)101215
Max Outer Diameter of Film Roll (mm)300300300
Inner Diameter of Film Roll (mm)757575


Continuous Motion Multi-Lane 4-Side Sealed Powder Sachet Form Fill Seal Machine


Related Links



Following is the link of video playlist on our Youtube site


Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine
