Rotary Type Vacuum Tin Can Sealing Machine
  • Rotary Type Vacuum Tin Can Sealing Machine
  • Rotary Type Vacuum Tin Can Sealing Machine
  • Rotary Type Vacuum Tin Can Sealing Machine
  • Rotary Type Vacuum Tin Can Sealing Machine
Rotary Type Vacuum Tin Can Sealing MachineRotary Type Vacuum Tin Can Sealing MachineRotary Type Vacuum Tin Can Sealing MachineRotary Type Vacuum Tin Can Sealing Machine

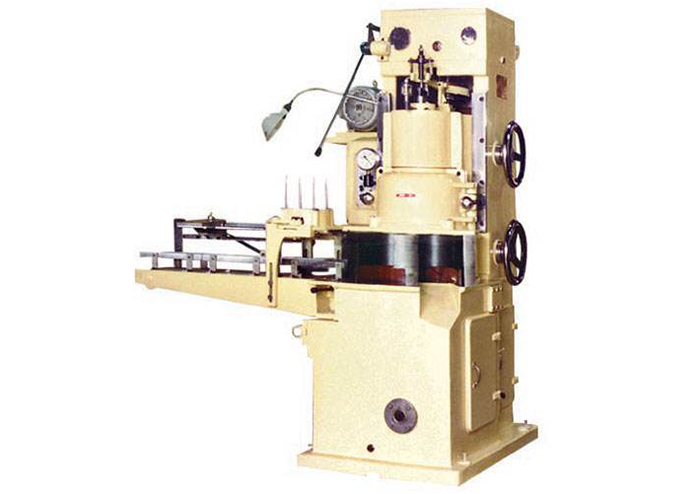

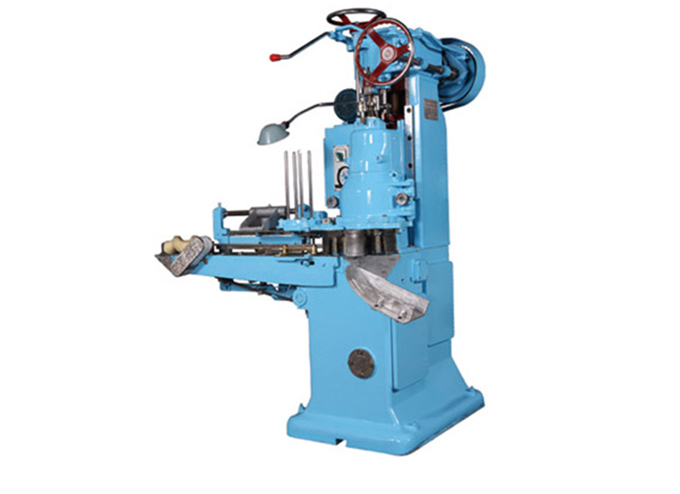

Rotary Type Vacuum Tin Can Sealing Machine


    Product Code: PP170


    This machine is applicable for sealing the can with vacuuming or without vacuuming processes, apply for the cans which are made of aluminum, tinplate , PET, or paper and the other kinds of can

Inquire Now
Product Introduction


Application


This machine is applicable for sealing the can with vacuuming or without vacuuming processes, apply for the cans which are made of aluminum, tinplate , PET, or paper and the other kinds of can, the detail application description as following table:


IssueApplication Description

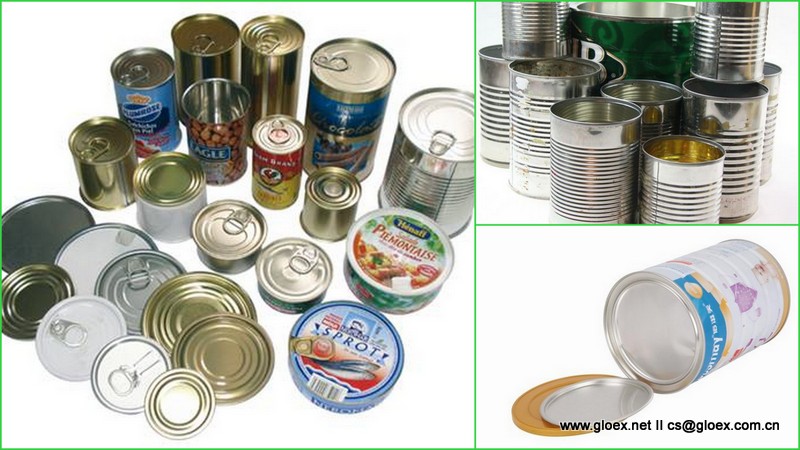

Applicable Containers

Round shape can as the standard, which are made of hard materials, like aluminum, tinplate and the other kinds of metal, or cylinder cardboard tubes and hard plastic materials.

Other shaped can as the option, like square can, rectangle can or Elliptical etc.

Applicable Lidslids which are made of aluminum, tinplate and the other kinds of metal, etc.



Working Process

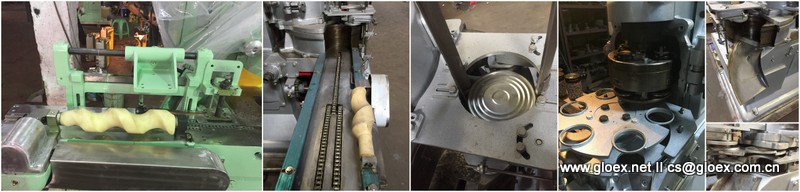

The working processes include: Feed the container by a screw type feeding device, and the machine pre-cap the lid on the can to be seamed. The can moves to the vacuuming and sealing chamber, after vacuuming, seaming mechanism will seal the can automatically



Features


Standard Features



1)         Apply for Round Shaped Tinplate Can, Aluminum Can or PET can seaming with vacuuming or without vacuuming processes

2)         Configure with painted cast iron as the main construction of the machine

3)         All processes include Can feeding, lidding ,vacuuming, and can seaming processes can be done automatically

4)         Configure with can feeding and lidding interlock, no can feeding no lidding and no sealing

5)         Full mechanical cam driven design, all processes include can feeding , lidding and seaming powered by one motor , enable reliable operation

6)         Cultch design, One key for start/stop, simple operation

7)         Faster vacuuming speed than linear type machine




Optional Features



1)         Non-round shaped can seaming

2)         Seaming only

3)         Vacuum and Gassing/nitrogen flushing

4)         Stainless steel 304 construction

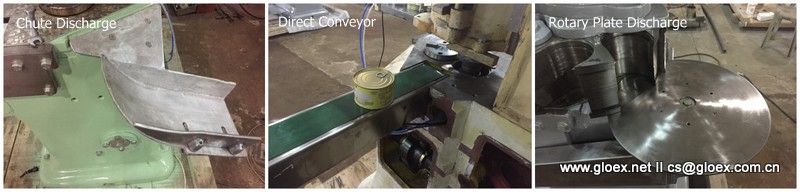

5)         Automatic discharge conveying with rotary plate or conveyor

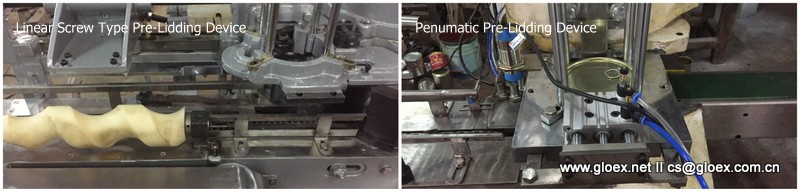

6)         Pneumatic pre-lidding



7)         Frequency inverting motorizing


Advantages


ž   Simple operation , no complicated setting , start/stop only

ž   Faster speed than linear type machine

ž   Purely mechanical cam driven, less control interfacing



Techncial Specification




Catalogue 2T-xxxxxGT-4B32GT-4B3ACT-4C280
Type Non-RotatingNon-Rotating

Non-Rotating

 AutomationAutomaticAutomaticAutomatic
Number of Seaming Head111
Speed AdjustableNon-AdjustableNon-AdjustableNon-Adjustable
Container Moving MethodLinear ScrewLinear ScrewLinear Screw
Height of Container60-135mm60-270mm100-360mm

Inner Diameter of Can

50-105 mm127-154mm100-280 mm
Seaming Speed50 cans/ Min25 cans/ Min30-40 cans/ Min
Power RequirementAC 380 V 50/60HZAC 380 V 50/60HZAC 380 V 50/60HZ
Electricity Consumption(kW)1.52.02.5
Lid Pre-cappingAutomatic AutomaticAutomatic
Compressing Air RequirementNot ApplicableNot ApplicableNot Applicable
Vacuum (Mpa)0.05-0.070.05-0.07Not Applicable
Approximate Weight(Net)(kg)1350kg 2000kg 1500kg
Dimension(mm)1549(L)×1210(W)×1900(H)1400(L)×1500(W)×2000(H)1690(L)×1500(W)×2100(H)

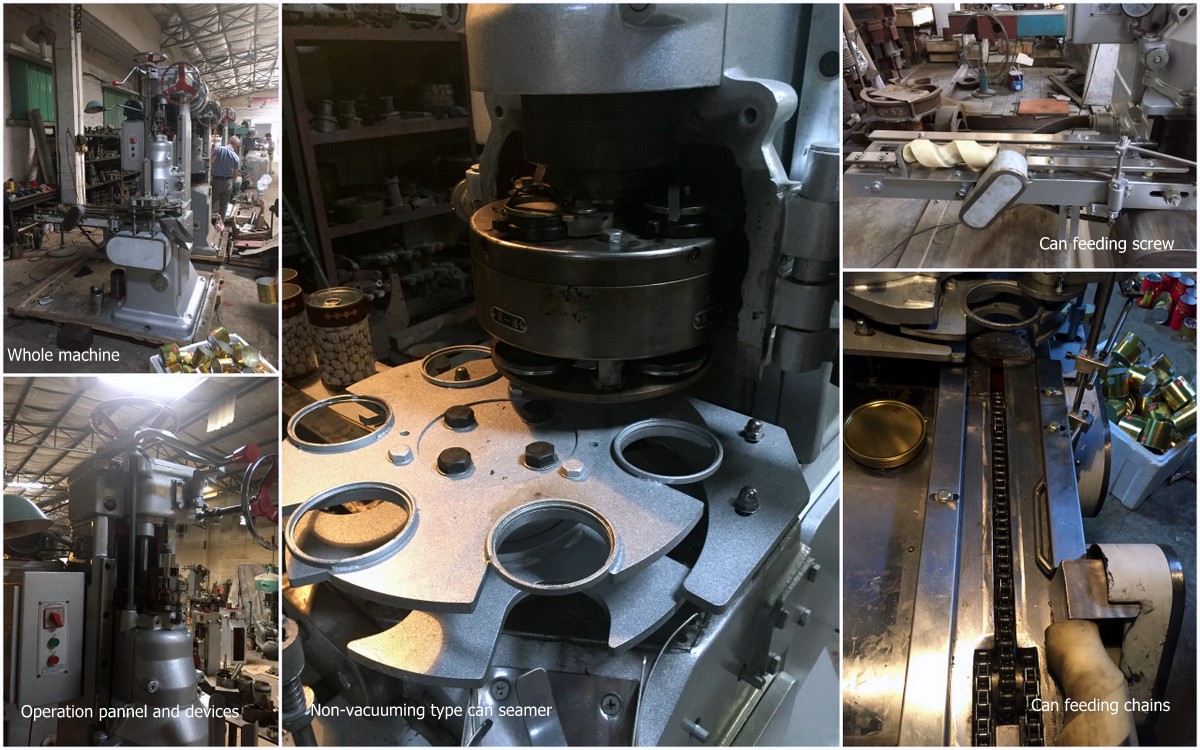

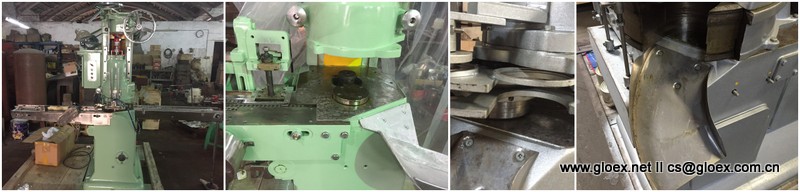

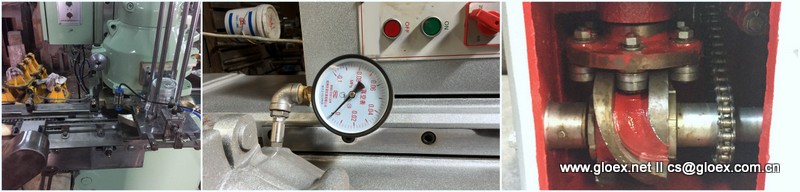

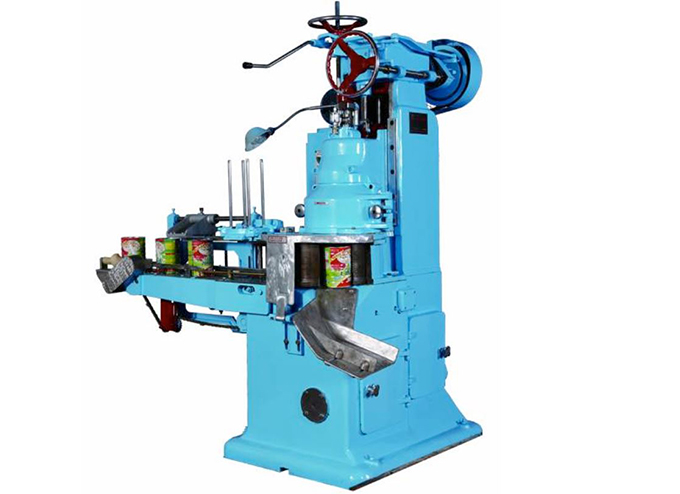

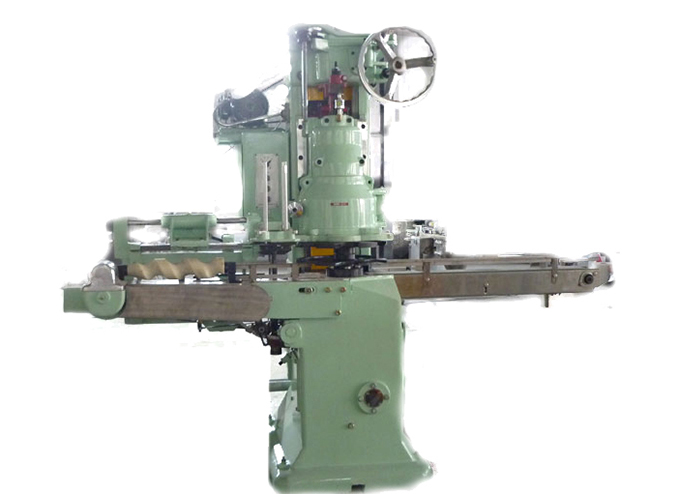

Reference Photos



Product Description


Following is the related video link on our Youtube site


Play list of Vacuum Tin Can Sealing Machine


For more technical support , please contact us at cs@gloex.com.cn
