Product Code : PP270

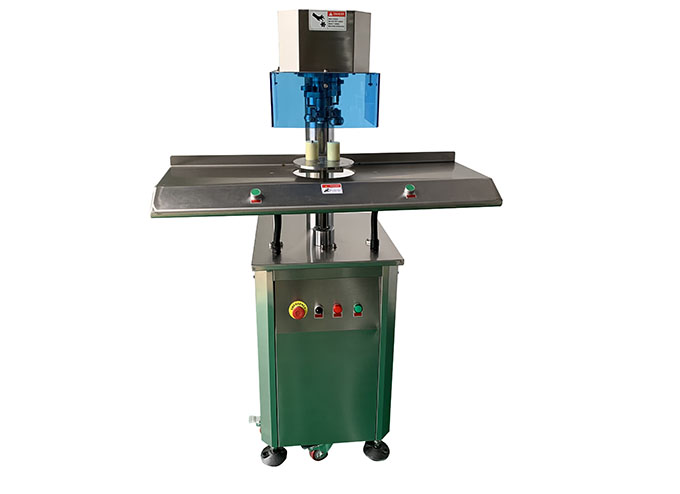

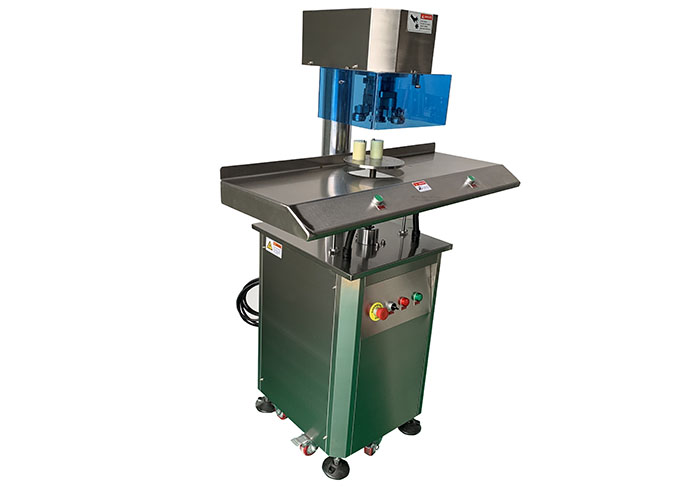

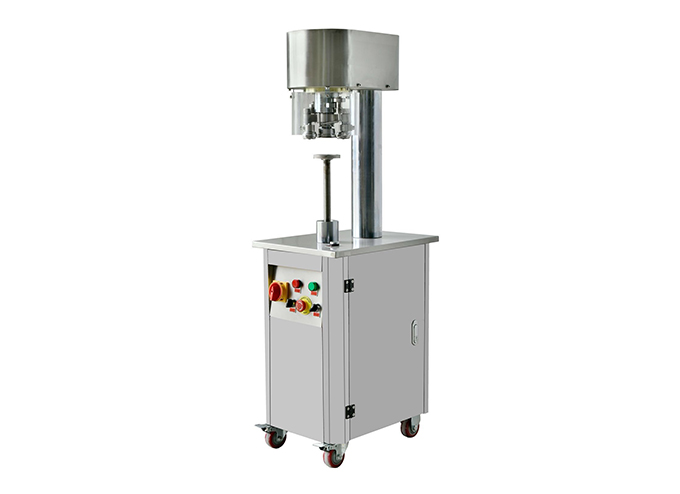

This machine is applicable for seaming the round can with lid which is made of aluminum, tinplate and the other kinds of metal.
This machine is applicable for seaming the round can with lid which is made of aluminum, tinplate and the other kinds of metal, the detail application description as following table:
| Issue | Application Description |
| Applicable Containers | Round shape can, which are made of hard materials, like aluminum, tinplate and the other kinds of metal, or cylinder cardboard tubes and hard plastic materials. |
| Applicable Lids | lids which are made of aluminum, tinplate and the other kinds of metal, etc. |
Following are the reference style of containers and applicable lids

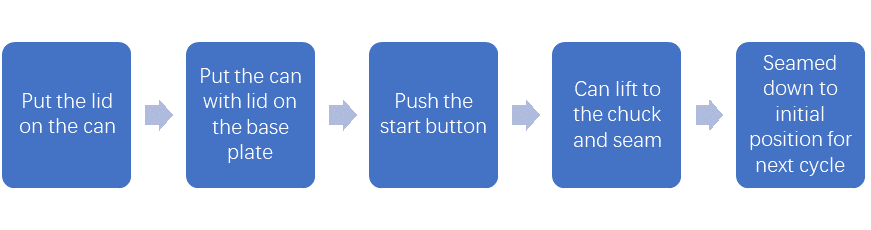

The working processes include: Put the lid on the can to be seamed. Then put the can on the base plate, push the start button on the seamer, the can will be lifted towards to chuck and seam, after seamed, the can will down to the initial position for next seaming cycle, Following are the typical working process diagram:
Features
Standard Features
1)Mainly stainless steel 304 construction
2)Container doesn’t rotate during seaming

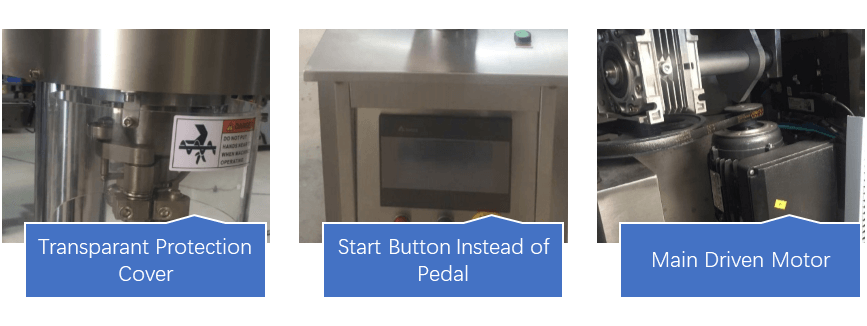

3)Main driven motor mounted in the lower cabinet, less vibration during seaming

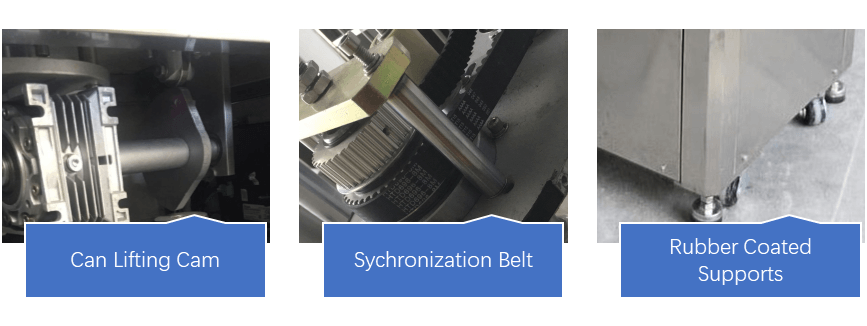

4)Synchronization belt applied for seaming, low noise, and no lubrication requirement
5)Convenient adjustment device to adapt the height of container

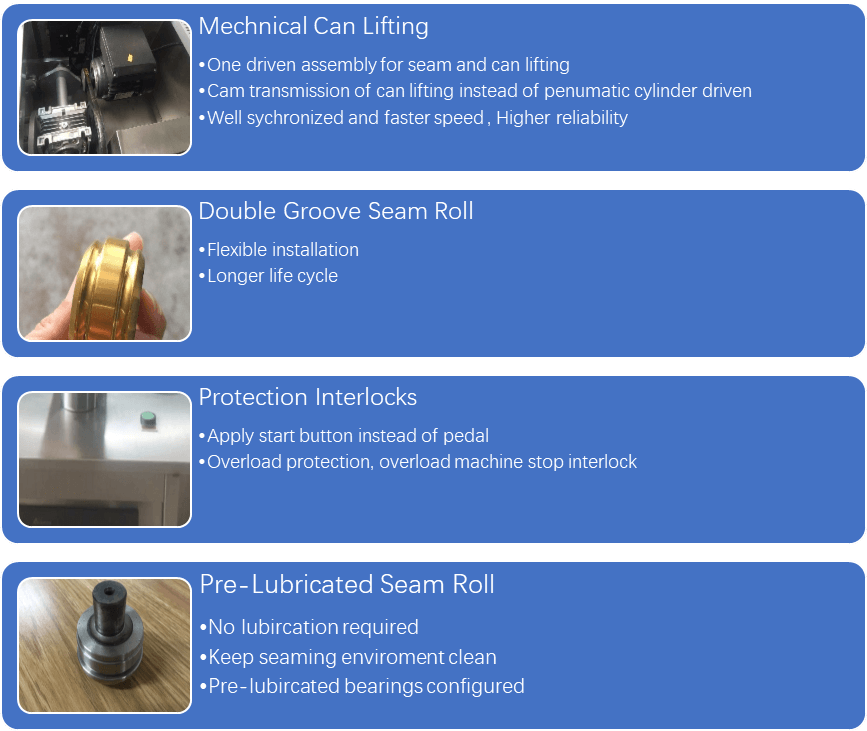

6)Mechanical cam can lifting design, reliable operation and faster speed
7)Rubber coating support and portable casters
8)Start button instead of pedal, safe operation
9)Overload machine stop interlock
Optional Features
1)Titanium coating seam roll and/or chuck

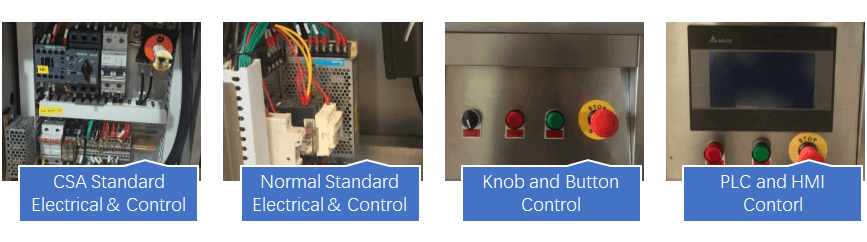

2)CSA standard electrical & control
3)Stainless steel 304 main base and seam roll levers
4)PLC and HIM control, convenient production control
5)Over or less size container customization
6)Container table, convenient production flow
For more information or technical support, please contact us at : cs@gloex.com.cn
| Catalogue 4V-xxxxx | SA-130 |
| Type **1) | Non-Rotating |
| Seam Roll | 2 Pieces |
| Height of Container(mm) | 50-200mm |
| Diameter of Caps(mm) | 35-130mm |
| Lidding Speed **2) | 20-30 cans/ Min |
| Power Requirement(V/Hz) | AC 220V 50/60HZ |
| Electricity Consumption(kW) | 0.75 |
| Rotating Speed | 1400RPM |
| Approximate Weight(Net)(kg) | 130kg |
| Dimension(mm) | 330*450*1345mm |
**1) Rotating means the container rotating during seaming
**2) The seaming speed subject to the skill of operator
