Product Code: PP251

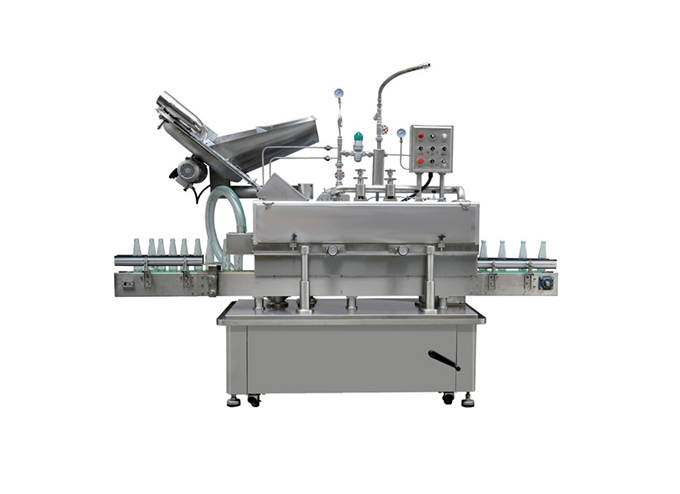

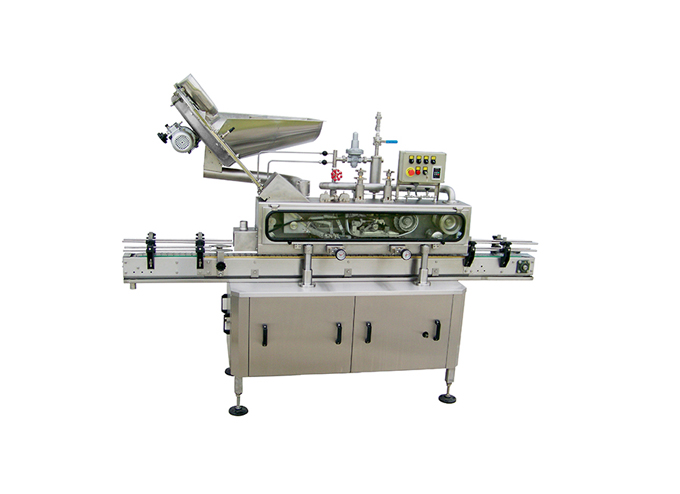

It applies to cap screwing for vacuum sealing of glass bottled products such as seasoning, pickles, fermented bean curd and jam.
It applies to cap screwing for vacuum sealing of glass bottled products such as seasoning, pickles, fermented bean curd and jam.
Standard Features
1) Apply for glass bottle vacuuming and capping by steam exhausting method
2) Apply for sorts of three or four screw cap
3) Equipped with frequency converting driven, speed adjustable
4) Bottle type changing without replacing of components
5) PLC and touch screen HMI control
6) Stainless steel 304 construction for main parts
Optional Features
Electrical or Gas fired Steam Generator
Technical Specification
| Type 4L-xxx | CVC |
| Bottle Diameter | 38-100mm |
| Cap Diameter | 38-82mm |
| Bottle Height | 65-260mm |
| Capping Speed | 80-150 bottles/min |
| Steam Consumption | 180-230 kg/h |
| Steam Pressure | ≤0.4MPa |
| Max Vacuum | 67KPa |
| Power Supply | AC220V 50/60Hz 3.12KW |
| Weight | 110 kg |
| Pressure Range | 0.4-0.6Mpa |

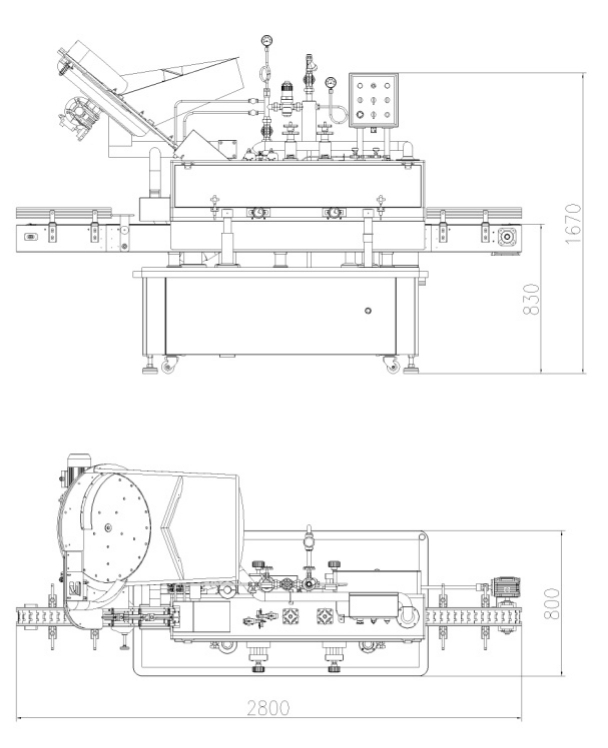

| Host Dimension | 2800×1100×2000mm |

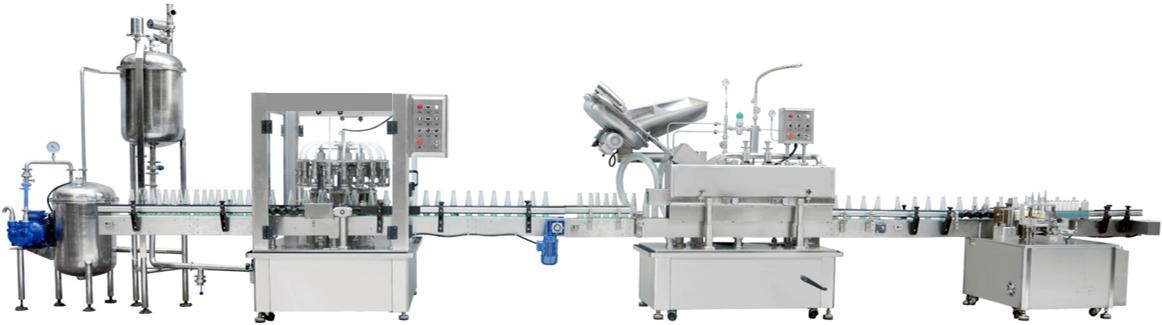

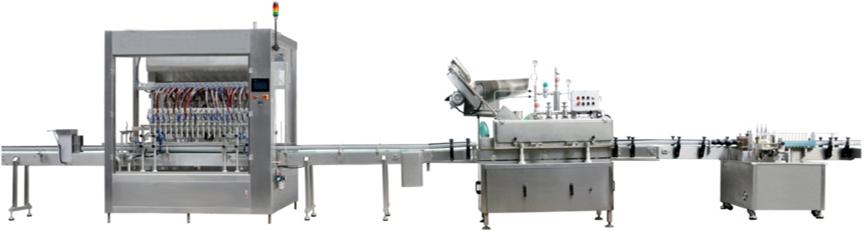

Typical Filling Line
1) 20-head piston filling machine
2) Continuous motion vacuuming capping machine
3) Paste labeling machine
1) 18-head rotary filling machine
2) Continuous motion vacuuming capping machine
3) Paste labeling machine
If need more support, please contact us at: cs@gloex.com.cn
