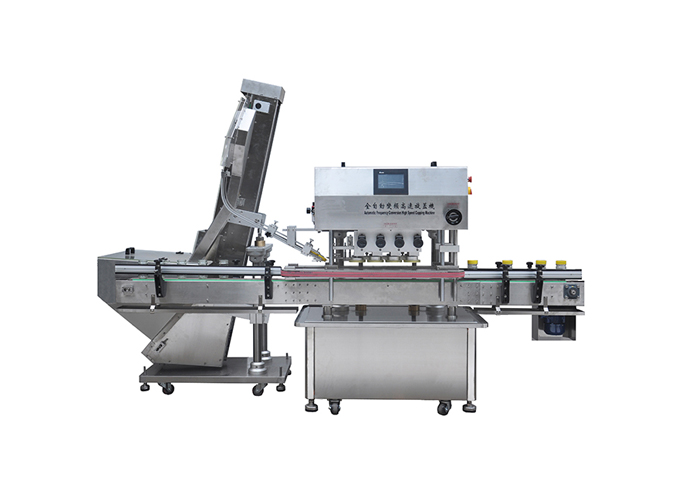

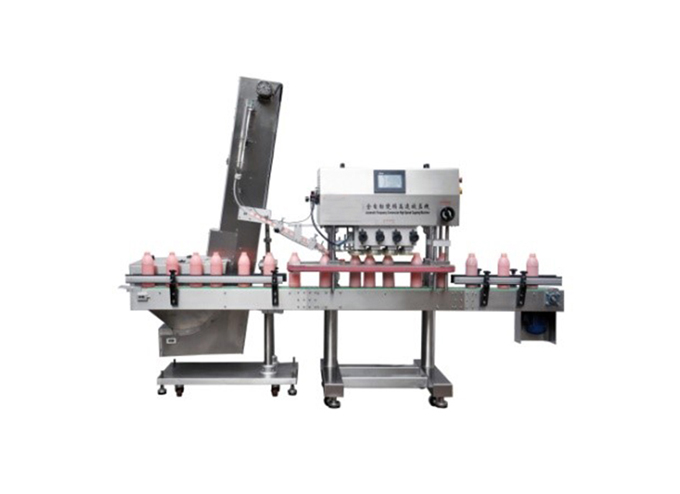

Automatic Inline Spindle Capping Machine with Elevator Type Waterfall Cap Sorter
  • Automatic Inline Spindle Capping Machine with Elevator Type Waterfall Cap Sorter
  • Automatic Inline Spindle Capping Machine with Elevator Type Waterfall Cap Sorter
Automatic Inline Spindle Capping Machine with Elevator Type Waterfall Cap SorterAutomatic Inline Spindle Capping Machine with Elevator Type Waterfall Cap Sorter

Automatic Inline Spindle Capping Machine with Elevator Type Waterfall Cap Sorter


    Product Code: PP198A


    This machine is applicable for tightening threaded caps. integrated with the Elevator-style Cap sorter, Vibratory or Centrifugal Sorting Bowl optionally,


    1) It is used for cap screwing of round bottles, square bottles or oblate bottles.

    2) It can be used on the independent rack and is suitable for cap screwing at large scale production lines of customers.

    3) It applies to customers requiring replacement of different specifications of bottles.

Inquire Now
Product Introduction


Automatic Inline Spindle Capping Machine with Elevator Type Waterfall Cap Sorter


Application


This machine is applicable for tightening threaded caps. integrated with the Elevator-style Cap sorter, Vibratory or Centrifugal Sorting Bowl optionally,


1) It is used for cap screwing of round bottles, square bottles or oblate bottles.

2) It can be used on the independent rack and is suitable for cap screwing at large scale production lines of customers.

3) It applies to customers requiring replacement of different specifications of bottles.



Features


Standard Features


1) Advanced PLC and touch screen control

2) Mainly 304 stainless steel construction

3) 8 spindles configuration

4) Elevator type waterfall cap sorter

5) Frequency converting driven

6) Heavy duty casters standard

7) No change of parts needed for a wide range of containers, such as round, square or oblate shape

8) No change of parts needed for a wide range of pre-threaded caps


Optional Features


1) Vertical Wheel sorter

2) Vibratory bowl sorter

3) Centrifugal bowl sorter

4) 6 spindle model


Technical Specification


Type XG-120-8
Cap Diameter19-55mm
Bottle Diameter/Width23-100mm
Bottle Height45-320mm
Capping Speed30-100 bottles/min subject to the type of container or cap
Power SupplyAC220V 50/60Hz 1.0 kw
Weight650kg
Compressed Air Supply0.4-0.6Mpa

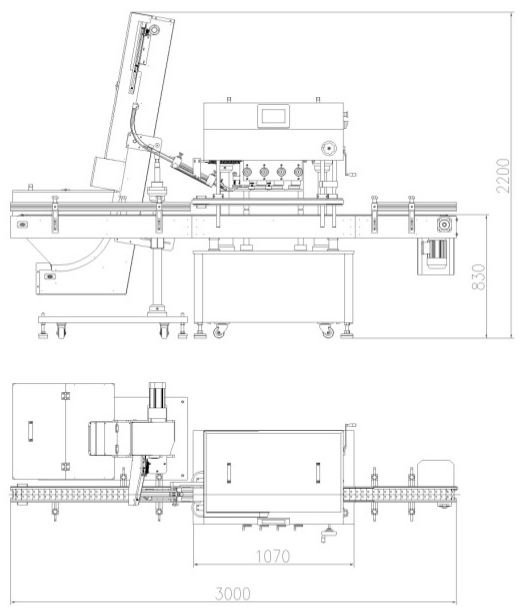

Dimension3000×830×2200mm


Automatic Inline Spindle Capping Machine with Elevator Type Waterfall Cap Sorter


Related Products

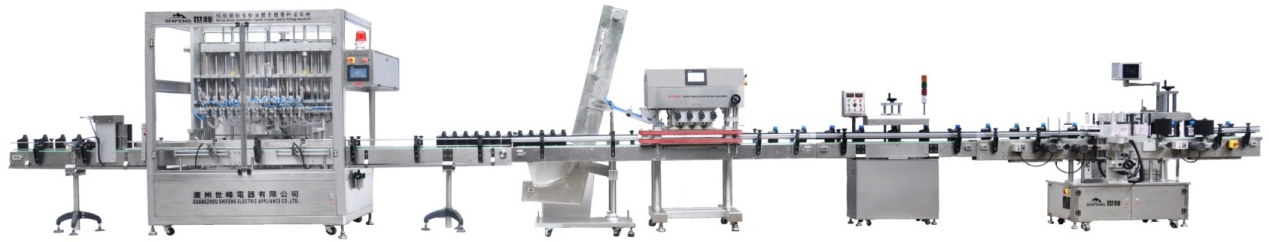

Typical Filling Line 1

Automatic Inline Spindle Capping Machine with Elevator Type Waterfall Cap Sorter


1) 12-head double servo filling machine

2) 8 spindle capping machine

3) Water-cooled aluminum foil capping machine

4) Double-side labeling machine

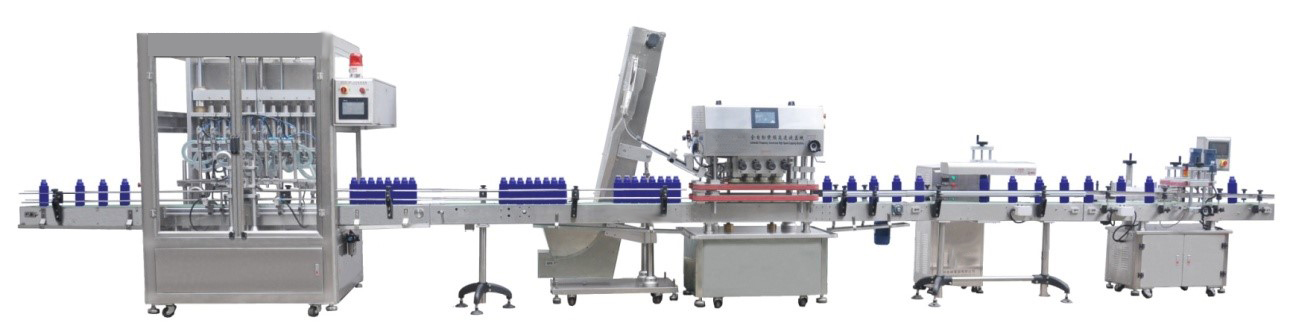

Typical Filling Line 2

Automatic Inline Spindle Capping Machine with Elevator Type Waterfall Cap Sorter


1) 8-head servo filling machine

2) 8 spindle capping machine

3) Air-cooled aluminum foil capping machine

4) Round bottle labeling machine
