Automatic Inline Snap Capping Machine with Elevator Type Waterfall Cap Sorter
  • Automatic Inline Snap Capping Machine with Elevator Type Waterfall Cap Sorter
Automatic Inline Snap Capping Machine with Elevator Type Waterfall Cap Sorter

Automatic Inline Snap Capping Machine with Elevator Type Waterfall Cap Sorter


    Product Code: PP197B


    This machine is applicable for press on type caps. integrated with elevator type waterfall cap sorter, or Vibratory / Centrifugal Sorting Bowl cap sorter optionally.

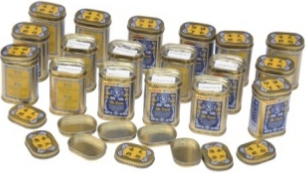

    Typically, it applies to capping of plane caps of round, square and oblate bottles for food, medicine, cosmetics and chemicals.


    The caps can be various plane caps of tall and short bottles which are round, square or oblate in shape.

Inquire Now
Product Introduction


Application


This machine is applicable for press on type caps. integrated with elevator type waterfall cap sorter, or Vibratory / Centrifugal Sorting Bowl cap sorter optionally.

Typically, it applies to capping of plane caps of round, square and oblate bottles for food, medicine, cosmetics and chemicals.

The caps can be various plane caps of tall and short bottles which are round, square or oblate in shape.

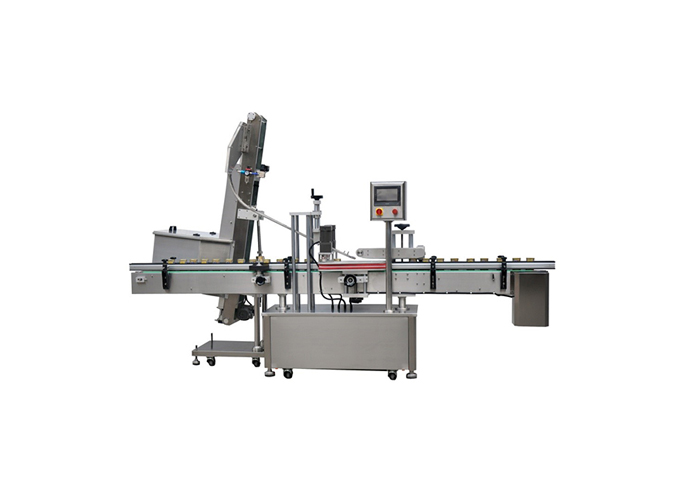

Automatic Inline Snap Capping Machine with Elevator Type Waterfall Cap Sorter


Features


Standard Features


1) Advanced PLC and touch screen control

2) Mainly 304 stainless steel construction

3) Elevator type waterfall cap sorter

4) Frequency converting driven

5) Heavy duty casters standard

6) Automatic cap sorting and pre-capping

7) Cap pressing on while container moving by clamping belt



Optional Features


1) Vibratory bowl sorter

2) With/without cap elevator



Technical Specification


TypeYGEW-100
Cap Diameter15-55 mm
Bottle Diameter20-55 mm
Bottle Height100-320 mm
Capping Speed60-10 BPM
PowerAC220V 50/60Hz 1.1KW
Weight650 kg
Compressed Air Supply0.4-0.6Mpa

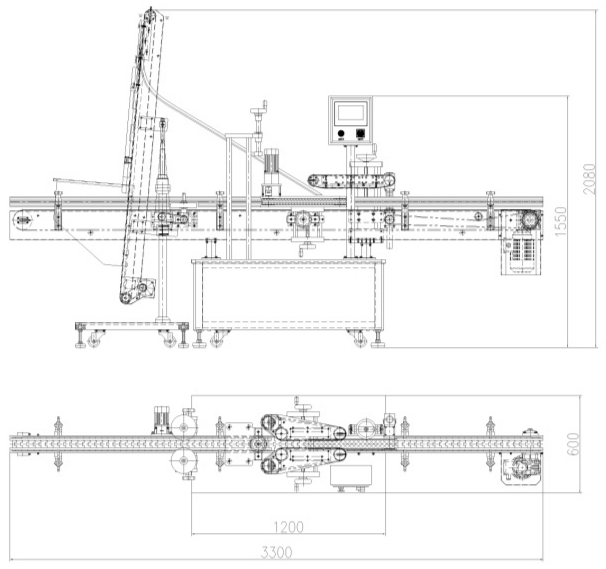

Dimension of Main Machine300×600×2080mm


Automatic Inline Snap Capping Machine with Elevator Type Waterfall Cap Sorter
