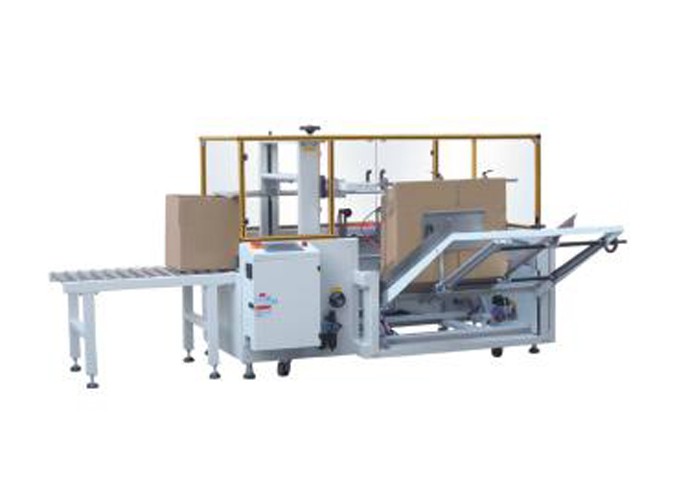

Right Angle Bottom Sealed Case Erector
  • Right Angle Bottom Sealed Case Erector
Right Angle Bottom Sealed Case Erector

Right Angle Bottom Sealed Case Erector


    Product Code: PP281


    It is applicable for the erect RSC, HSC cases. Include the carton open, bottom folding, bottom sealing processes.



    Hot melt glue system is optional. Integrated with case sealer, case packer,weighting system,labeling machine,printing machine,strapping machine and conveyor system as a production line.


Inquire Now
Product Introduction


Application

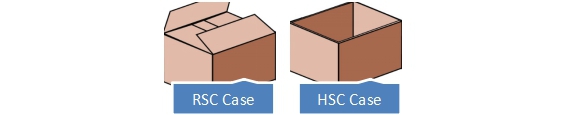

It is applicable for the erect RSC, HSC cases. Include the carton open, bottom folding, bottom sealing processes.



Hot melt glue system is optional. Integrated with case sealer, case packer,weighting system,labeling machine,printing machine,strapping machine and conveyor system as a production line.


Right Angle Bottom Sealed Case Erector

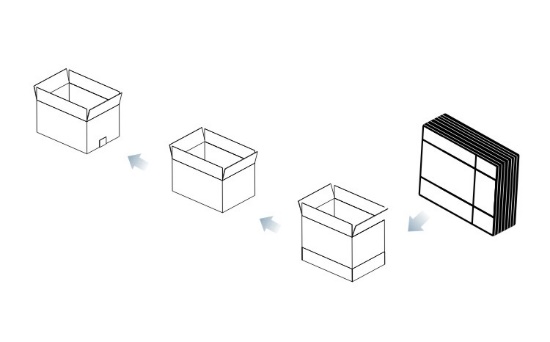

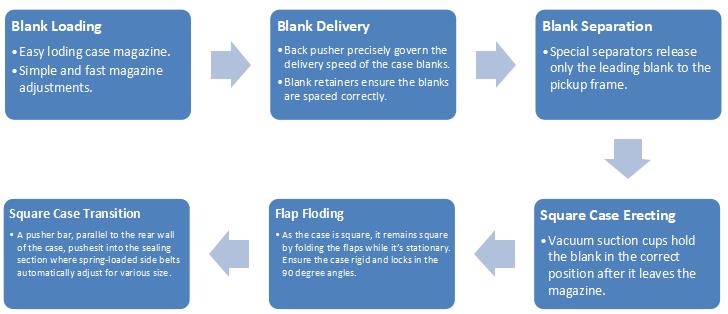

Working Processes


Right Angle Bottom Sealed Case Erector

Right Angle Bottom Sealed Case Erector


Features


Standard Features



1) Power Coated Frame

2) High quality, name brand components

3) Vertical blank loading

4) Easy loading case magazine

5) Vacuum suction cup for case erecting

6) Side belt governed the case transition and bottom sealing

7) Easy and fast changeover

8) PLC and Touch Screen control panel, for operator interface and machine management

9) No blank machine stop interlock

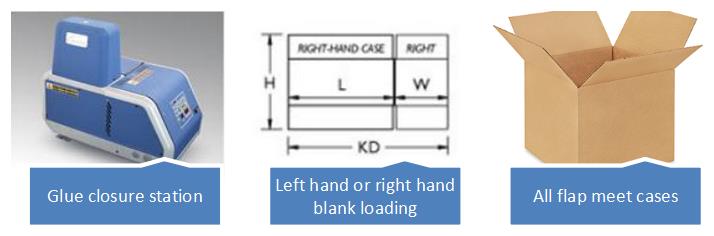

Optional Features



1) Glue closure station

2) SS304Stainless steel construction

3) Left hand or right hand blank loading

4) Over range size customization

5) Special electrical design, including alternate PLC control

6) All flaps meet cases as option

Right Angle Bottom Sealed Case Erector


Tips : Why use hot melt?



Hot meltTape
CostMore cost-effect than tape-
SpeedFaster than tape model-
Stability

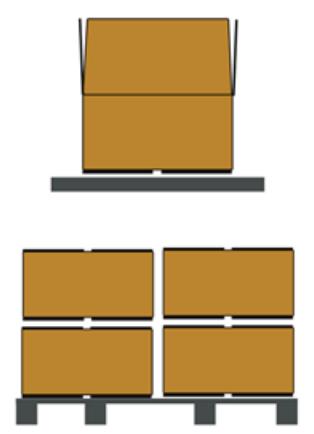

With flat bottom, more stable on conveyor and pallet


Right Angle Bottom Sealed Case Erector

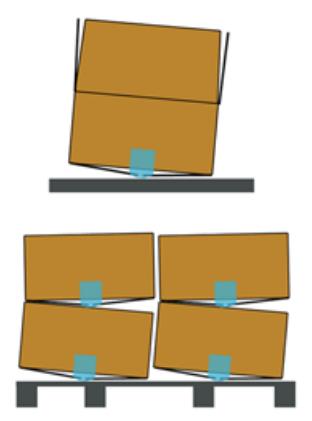

V-shaped bottom, less stable than flat bottom



Right Angle Bottom Sealed Case Erector

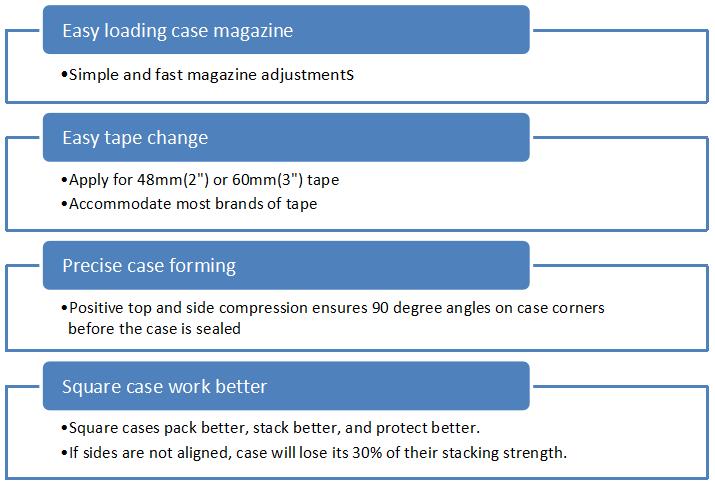

Advantages


Practically, the advantages as indicated as following:


Right Angle Bottom Sealed Case Erector



Technical Specification


Type KH-01L
MotionIntermittent
Speed8-12cases/minute
Case Size Range-L*W*H(200-450)×(150-400)×(100-350)mm
Tape Head48mm(2") or 60mm(3")
Power Supply220V380V, 50/60Hz, 300W
Air Supply6-7bar
Dimension-L*W*H2000×1900×1450mm


Related Link


Following is the related video link on our YouTube site.


Right Angle Bottom Sealed Case Erector


If need more support, please contact us at: cs@gloex.com.cn
