Inline Side Sealed Case Erector
  • Inline Side Sealed Case Erector
Inline Side Sealed Case Erector

Inline Side Sealed Case Erector


    Product Code: PP287


    It is applicable for the erect RSC, HSC cases. Include the horizontal carton open, side bottom folding, side bottom sealing processes.



    Hot melt glue system is optional. Integrated with case sealer, case packer, weighting system, labeling machine, printing, strapping machine and conveyor system as a production line.


Inquire Now
Product Introduction


Application


It is applicable for the erect RSC, HSC cases. Include the horizontal carton open, side bottom folding, side bottom sealing processes.



Hot melt glue system is optional. Integrated with case sealer, case packer, weighting system, labeling machine, printing, strapping machine and conveyor system as a production line.


Right Angle Bottom Sealed Case Erector

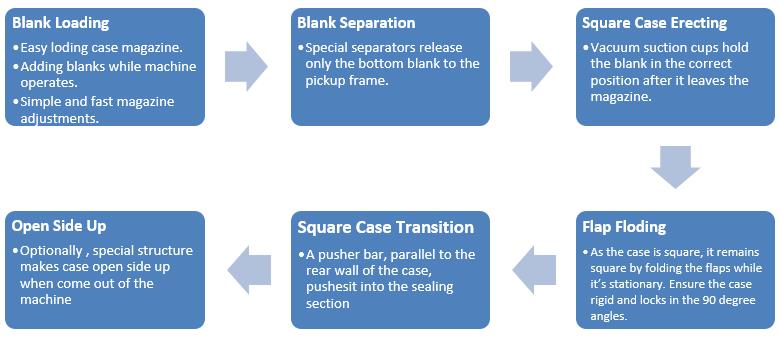

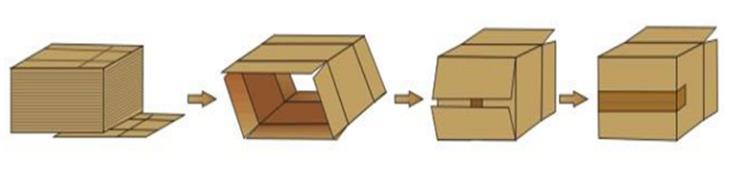

Working Processes


Inline Side Sealed Case Erector


Inline Side Sealed Case Erector


Features


Standard Features



1) Heavy duty mild steel power coated main frame

2) Stainless steel 304 or galvanized rollers for main case touching parts

3) Horizontal blank loading

4) Case erecting horizontally by vacuum suction cups

5) Case Squaring mechanisms

6) Standard tape head sealing configuration

7) Tool less quick case format changeover

8) PLC and Touch Screen control

9) No blank machine stop interlock

10) RSC, or HSC case application



Tips: Square Cases Work Better


Inline Side Sealed Case Erector


Optional Features



1) Glue closure station

2) Stainless steel 304 frame

3) Over range size customization

4) Outfeed conveyor

5) All flaps meet cases as option

6) Erected case turning vertically for product top loading


Inline Side Sealed Case Erector


Tips : Why use hot melt?



Hot meltTape
CostMore cost-effect than tape-
SpeedFaster than tape model-
Stability

With flat bottom, more stable on conveyor and pallet


Right Angle Bottom Sealed Case Erector

V-shaped bottom, less stable than flat bottom



Right Angle Bottom Sealed Case Erector

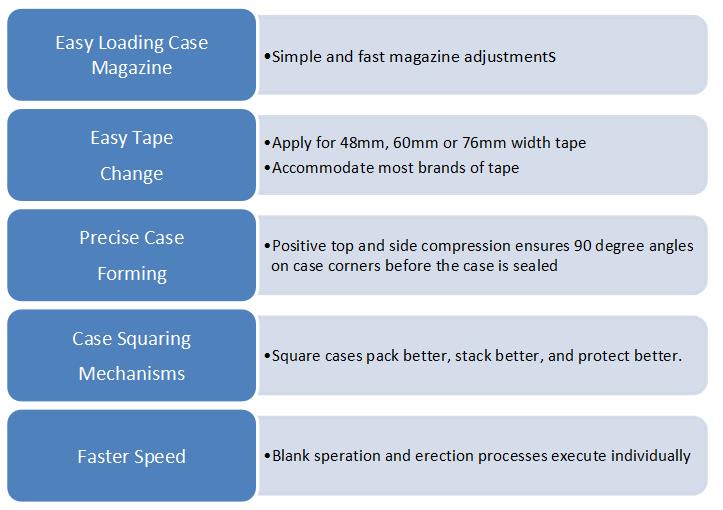

Advantages


Practically, the advantages as indicated as following:


Inline Side Sealed Case Erector



Technical Specification


Type BTK-50S
MotionIntermittent
Speed0-45 cases/minute

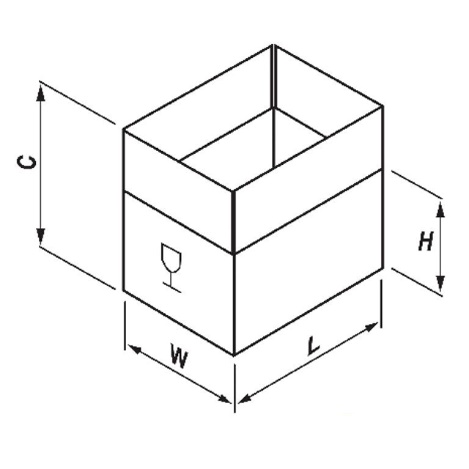

Case Size Range-L*W*H(240-500) ×(190-400) × (120-400) mm
Tape Head60 mm as the standard, 48,76 mm as the option
Power Supply380VAC, 3P+N+E, 50Hz, 750W
Height Of Working Platform1000 mm
Air Supply6kg/cm²
Gas Source Control24VDC
Dimension-L*W*H3100×1400×2000mm
Net Weight800kg
