Product Code:PP281

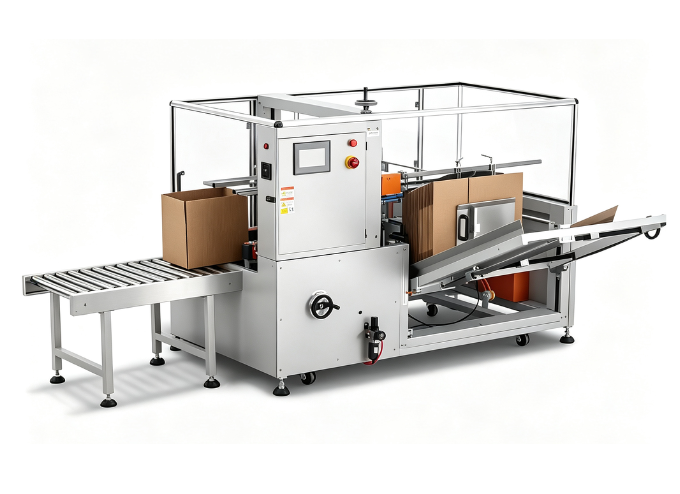

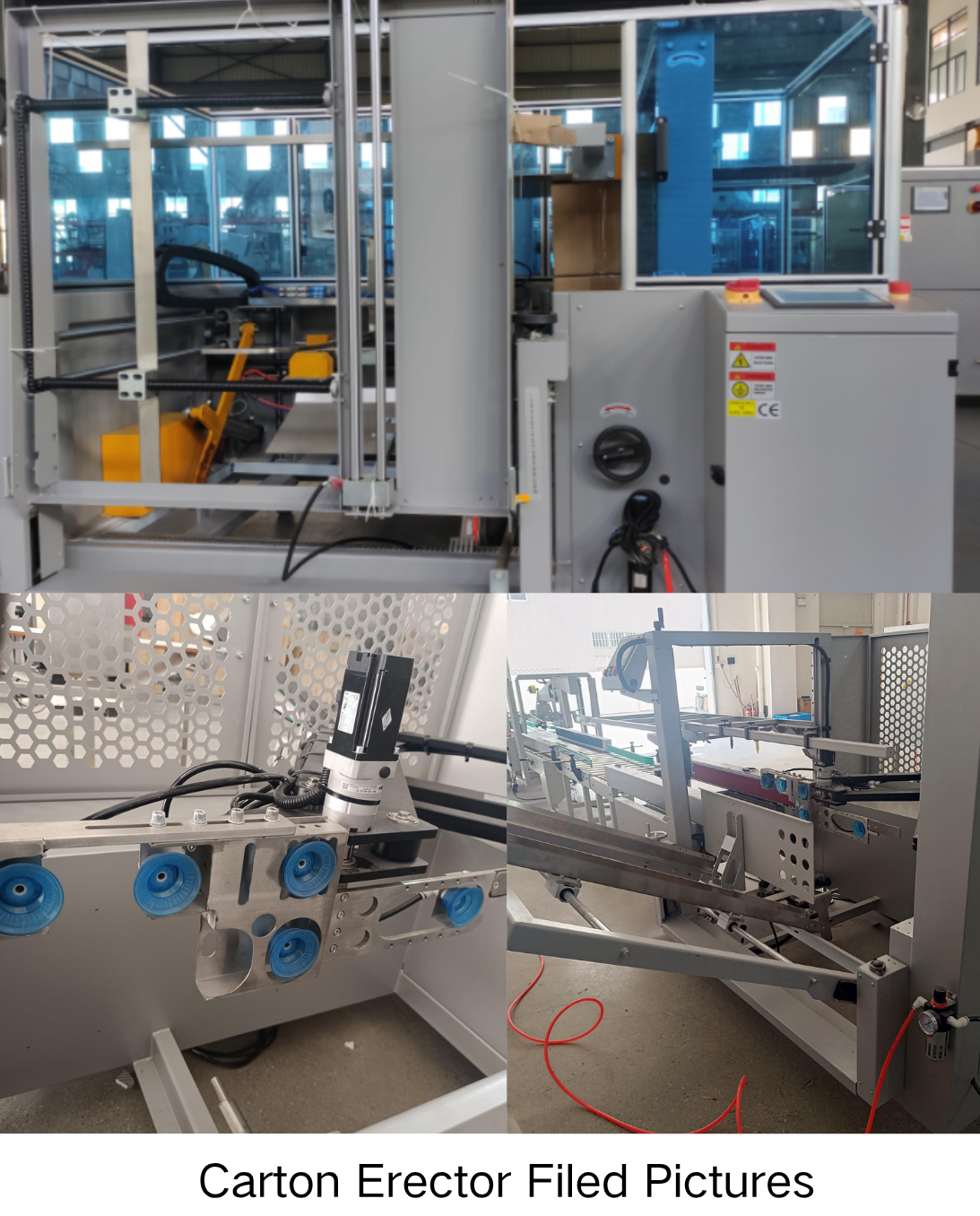

This machine is a fully automatic vertical Case erector designed for Case opening, bottom folding and sealing .
Related Video

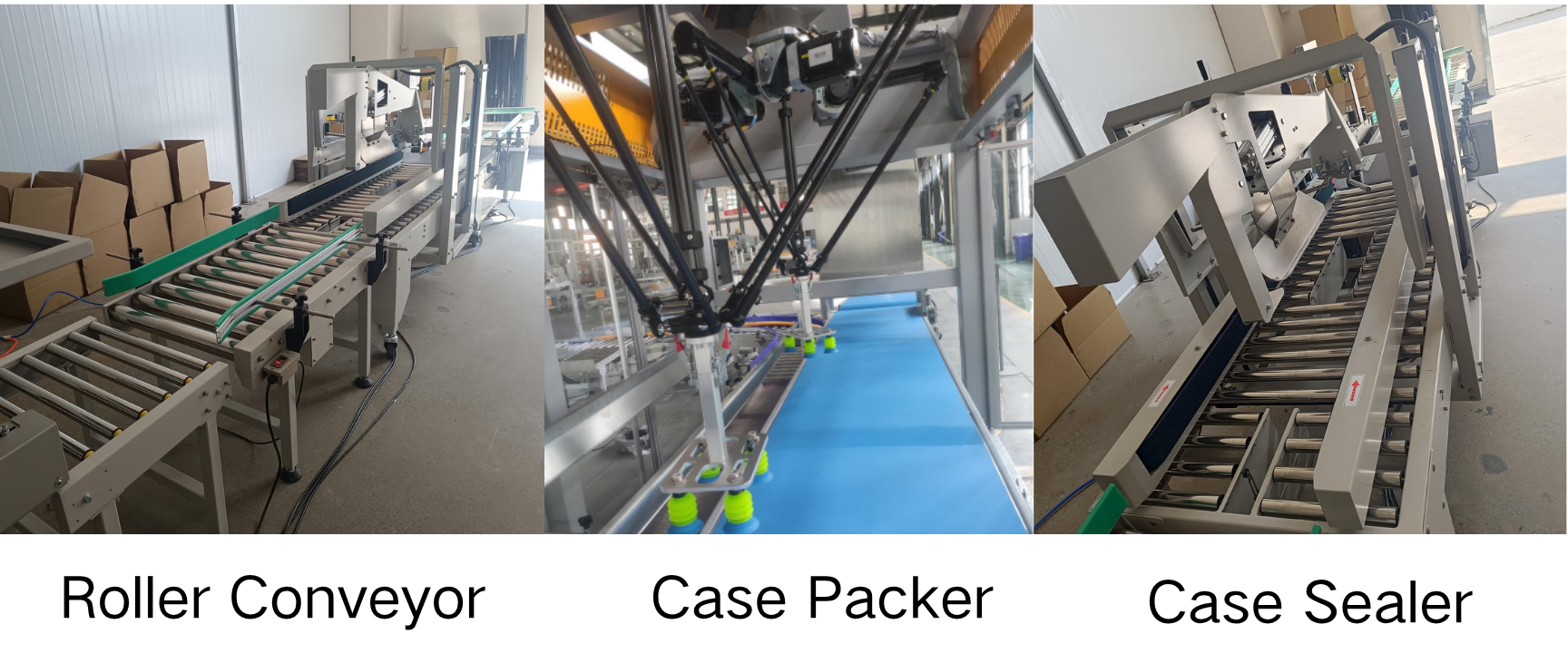

Suitable for erecting RSC or HSC cases. A fully automatic case packing line can be formed by configuring a case packer and case sealer.
Features
l Heavy duty mild steel power coated main frame
l RSC, or HSC case application
l Stainless steel 304 or galvanized rollers for main case touching parts
l Vertical blank loading
l PLC and Touch Screen control
l Case erecting vertically by vacuum sucking cups and servo forming device
l 90-degree angle servo driven mechanism enable case Squaring
l Servo driven belt governed the case transition and bottom sealing
l Tool less quick case format changeover
l No blank machine stop interlock
l Vertical type erector, with option of inline pin-Type case erector and horizontal type erector
l Case packer and case sealer are optional to constitute a complete case packing system.
l Pneumatic or servo drive is optional to satisfy different capacity requirements.
l Bottom sealing function, optional with hot melt glue
Core Difference Between Various Erecting Way
In-line Pin-type | Vertical Erector | Horizontal Erector | |
Working Principle | Cases are stored upright. Mechanical pin-type structure picks and erects the case | Cases are stored upright. Suction cups pick vertically and form the case | Cases are stored flat. Horizontal pick-up,then multiple stations gradually open, fold bottom, and seal |
Erecting Speed(cases/min) | Approx:15-20 | Approx:10-15 With 5 servo design, maximum 25 cases/min | Up to 30-40 |
Floor Space & Layout | In-line layout; claimed to increase magazine capacity while reducing floor space | Relatively small footprint; common choice for cost-effective lines | Complex structure, relatively large footprint; usually requires an automatic feeding system |
Case Size Adaptability | Moderate – adapts well to common case sizes | Widest range – handles various case sizes with easy changeover | Smaller range -with large capacity |
Cost & Maintenance | Middel level | Highest cost effective | Highest precision engineered |
Advantages
l High flexibility: Wide range of case sizes, suitable for small and medium-sized enterprises or production scenarios with diverse and frequently changing products
l Easy maintenance: Featuring relatively simple structure with pneumatic cylinder and servo drives, the machine facilitates maintenance
l High cost performance: Low entry investment, meeting the budget requirements of production lines at the initial operation stage
Technical Specification
Catalogue | GPK-5040 | KXL-6550 | KXM-5040 |
Case Size (L×W×H mm) | 270–500 ×150–400 ×100–400 | 280–650 × 150–500 × 150–450 | 280–500 ×150–400 ×150–400 |
Speed (boxes/min) | 1–12 | 5–25 | 5–30 |
Dimension (L×W×H mm) | 2100×2100×1450 | 2920×2100×1500 | 2600×2000×1400 |
Power Supply | 220VAC 1P+N+E 50/60Hz, 0.25kW | 220VAC 2P+N 50Hz, 2.35kW | 220VAC 2P+N 50Hz, 2.1kW |
Air Source | ≥500L/min,0.6–0.8 MPa | 6 kg/cm² | 6 kg/cm² |
Tape(mm) | W48–60–75 | head ≤60 | head ≤60 |
Catalogue | KXS-4035 | KXS-4035G |
Case Size (L×W×H mm) | 145–400×85–350×150–350 | 145–400×85–350×150–350 |
Speed (boxes/min) | 5–30 | 5–30 |
Dimension (L×W×H mm) | 2400×2000×1400 | (not specified) |
Power Supply | 220VAC 2P+N 50Hz, 2.1kW | 220VAC 2P+N 50Hz, 2.1kW |
Air Source(kg/cm²) | 6 | |
Tape(mm) | head ≤48 | Hot glue (glue machine excluded) |
