Product Code:PP282

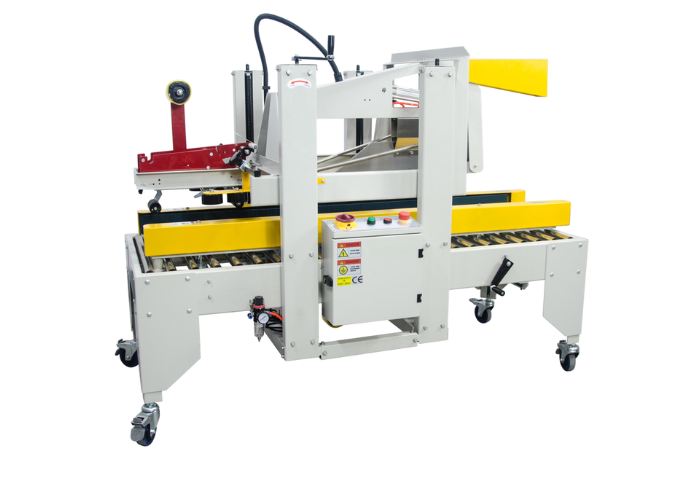

This machine is a fully automatic carton sealer, applying for carton sealing including processes of top folding and sealing process.
Related Video
Suitable for erecting RSC or HSC cases. A fully automatic case packing line can be formed by configuring a case packer and case sealer.
Features
l Apply for carton sealing include processes of top folding and sealing process
l Painted carbon steel construction
l Tool less carton size change over
l Side belt driven
l Tape tension is adjustable for various type of carton adaption
l Bottom sealing scenarios
l Hot melt adhesive sealing system, excluding hot melt glue machine
l Dual-column design, enhances structural rigidity and stability, preventing flap-folding arm wobble during high-speed operation and significantly reducing noise
l Independent electrical control box, for easier and safer operation
l Stainless Steel Rollers, durable, rust-resistant, and high load-bearing capacity
Technical Specification
Catalogue/GPC-XXX | 5050 | 50D | 9060 |
Power Supply (V/Hz) | AC 220/50 | 110/220V 50/60Hz 1Phase | |
Power Capacity (W) | 260 | 420 | |
Air Supply (MPa) | 0.4-0.6 | 0.6 | |
Min Length (mm) | 200 | 300 | |
Max Length (mm) | 600 | 900 | |
Min Width (mm) | 150 | 150 | |
Max Width (mm) | 500 | 600 | |
Min Height (mm) | 150 | 130 | 150 |
Max Height (mm) | 500 | 600 | |
Speed of Sealing(m/min) | Approx:18 | ||
Sealing Method | Tape (BOPP, PVC) | Hot melt adhesive | Tape (BOPP, PVC) |
Conveyor Height (mm) | 600-750 adjustable | ||
