Product Code: PP117
Equipped with a 3-stage roller sealing structure, this packaging machine series achieves automatic packing for pastes, thick liquids and sauces. It supports 3-side seal, 4-side seal and stick packs, and is compatible with irregular shaped pouches.
Related Video
This series of packaging machines is 3 stage roller pressing designed for automated packaging of various materials such as pastes, viscous liquids, and sauces.

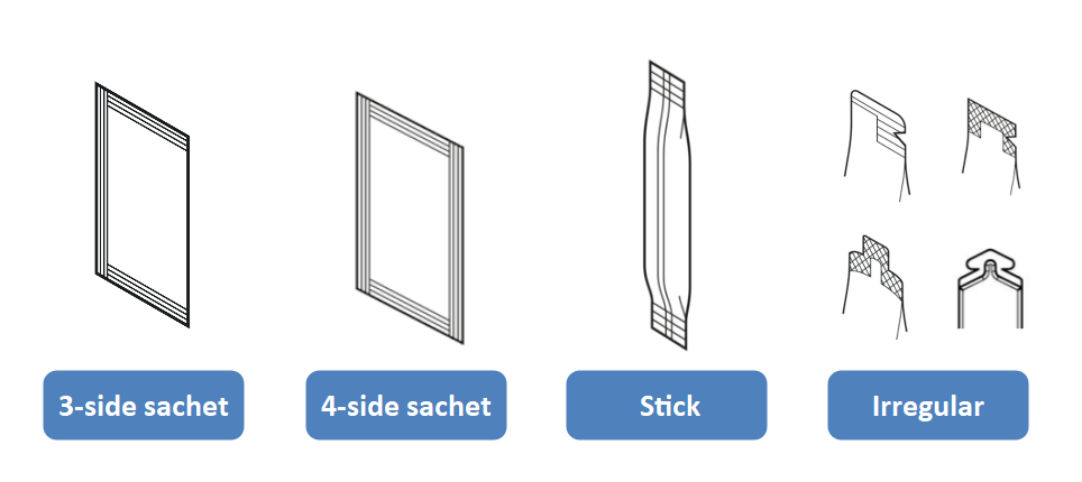

It supports 3-side sealing, 4-side sealing, and stick packaging, also suitable for irregularly shaped sachets.

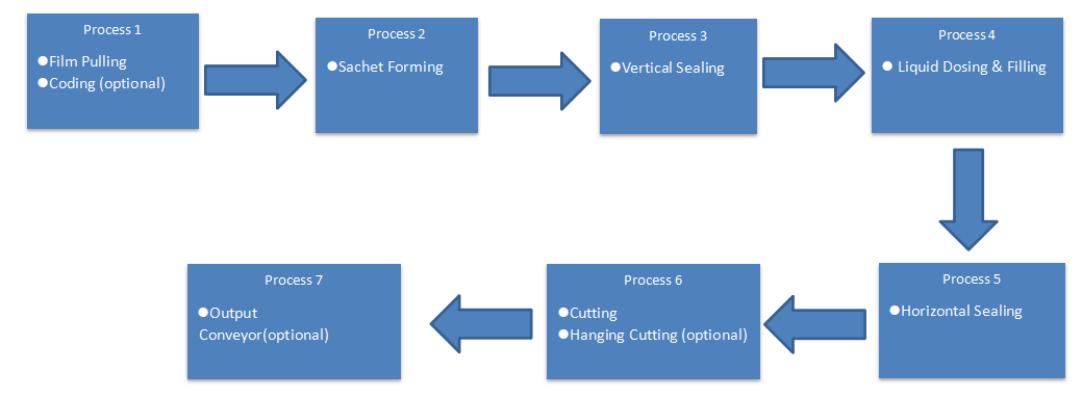

The entire packaging process includes sachet forming, liquid dosing, filling, and sealing with flat-cut, Z-shaped cut, or custom-shaped punch cuts.
Features
l Apply for laminating heat sealable flat sachet filling, forming, and sealing
l The roller pressing technology enable stable, high tightness sealing
l Continuous sealing technology enable 1/2-1/3 faster packaging speed than flat pressing type
l Intelligent temperature controlling configuration, ensure the artistic and neat sealing
l Separate the power between sealing and cutting off, reliable operation
l Sealing Roller Control: Servo motors
l Cutting Device Control: Servo motor
l Notching Device Control: Servo motor
l Frame Structure : Stainless steel 304
l Type of Sachet: 3 sides sealing and, 4 sides sealing without changing of sealing kits , or back sealing as the option
l Cutting off: single sachet
l Hot Ink Roll coding device
l Temperature Controllable Double Layers Hopper
l Chain Sachet Cutting Kit
l Additional Large Storage Barrel
l Upgraded to SS316for product contacting
l Stirring Device
l Servo Driven Pump
Advantages
l Vertical hot sealing with anti-leak line
l Horizontal hot sealing
l Horizontal cool sealing for final shaping
l Dosing device based on products features
l Servo drive without chain/belt
l One-click bag size adjustment
l Intelligent netweork monitoring
Technical Specification
| 1M-Y319F-Q-150 | 1M-Y319F-Q-200 | 1M-Y319S-Q-110 | |
| Dosing devices | Pneumatic piston pump with rotary valve | ||
| Application | Liquid mix with granules, like sauce | ||
| Control Method | PLC and Touch Screen HMI | ||
| Sachet Size-Length(mm) | 50-210 | 50-210 | 50-210 |
| Sachet Size-Width(mm) | 30-150 | 30-200 | 30-110 |
| Filling Volume(ml) | 1-150 | 1-200 | 1-100 |
| Packaging Speed(Sachets/min) | 20-120 | 20-120 | 20-120 |
| Power Consumption(kW) | 3.8 | 3.8 | 3.8 |
| Approximate Weight(kg) | 500 | 500 | 500 |
| Dimension(LxWxH-mm) | 1400*1000*1800 | ||
| Power Requirement(V/Hz) | AC380V 50/60HZ | ||
| Dosing range adjustment | Manual setting up | ||
