Product Code:PP329A

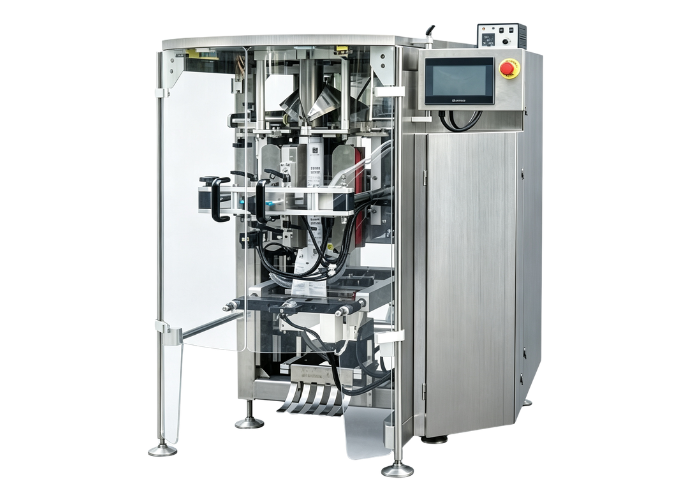

This continuous vertical form fill seal machine features a 304 stainless steel frame, multi‑servo drives, and quick bag changeover, with intelligent sealing control and flexible dosing options for efficient, stable packaging.
Related Video
This machine is applicable for bag forming, filling, sealing packing with roll film.Configured with different type of dosing devices, it is applicable for various materials packing, such as flour, oatmeal, coffee beans, juice, sauce, etc.
This machine applies to roll film packing with laminate heat sealable material, such as PET/AL/PE and Kraft paper/AL/LLDPE, etc.

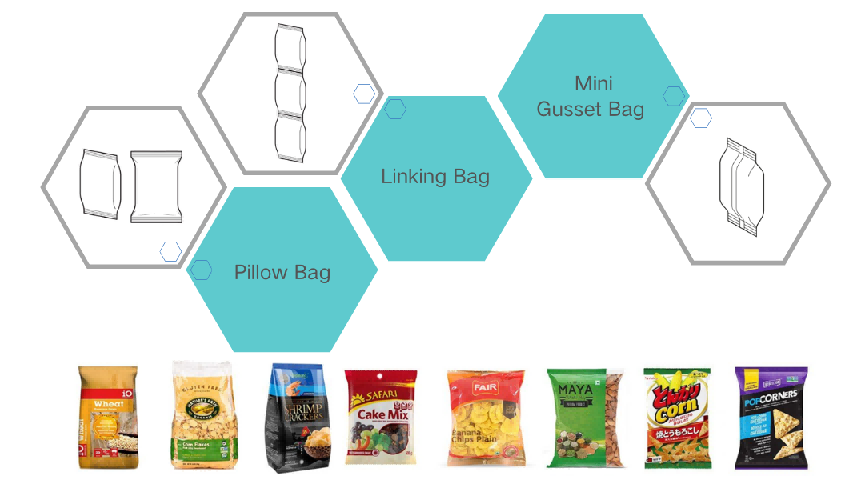

Configure different designs for filling and sealing pillow bags, with optional for hole punching bag, conjoin bag, and hole conjoin bag package.

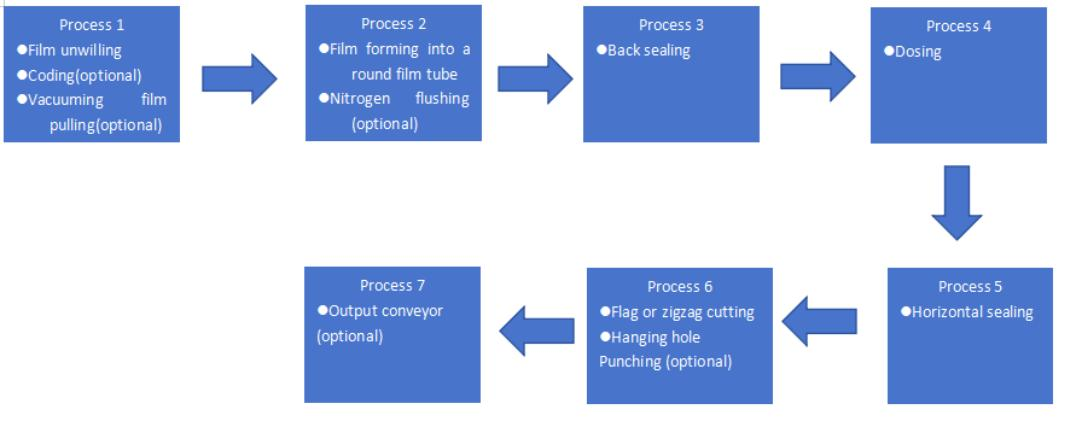

Working Processes
The working processes include: laminate packaging film pulling, vent valve adding, bag forming, dosing, then filling, sealing and discharging.
Features
lApply for pillow bag form fill and seal, optional for hole punching bag, conjoin bag, and hole conjoin bag package
lOptional dosing devices available, such as multi-head weighers, auger fillers, volumtric cup fillers, and liquid pumps
lEasy to changover bag former in min (speed depends on package weight, product characteristics, and bag size) servo driven for different bag width quickly
lPLC & HMI Control, easy for parameter setting and troubleshooting
lMainly stainless-steel 304 construction for food grade packing
lHeavy duty design suits for high speed operation
lFilm pulling method: 2 set servo driven
lHorizontal sealing method: 1 set servo driven
lMovement of Horizontal sealing jaw: 1 set servo driven
lContinuous vertical sealing, and horizontal seal moving by sealing, achieve faster speed
lIntelligent temperature controlling configuration, ensure the artistic and neat sealing
lConfigure with packaging film tension control, to enable stable pouch making
lWith all four sides openable, easy operation and hassle-free maintenance
Advantages
Technical Specification
Catalogue/CB-XXX | AG320 | AG420 |
Max Packing Speed(bags/min) | 10-120 | |
Roll Film Width(mm) | Max320 | Max420 |
Bag Length Range(mm) | 50-180 | 50-300 |
Bag Width Range(mm) | 50-150 | 60-200 |
Power Supply | 1.5KW 220V 50/60Hz | 2.2KW 220V 50/60Hz |
Air Consumption(m³/min) | 0.8MPa 0.3 | |
Film Pulling Method | Standard Belt Pulling | |
Catalogue/CB-XXX | VG42A | VG52B | VG73 |
Max Packing Speed(bags/min) | Max 150 | Max 100-120 | Max 30-35 |
Roll Film Width(mm) | Max420 | Max520 | Max730 |
Bag Length Range(mm) | 50-300 | 50-350 | 60-450 |
Bag Width Range(mm) | 50-200 | 50-250 | 140-350 |
Power Supply | 2.2KW 220V 50/60Hz | 5.6KW 220V 50/60Hz | 220V 50/60Hz |
Air Consumption(m³/min) | 0.8MPa 0.3 | ||
Film Pulling Method | Vacuum Belt Pulling | ||
