Product Code:PP179

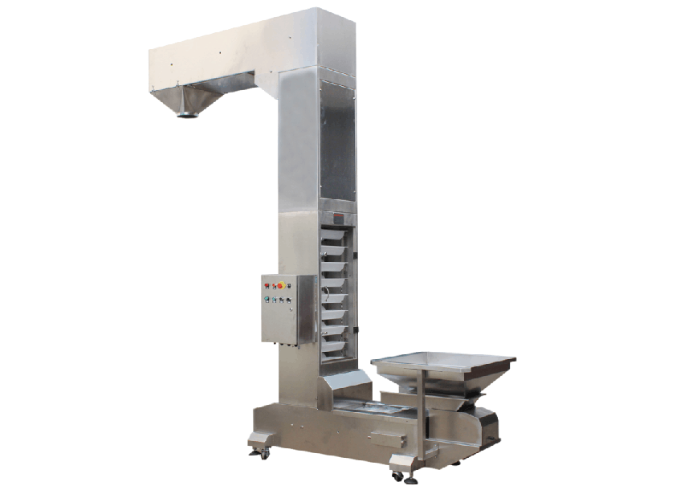

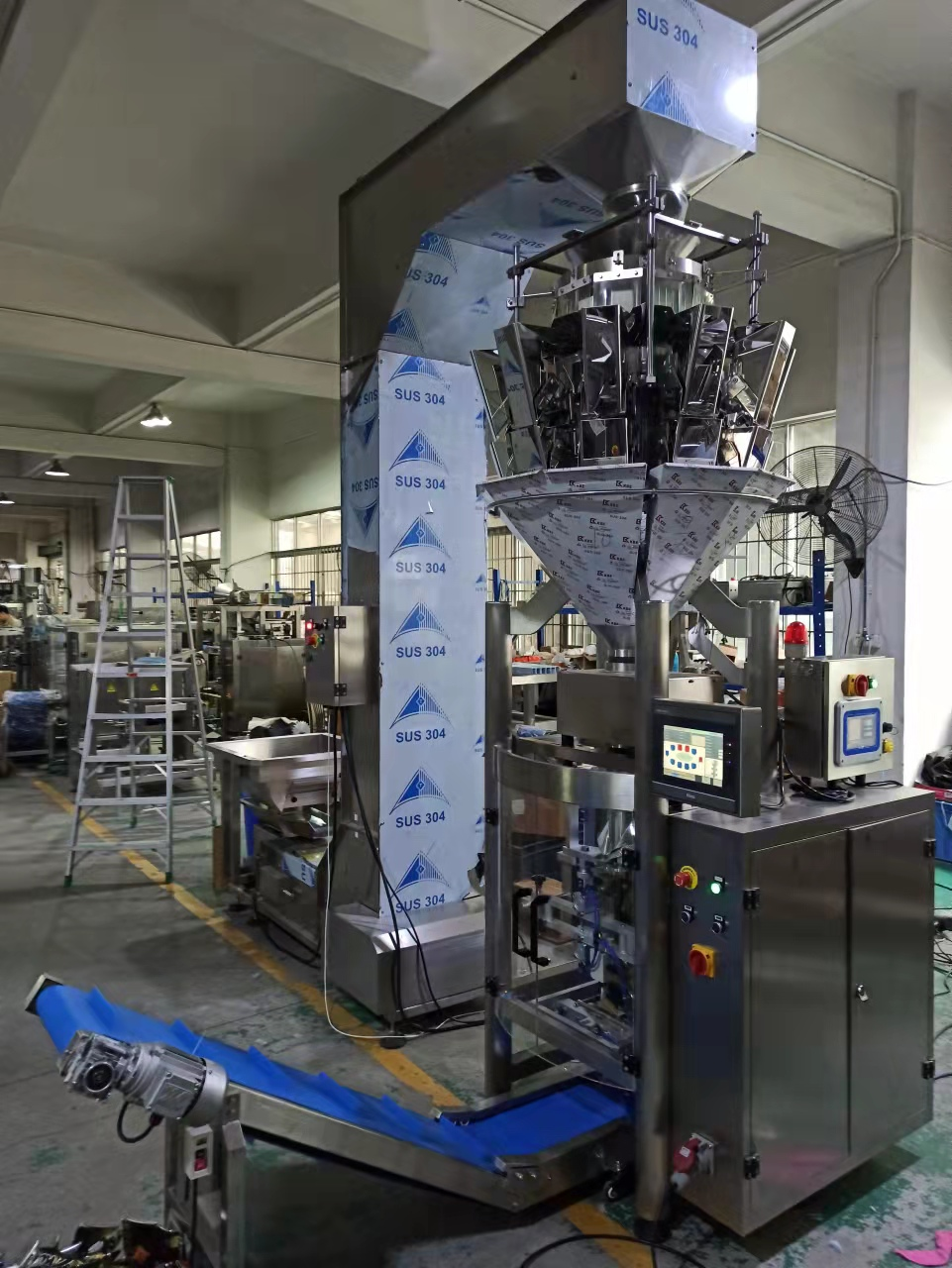

Vertical conveyor featuring a vibratory feeder with frequency-controlled lifting, designed for gentle and efficient transport of granular solids.
Related Video

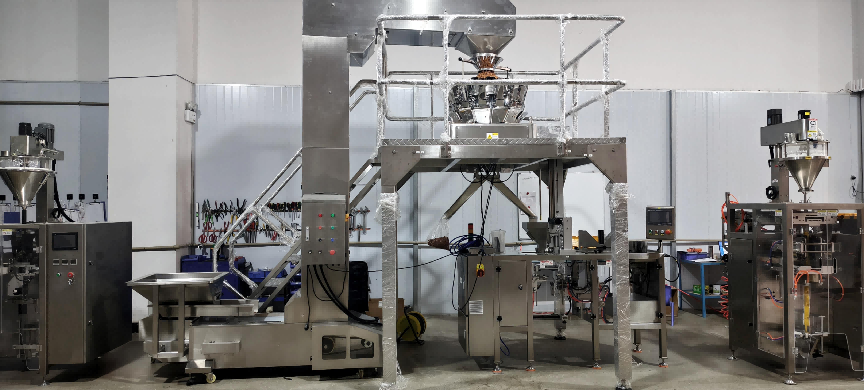

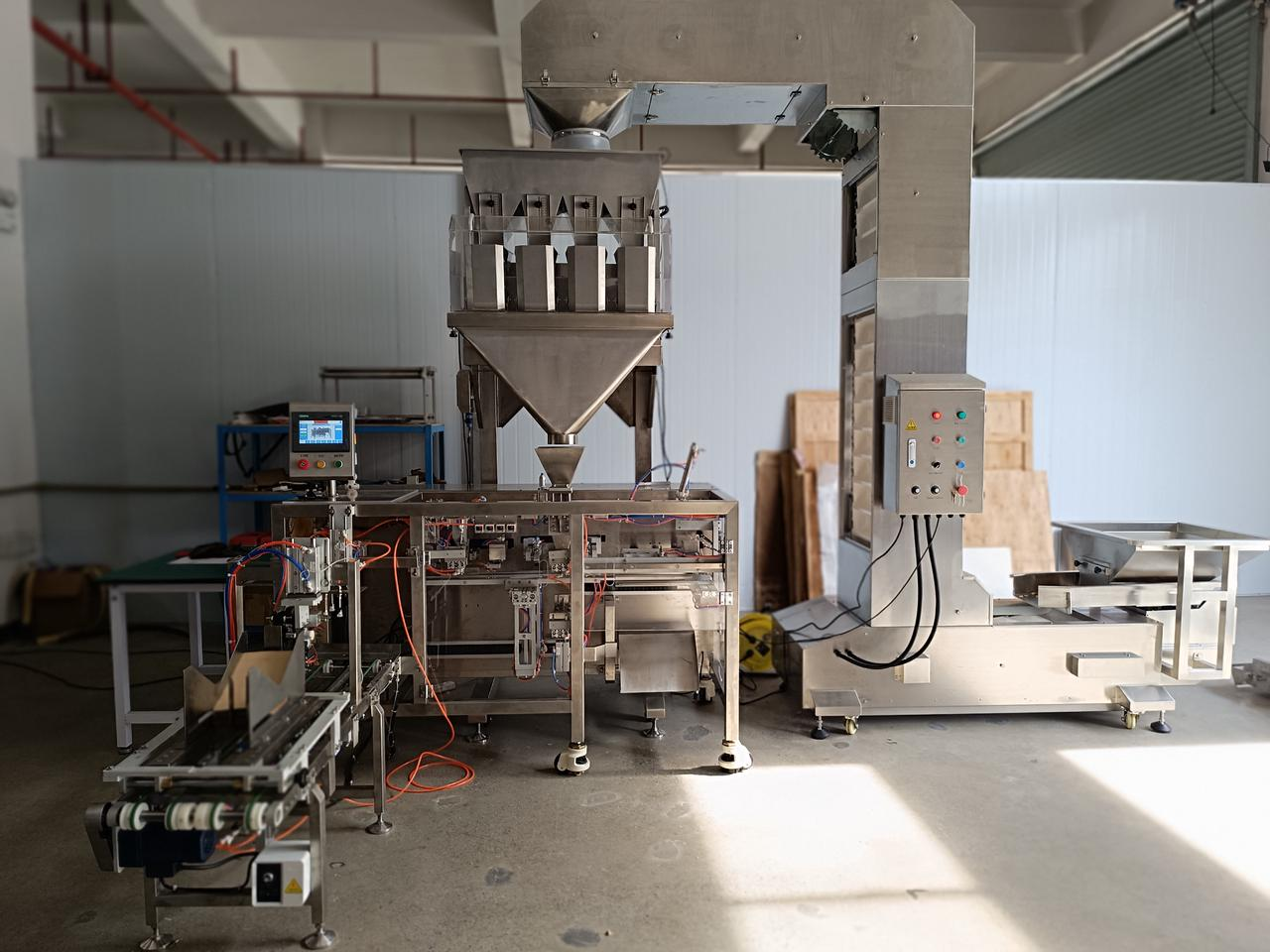

Designed for precise feeding of granular materials, this equipment is primarily used with multi-head weighers or linear weigher systems to ensure smooth, uniform elevation of materials from low-level to high-level hoppers. It is widely applied in the food, pharmaceutical, and chemical industries.
Features
l Apply for granule or other irregular solidity loading

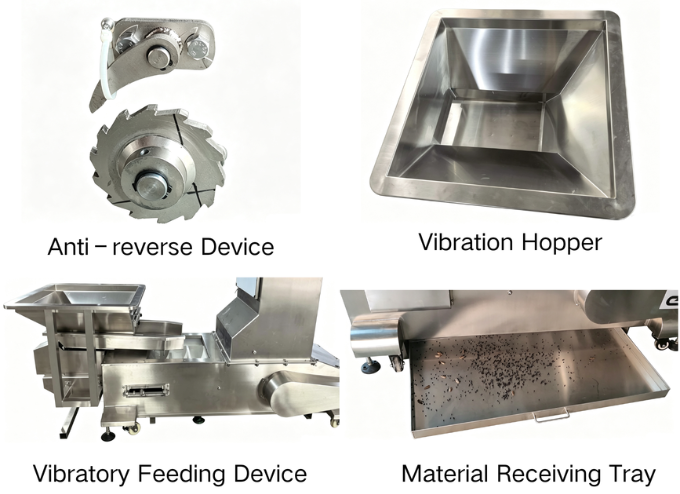

l Vibrating adjustable feeder integrated
l Tube frame configuration
l Frequency converting motor driven
l Quick assembly design, simple operation

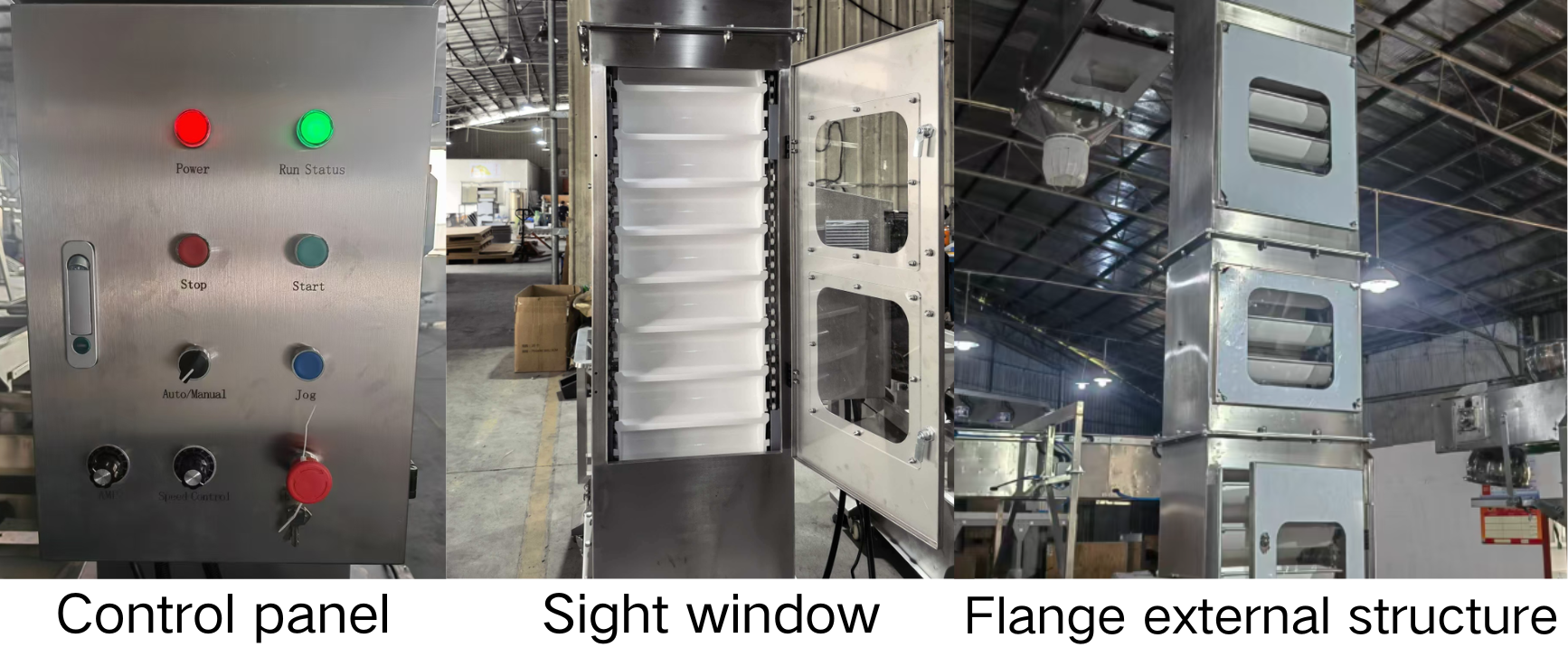

l Stainless steel steel construction for frame with visual check windows
l Food grade ABS bucket for material collection
l Hopper capacity customizable
l Outlet height adjustable
l Material collection groove for easy cleaning
l External flange to prevent material retention
Advantages
Summary comparison:
Feature | Traditional Vertical Flange | Outward-Flanged Design |
Anti-Adhesion | Poor, prone to corner buildup | Excellent, no dead zones, self-cleaning |
Blockage Risk | High | Low |
Cleanability | Poor, hygiene dead zones exist | Excellent, easy to clean thoroughly |
Material Adaptability | Narrower,suitable for dry, free-flowing materials | Broad, can handle sticky,damp, fragile materials |
Maintenance Cost | Higher (requires frequent cleaning) | Lower |
Hygiene Standards | Difficult to meet high requirements | Meet food/pharmaceutical grade standards |
Technical Specification
Catalogue/5J179-XX | Z40B | Z18C | 5Z4040B-2 | Z10B | Z18P | Z40P |
Hopper Capacity(L) | 4.0 | 1.8 L | 4.0 | 1.0 | 1.8 L | 4.0 L |
Conveying Capacity(m³/h) | ≤10.8 | ≤4.8 | ≤10.8 | ≤2.2 | ≤4.8 | ≤10.8 |
Outlet Height(mm) | 2800～3100 | 3700～4000 | 2800～3100 | |||
Power Supply | 0.75 kW, AC220V, 50Hz | 1.5 kW, AC220V, 50Hz | 0.75kW, AC220V, 50Hz | |||
Number of Outlets | 1 | 1 | 2 | 1 | 1 | 1 |
Flange Structure | Inner flange | External flange | ||||
