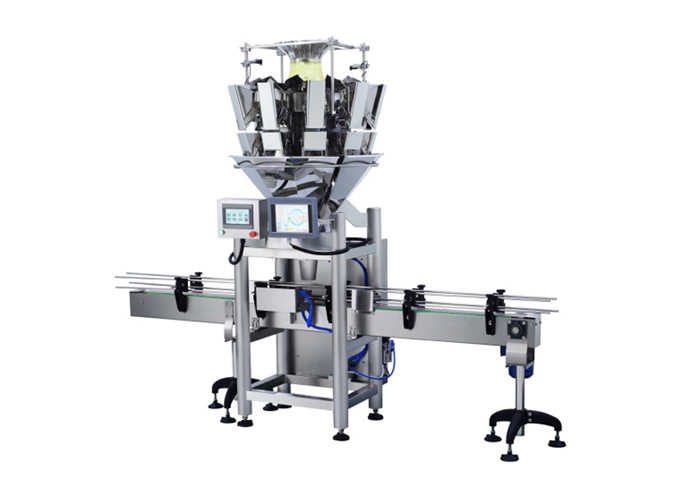

Linear Multi-Head Weigher Integrated Filling Machine Series
  • Linear Multi-Head Weigher Integrated Filling Machine Series
Linear Multi-Head Weigher Integrated Filling Machine Series

Linear Multi-Head Weigher Integrated Filling Machine Series


    Product Code: PP256


    This machine is applicable for filling of various shapes granule products, by combination weighing method, pack inform of can, bottle, box or jar containers.


Inquire Now
Product Introduction


Linear Multi-Head Weigher Integrated Filling Machine Series


Application


This machine is applicable for filling of various shapes granule products, by combination weighing method, pack inform of can, bottle, box or jar containers

Linear Multi-Head Weigher Integrated Filling Machine Series

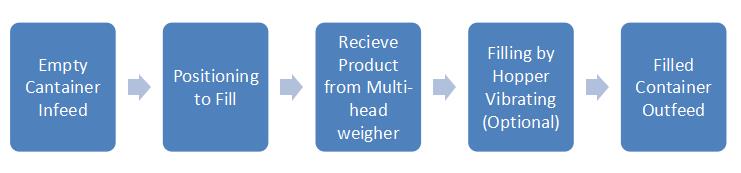

Working Processes


The working processes include the following typical working diagram:




 Linear Multi-Head Weigher Integrated Filling Machine Series




Features


Standard Features



1) Apply for various shape granule product weighing and filling

2) Stainless steel 304 construction for product touching parts

3) Stainless steel 304 construction for other main parts

4) PLC and touch screen HMI for system setting and operation

5) Easy clean round shape main frame and structure

6) Stepper motor driven buckets

7) High precise loadcell and intelligent program enable better accuracy

8) Frequency converting speed control conveyor



Optional Features



1) Weight objector integrated

2) Pattern stainless steel for product touching parts

3) Teflon coating for products touching parts

4) Stainless steel 304 conveyor chain plates

Vibrating type product receive hopper

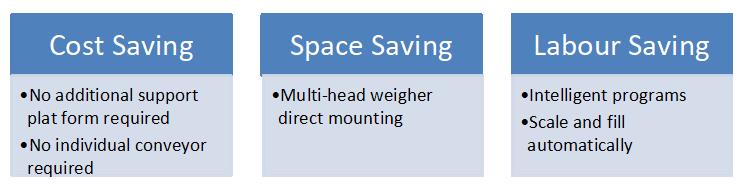

Advantages


Linear Multi-Head Weigher Integrated Filling Machine Series


Technical Specification


Type-1T-xxxx1010/100810091405
Filling Speed20-40 CPM15-30 CPM30-50 CPM
Weighing Heads10914
Weighing Range5-500gram5-1000gram3-500gram
Accuracy+/- 0.5-2gram+/- 0.5-2gram+/- 0.5-1.5gram
Weighing Bucket 1.0/0.8 Liter1.8 Liter0.5 Liter
Buffer Bucket1.0/0.8 LiterNA0.5 Liter
Power SupplyAC220 50/60HzAC220 50/60HzAC220 50/60Hz
Power Consumption2.0Kw2.0Kw2.5Kw
Compress Air Supply0.6-0.8Mpa0.6-0.8Mpa0.6-0.8Mpa


Note:



1) The weighing range subject to the shape and density of the products

2) The filling speed affected by characteristic of products, target weight and accuracy
