Product Code: PP327

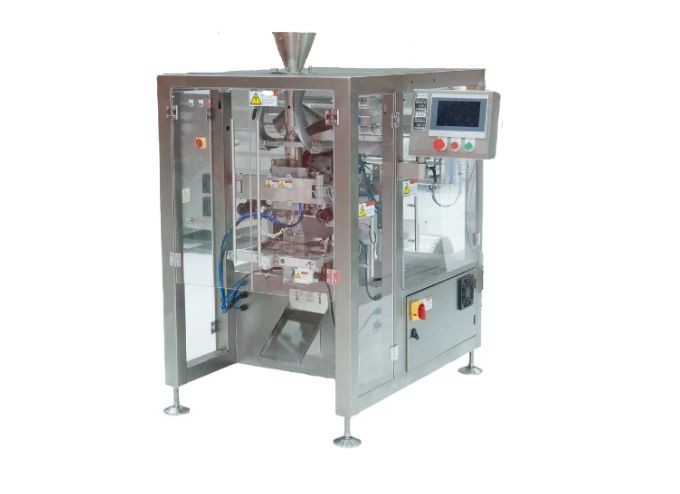

This High Speed Servo Model VFFS Packing Machine is designed for heavy loads and suitable for high-speed operation. It is ideal for stick or 3 sides sealed sachet form fill and seal.
This machine is applicable for bag forming, filling, sealing packing with roll film.
Configured with different type of dosing devices, it is applicable for various materials packing, such as flour, oatmeal, coffee beans, juice, sauce, etc.
This machine applies to fill and seal stick or 3 sides sealed sachet form.

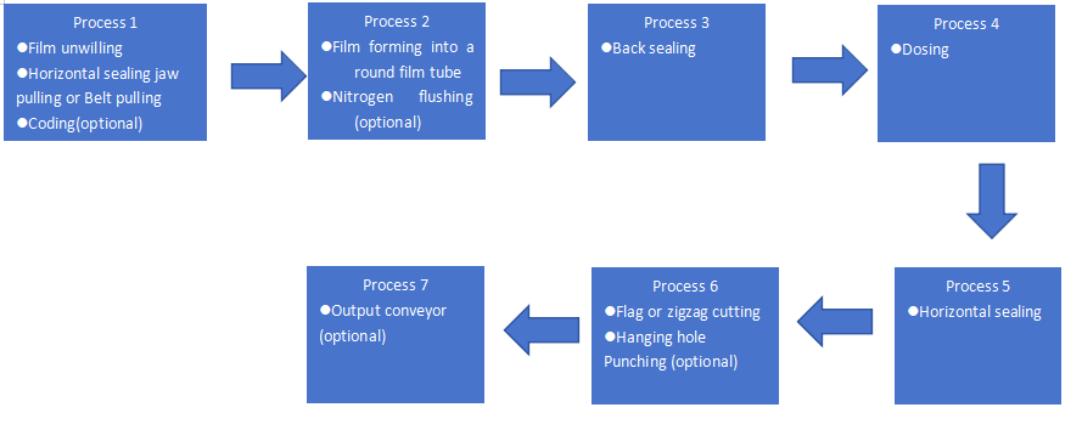

The working processes include: laminate packaging film pulling, vent valve adding, bag forming, dosing, then filling, sealing and discharging.
Features
l Alternatively apply for stick or 3 sides sealed sachet form fill and seal
l Mainly stainless-steel 304 construction for food grade packing
l Heavy duty design suits for high-speed operation
l Touch screen HMI Control‚ easy for parameter setting and troubleshooting
l Film pulling Method: Servo Motor
l Horizontal sealing method: Integrated with film pulling clamper
l Intelligent temperature controlling configuration‚ ensure the artistic and neat sealing
l Configure with packaging film tension control‚ to enable stable pouch making
l Smaller size‚ flexible for space adaption
l Designed for simple operation and maintenance, one operater requiring for the full system managment
l Exclude measuring device, Equip with different measuring devices to achieve the packaging of different materials
l Rotary Volumetric Cup
l Support Platform
l Z Shape Elevator
l Auger Filler
l Ribbon Coder
l Incline Discharge Conveyor
l Vaccum Film Pulling Device
lApply for stick or 3 side sealed sachet form fill and seal
lNo built-in weigher
lComatible with various weighers for diverse materials
lStable for film Pulling
lHigher packing speed
| Type | DL-100A | ZL-180WZ |
| Packing Speed (pouches/min) | 0-60 | 0-80 |
| Operation Motion | Intermittent | Intermittent |
| Film width range(mm) | 50-200 | 100-320 |
| Bag size(mm) | L:50-150 ; W: 25-100 | L:50-190 ; W: 50-160 |
| Compressed Air Supply | >=6kg/cm3 ‚ 0.15 L/min | >=6kg/cm3 ‚ 80 L/min |
| Power Consumption(KW) | 3.1 | 3.5 |
| Power Supply | 220 VAC /1P+N+E/ 50 Hz | 220 VAC /1P+N+E/ 50 Hz |
