Product Code: PP327

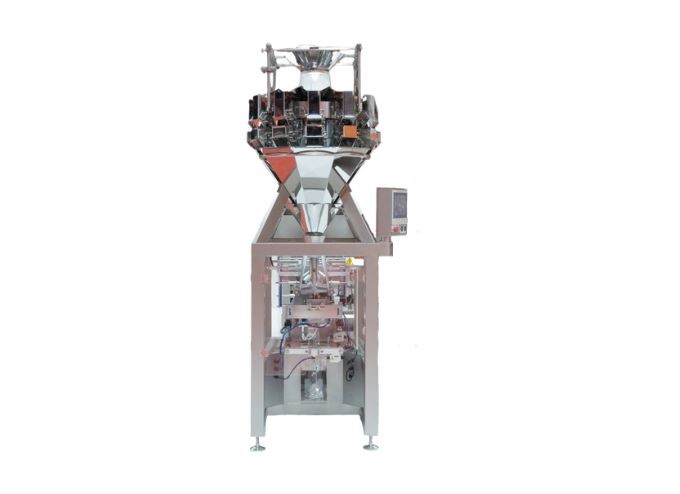

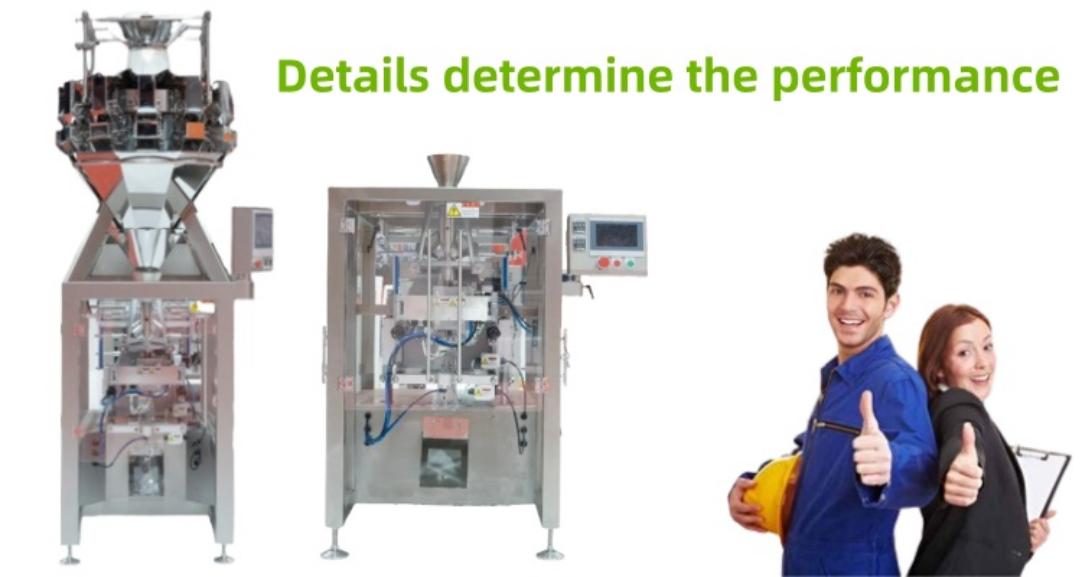

Integrated Multihead Weigher VFFS Packing Machine with full-servo drive technology, this pillow bag form-fill-seal machine delivers high-speed, high-accuracy packaging for granules, while flexibly supporting hole-punched bags, conjoined bags, and hole-punched conjoined bags.
This machine is applicable for bag forming, filling, sealing packing with roll film.
Configured with different type of dosing devices, it is applicable for various materials packing, such as flour, oatmeal, coffee beans, juice, sauce, etc.
This machine applies to roll film packing with laminate heat sealable material, such as PET/AL/PE and Kraft paper/AL/LLDPE, etc.

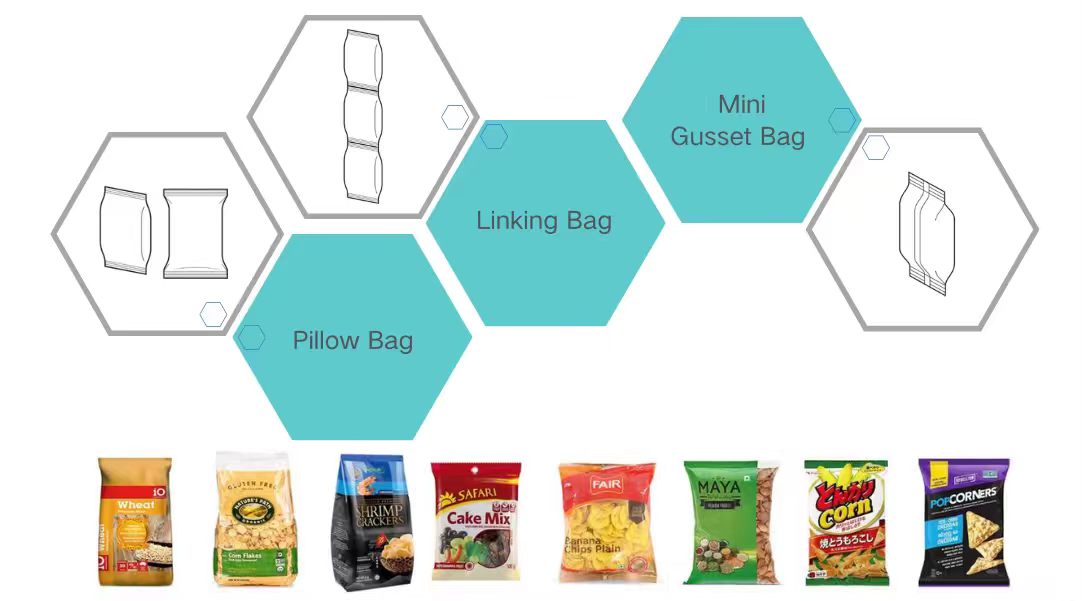

Configure different designs for filling and sealing pillow bags, with optional for hole punching bag, conjoin bag, and hole conjoin bag package.

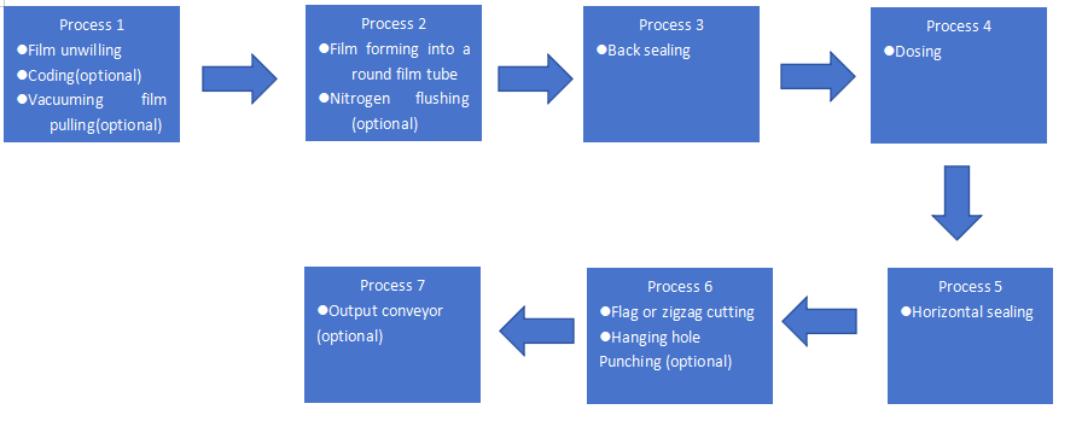

The working processes include: laminate packaging film pulling, vent valve adding, bag forming, dosing, then filling, sealing and discharging.
Features
l Apply for pillow bag form fill and seal, optional for hole punching bag, conjoin bag, and hole conjoin bag package
l Configured multihead weigher for granule packing
l Easy to changover bag former in minutes for different bag width quickly
l Touch screen HMI Control‚ easy for parameter setting and troubleshooting
l Mainly stainless-steel 304 construction for food grade packing

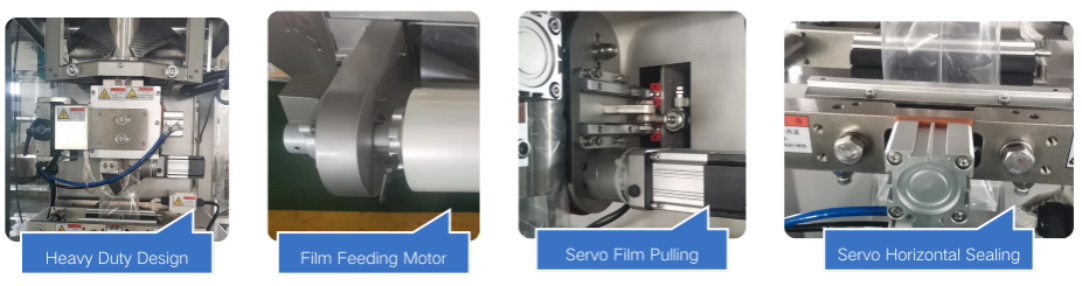

l Heavy duty design suits for high-speed operation
l Film pulling Method: Servo Motor
l Horizontal sealing method: Servo Motor
l Servo motors configuration enable high-precision positioning and enhanced operational speed/stability
l Intelligent temperature controlling configuration‚ ensure the artistic and neat sealing
l Configured with packaging film tension control‚ to enable stable pouch making
l Smaller size‚ flexible for space adaption
l Designed for simple operation and maintenance, one operater requiring for the full system managment
l Support Platform
l Z Shape Elevator
l Ribbon Cader
l Incline Discharge Conveyor
l Vacuum Film Pulling Device
l String pouch cutting device
l Gusset Forming Device
l Air Deflation Device
l Hang Hole Punching Device
l3-servo motors design for faster packing
lIntegrated multi-head scale occupies minimal space
| TYPE | ZL-180PX |
| Packing Speed (pouches/min) | 0-80 |
| Operation Motion | Intermittent |
| Film width range(mm) | 100-320 |
| Bag size | L: 50-190 mm W: 50-150 mm |
| Compressed Air Supply | >=6 kg/cm3‚80 L/min |
| Power Consumption(KW) | 3.5 |
| Power Supply | 220 VAC /1P+N+E/ 50 Hz |
