Product Code: PP327
This continuous‑motion pillow bag VFFS packaging machine integrates form‑fill‑seal functions and is designed for standard pillow bags. It supports various dosing devices including multi‑head weighers, ensuring accurate filling of granules, powders, liquids, and viscous products. It offers an efficient and versatile automated packaging solution.
Related Video
This machine is applicable for bag forming, filling, sealing packing with roll film.
Configured with different type of dosing devices, it is applicable for various materials packing, such as flour, oatmeal, coffee beans, juice, sauce, etc.
This machine applies to roll film packing with laminate heat sealable material, such as PET/AL/PE and Kraft paper/AL/LLDPE, etc.

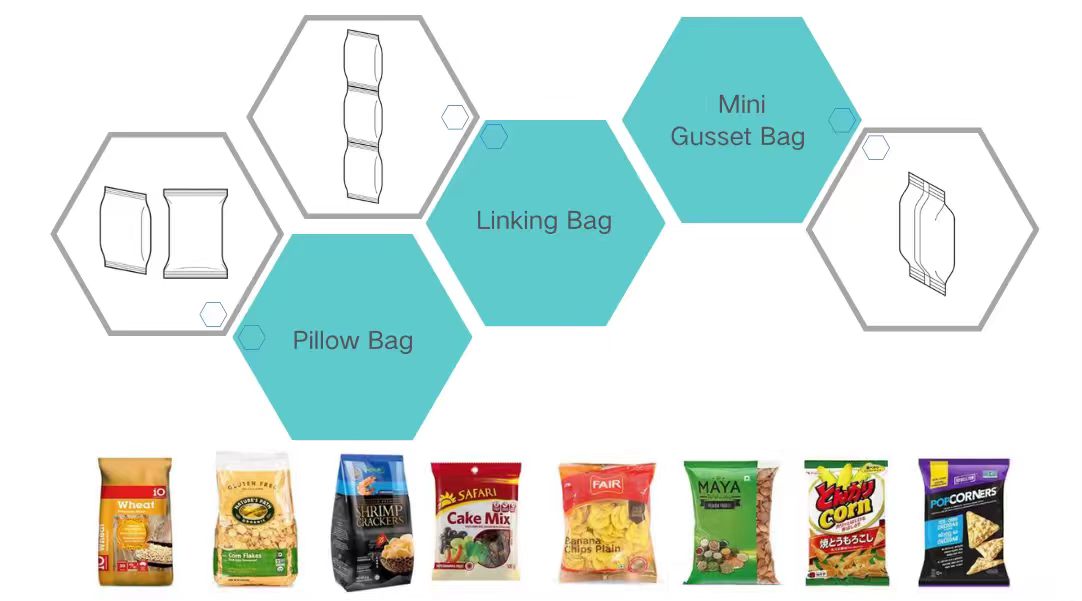

Configure different designs for filling and sealing pillow bags, with optional for hole punching bag, conjoin bag, and hole conjoin bag package.

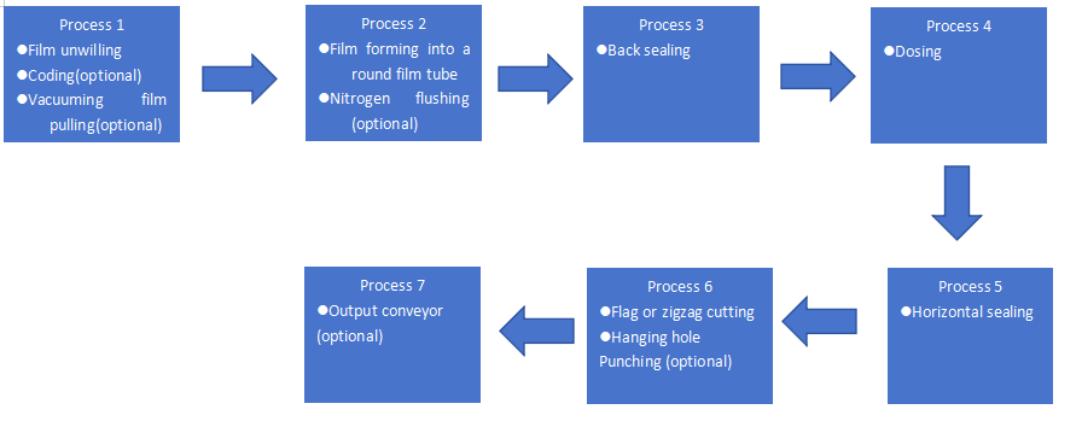

The working processes include: laminate packaging film pulling, vent valve adding, bag forming, dosing, then filling, sealing and discharging.
Features
l Apply for pillow bag form fill and seal, optional for hole punching bag, conjoin bag, and hole conjoin bag package
l Optional dosing devices available, such as multi-head weighers, auger fillers, volumtric cup fillers, and liquid pumps
l Easy to changover bag former in minutes for different bag width quickly
l Touch screen HMI Control‚ easy for parameter setting and troubleshooting
l Mainly stainless-steel 304 construction for food grade packing
l Heavy duty design suits for high-speed operation
l Film pulling Method: Servo Motor
l Horizontal sealing method: Servo Motor
l Servo motors configuration enable high-precision positioning and enhanced operational speed/stability
l With servo-controlled sealing jaws movement, the system achieves continuous operation with high speed performance
l Intelligent temperature controlling configuration‚ ensure the artistic and neat sealing
l Configured with packaging film tension control‚ to enable stable pouch making
l Smaller size‚ flexible for space adaption
l Designed for simple operation and maintenance, one operater requiring for the full system managment
l Rotary Volumetric Cup
l Support Platform
l Z Shape Elevator
l Auger Filler
l Ribbon Coder
l Incline Discharge Conveyor
l Vacuum Film Pulling Device
Advantages
l Continuous operation for high-speed perfermance
l Optional dosing devices available,fit diverse materials
l Swap former to adjust bag width quickly
Technical Specification
| TYPE | ZL-180WZH | ZL-200WF |
| Packing Speed (pouches/min) | 0-120 | 0-120 |
| Operation Motion | Continuous | Continuous |
| Film width range(mm) | 100-320 | 200-420 |
| Bag size(mm) | L 50-190 ; W 50-150 | L 50-275 ; W 90-200 |
| Compressed Air Supply | >=6 kg/cm3‚ 80 L/min | >=6 kg/cm3‚ 80 L/mi |
| Power Supply | 220 VAC /1P+N+E/ 50 Hz | 220 VAC /1P+N+E/ 50 Hz |
| Power Consumption(KW) | 3.5 | 3.5 |
