Product Code:PP327A

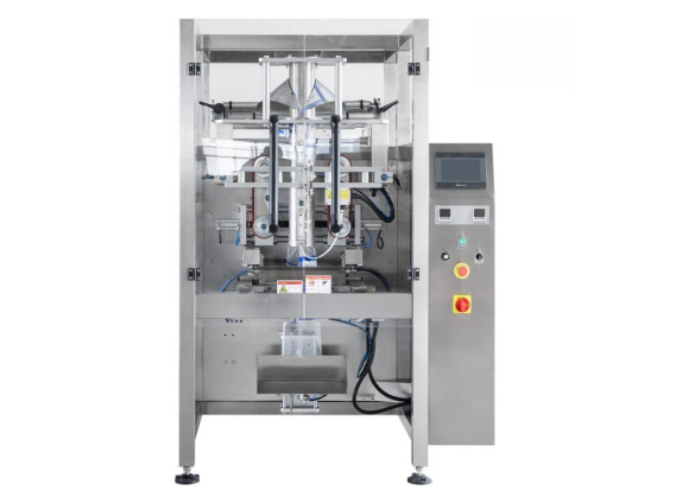

Continuous VFFS packing machine built on an SS304 frame with
multi-servo drives for precision and speed.
High-standard craftsmanship, intelligent sealing control,
and versatile dosing ensure high-efficiency,
stable operation across diverse product types
Related Video
This machine is applicable for film forming filling and sealing of flat pillow pouch or side gusset pouch.
By configure with different metering devices, suitable for packing powder, granule, liquid or other irregular solidity, etc.

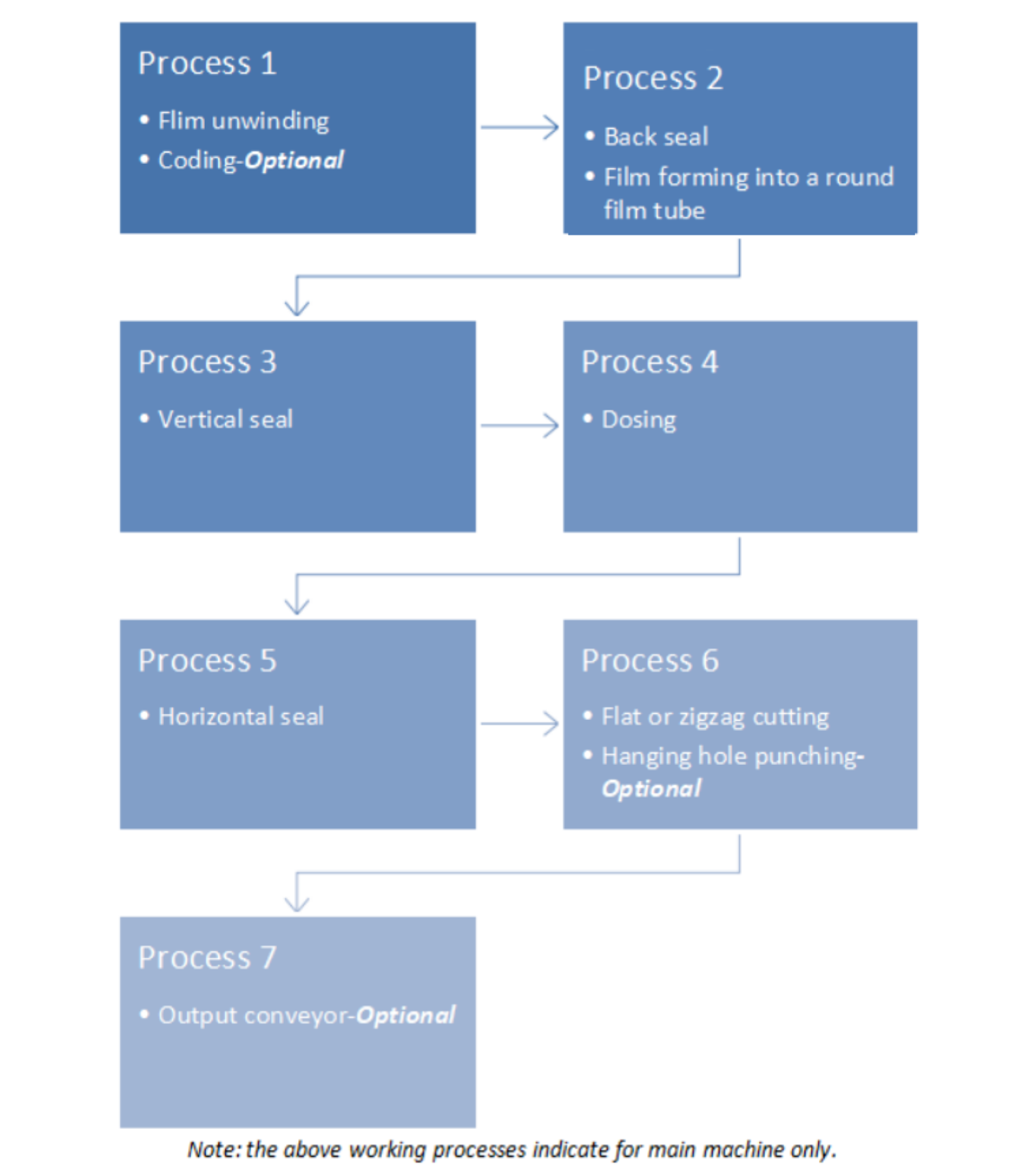

Working Processes
Features
l Suitable for pillow bags; optional gusseted bags, hole-punch bags, chain bags, and chain bags with hole-punch
l Compatible with various metering devices: multi-head weigher, auger filler, volumtric cup, and liquid pump – enabling fully automatic packaging for various product types
l Bag width quickly adjustable via different forming tubes
l Touch screen HMI control for easy parameter setting and fault diagnosis
l Main structure with 304 stainless steel, for food-grade standards
l Servo-driven film pulling for precise positioning, faster and more stable operation
l Heavy-duty design, suitable for high-speed running
l Simple operation and maintenance; single operator can run the entire system
l Gusseted pouch capability
l 3-side sealed pouch
l Flat or zigzag cutting
l Hanging hole punching

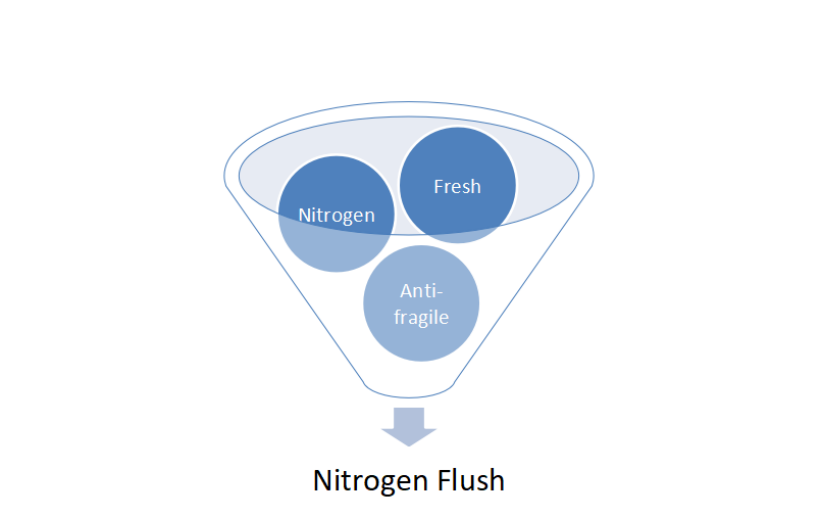

l Nitrogen flush (gas flushing)
l Embossing, ribbon coding, inkjet printing, or laser coding
Technical Specification
Catalogue/PP327A-XXX | 320 | 420 | 520 | 620 |
Packaging Speed(bags/min ) | 0-80 bags/min | |||
Operation Motion | Intermittent | |||
Max Film Width(mm) | 320 | 420 | 520 | 620 |
Bag Size(mm) | L:50-240 W:50-150 | L:80-300 W:60-200 | L:80-300 W:100-250 | L:150-400 W:100-300 |
Compressed Air Supply(m³/min) | 0.8 MPa 0.5 m³/min | |||
Power Consumption(kW) | 2.2 kW | |||
Power Supply | 220 VAC / 2P+N+E / 50 Hz | |||
Catalogue/PP327A-XXX | 720 | 820 | 1020 |
Packaging Speed(bags/min ) | 0-70 | 0-50 | 0-30 |
Operation Motion | Intermittent | ||
Max Film Width(mm) | 720 | 820 | 1020 |
Bag Size(mm) | L:80-450 W:120-350 | L:200-500 W:180-400 | L:200-600 W:200-500 |
Compressed Air Supply(m³/min) | 0.8 MPa 0.5 | ||
Power Consumption(kW) | 2.2 | 3.0 | 3.0 |
Power Supply | 220 VAC / 2P+N+E / 50 Hz | ||
