Product Code:PP158

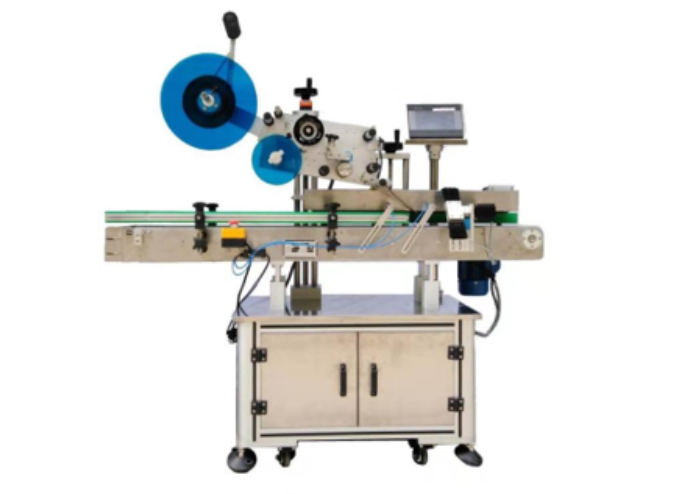

Automatic flat surface labeling machine for flat/large-arc surfaces. Built with 304 stainless steel, featuring photoelectric no-object/no-label interlock, stepper motor drive (±1 mm accuracy), and PLC touch-screen control.
Related Video
Suitable for flat and large-arc surface labeling on paper, cards, flat bags, folders, boxes, cartons, and round cans. Commonly used in electronics, food, pharmaceutical, and logistics industries.
Features
lSuitable for labeling on flat surface‚ large circular arc surface‚ such as paper‚ card‚ flat bags‚ folder‚ box and carton etc
lMainly Stainless Steel 304 and High Class aluminum alloy construction
lIntelligent optic-electric detecting‚ no object no labeling interlock
lStepper motor driven‚ optic-electric sensing‚ and unique label driving mechanism‚ enhance the precision of labeling
lPLC with touch screen control
lEasy change over design
l Separating device and outfeed magazin
for automatic separation and collection of thin sheet‑type products
l Integrated thermal transfer printer
enables variable data printing simultaneously with labeling
l Top pressing mechanism
ensures more stable labeling, ideal for corner-fold applications or taller products
l Vacuum label pick-up and placement
for top-side labeling, ensuring smooth label application
l Bottom pick-up and labeling mechanism
specially designed for bottom-side labeling
Advantages
l High Precision: Labeling accuracy up to ±1 mm (subject to product and label tolerances), meeting high‑standard packaging requirement
l High Efficiency: Speeds up to 200 labels/min (depending on model and product size), effectively improving production line throughput
l Reliable Performance: Stepper motor and photoelectric sensing, combined with all-stainless-steel construction, ensure stable long-term operation
l Flexible Adaptation: Multiple infeed options (belt/page-feeding), labeling directions (top/bottom/corner), and optional add-ons allow customisation for diverse applications
Technical Specification
Catalogue/1J-T-XXX | 301A | 301B | 301C |
Number of Label | 1 / top side | ||
Width of Label(mm) | 20 – 120 | 20 – 175 | 20 – 150 |
Length of Label(mm) | 20 – 400 | 6 – 250 | 6 – 250 |
Labeling Speed | 40 – 150 labels/min | 40-200 labels/min | 19 m/minute, 40-150 labels/min |
labeling Tolerance | ±1 mm | ||
Dimension of Products | L/40-400mm‚ W/40-200mm‚ H/20-150mm | L/60-250mm, W/60-220mm, H/0.2-20mm | L/30-280mm, W/40-100mm, H/30-200mm |
Power Supply | AC 220V 50/60Hz, 500W | ||
Catalogue/1J-T-XXX | 301D | 301BP | 301F |
Number of Label | 1 / top side | ||
Width of Label(mm) | 15 – 175 | 20 – 175 | 20 – 120 |
Length of Label(mm) | 20 – 320 | 6 – 250 | 20 – 400 |
Labeling Speed | 30-60 labels/min | 40-200 labels/min | 30-80 labels/min |
labeling Tolerance | ±1 mm | ||
Dimension of Products | W/D/25-100mm, H/25-230mm | L/60-250mm, W/60-220mm, H/0.2-20mm | L/40-400mm‚ W/40-200mm‚ H/20-150mm |
Power Supply | AC 220V 50/60Hz, 500W | ||
