Product Code:PP346

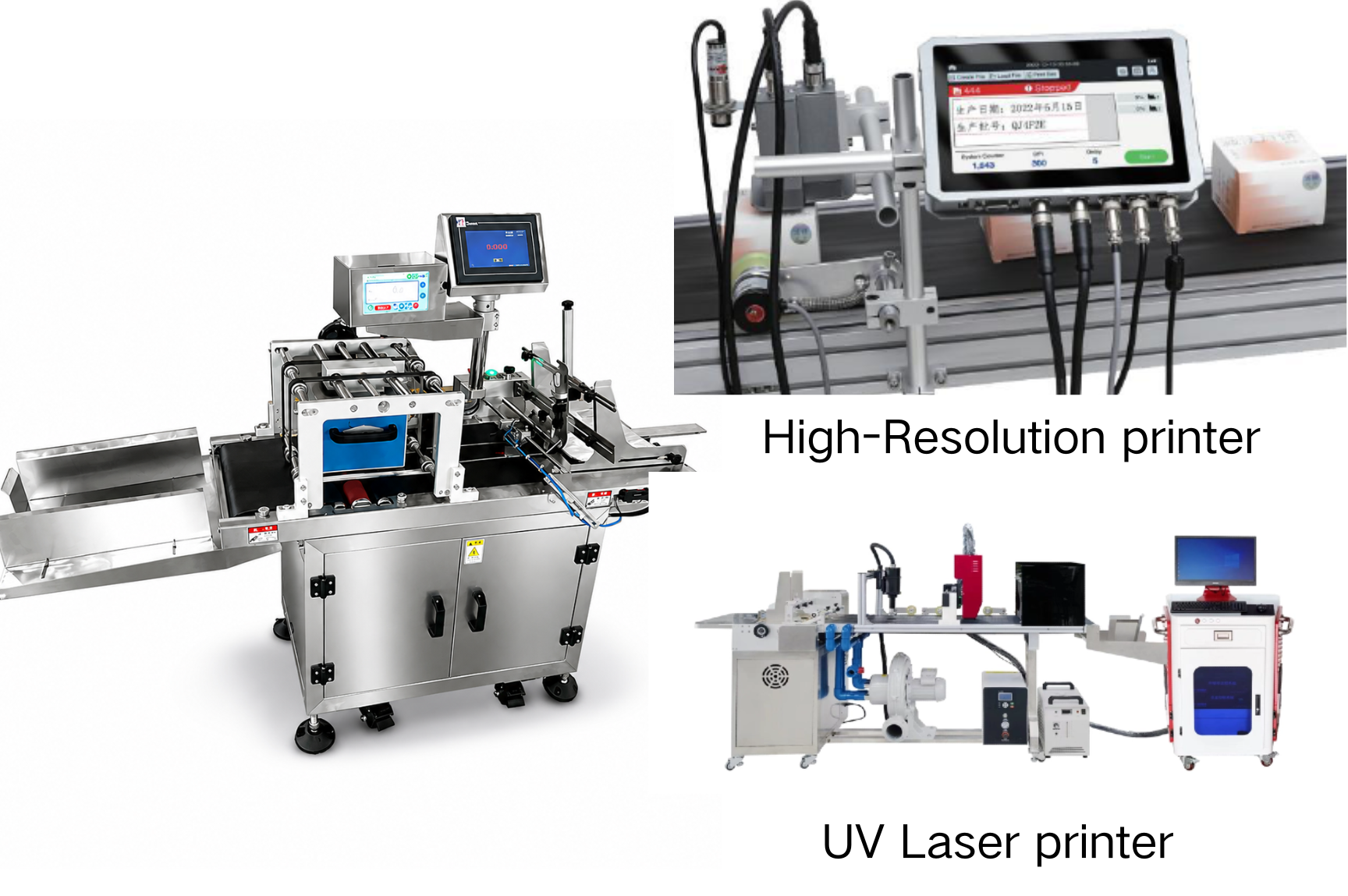

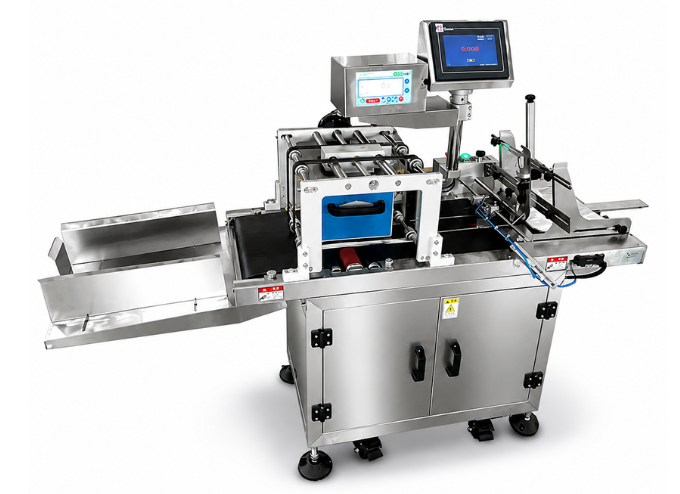

Automatic paging and printing machine for flat packaging and cartons. Built with stainless steel, featuring intelligent paging, high-resolution printing (thermal transfer/inkjet), encoder synchronization (±1 mm accuracy), and PLC touch-screen control.
Related Video

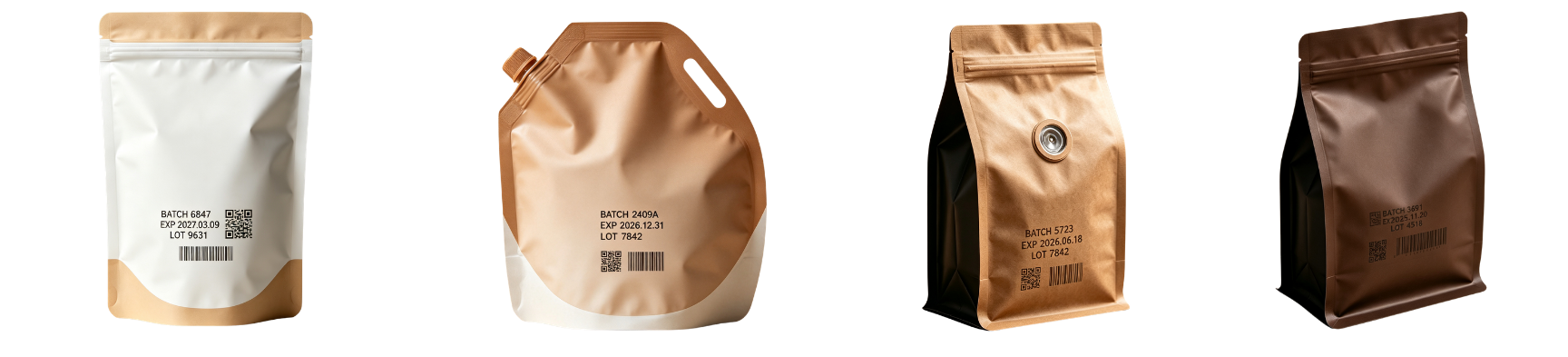

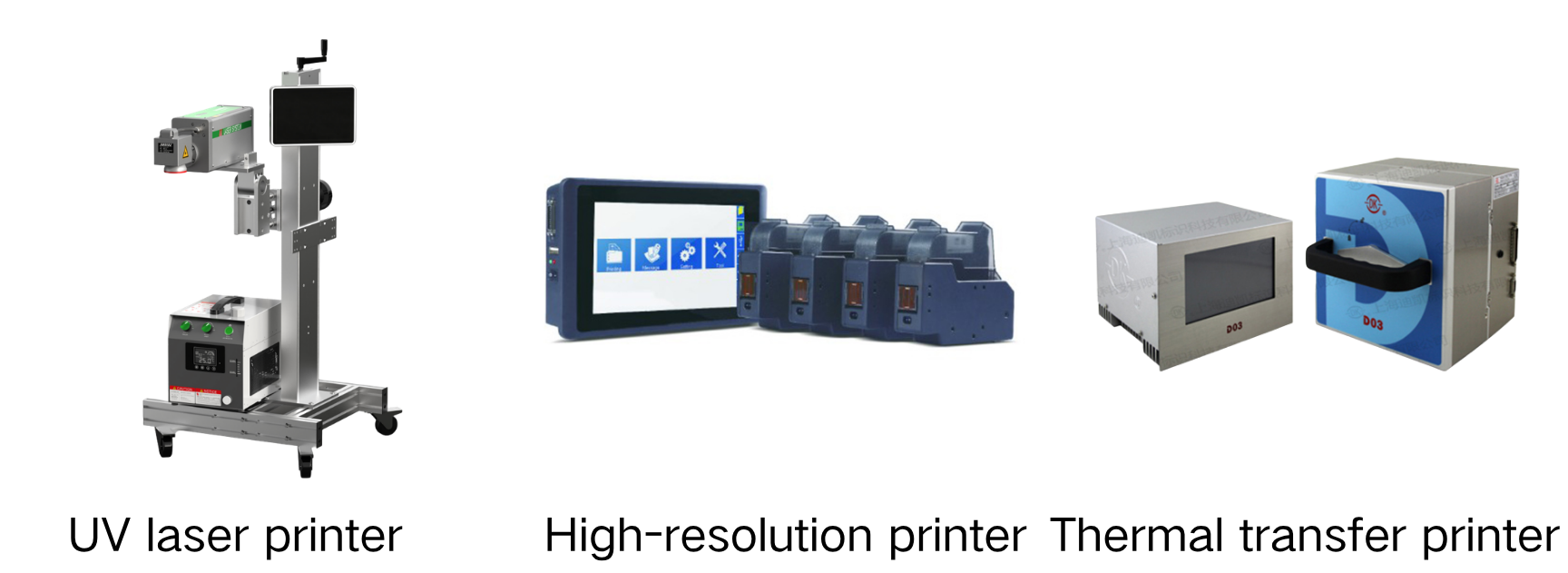

Suitable for various bag types, integrated with thermal transfer coder, UV laser marker or high-resolution inkjet printer to realize automatic sheet separation and coding.
Features
l High resolution printer integrated with paging machine
l Apply for industrial non-contact high resolution inkjet printing

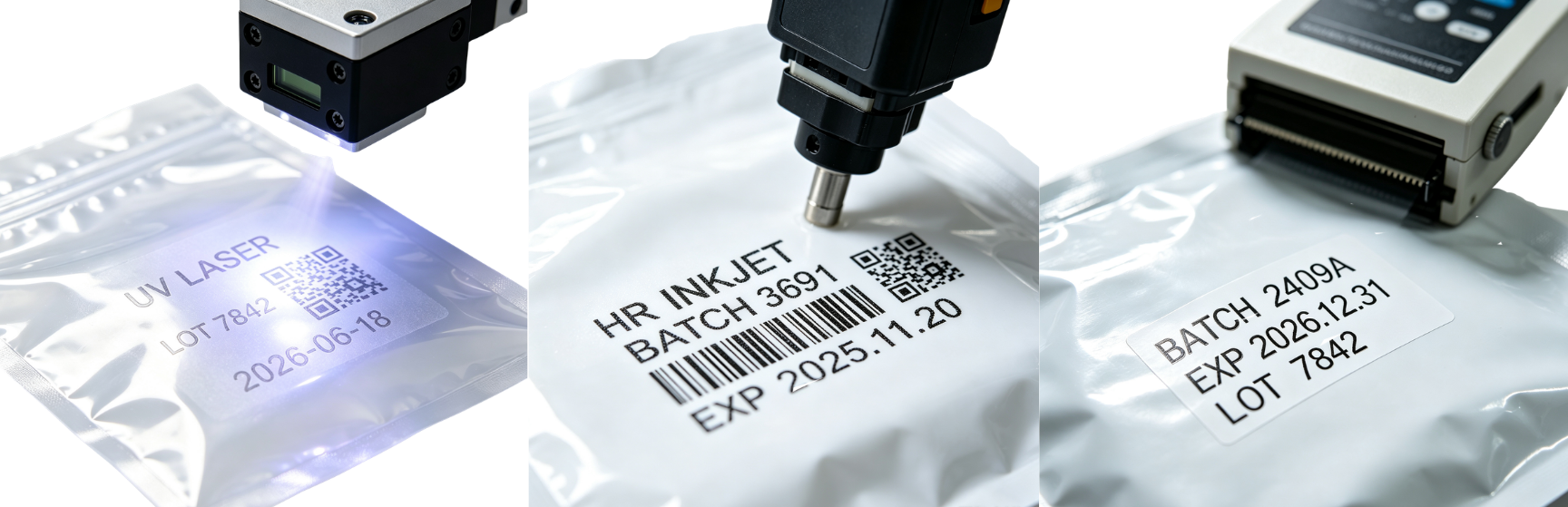

l Print features include date‚ time‚ batch number‚ logo ‚ QR code‚ barcode and trademark
l Configure with international brand modular inkjet print cartridge
l Linux system with touch screen control
l Apply for paging and printing，different paging mechanism to adapt different kinds of products, like plastic bags , or carton
l Tool less mechanism for printing positioning
l Equipped with encoding for printing speed adjustment
l External data interface– RS232,USB,or Ethernet for integration with host systems and variable data databases
l Corona treatment unit– improves ink adhesion on difficult substrates
l UV curing system– instant drying for UV ink, enabling high speed printing on non porous material
l Multiple print heads– expandable to 2, 4, or more heads for wider or multi lane printing
l Custom print widths– beyond standard 54 mm, tailored to specific requirements
l Outfeed stacking/conveyor– automatic collection of printed products for downstream handling
l Customized paging mechanisms– for special product shapes
Advantages
l Flexible: different coding equipment applied according to customers actual production requirements.
l High efficiency: independent coding system with high-speed operation;Independent of packaging machine running status
Technical Specification
Catalogue | 812+53LC | 812-53UV |
Printing Method | Thermal Printing | Continuous UV Printing |
Applicable Width (mm) | 120 – 300 | |
Max Applicable Length (mm) | 400 | |
Printing Size (W × L) | 53 × 75 (intermittent) | 54 mm width |
Resolution | 300 DPI | |
Printing Accuracy | ±1 mm | |
Air Supply | 0.6 – 0.8 MPa | |
Catalogue | 12HR | 25HR | 50HR |
Printing Method | High-Resolution Printing | ||
Print Heads | 1 | 2 | 4 |
Printing Height (mm) | 12.7 | 25.4 | 50.8 |
DPI (max) | 600 | ||
Printing Speed | 60 m/min (max) | ||
Power Supply | 220 VAC, 50 Hz | ||
