Product Code:PP337

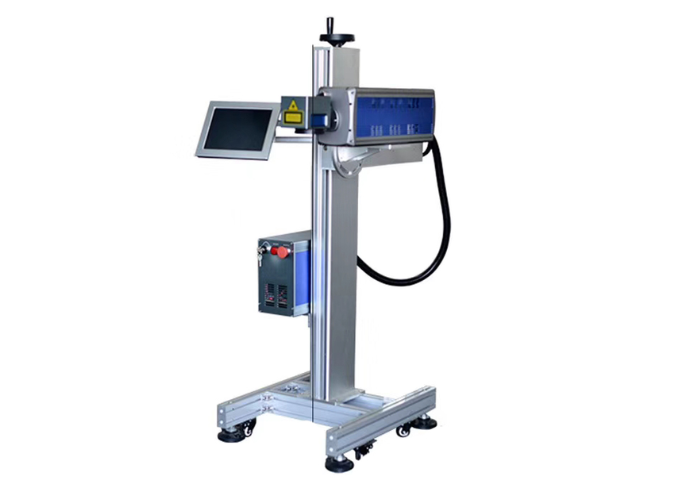

This device is designed for industrial contactless laser marking, capable of printing dates, times, batch numbers, labels, QR codes, barcodes, and trademarks on product surfaces.
Related Video
Laser marking machines are widely used for labeling various bags, bottles, boxes, and similar containers. Three light sources are available: CO₂, ultraviolet (UV), and fiber optic. Each source offers distinct advantages when printing on products such as pre-made bags, cans, and films.
Features
Standard Features
l Industrial non-contact laser printing for permanent marking
l Prints date, time, batch number, logo, QR code, barcode and trademark
l Easy integration at any position of the production line
l High grade CPU with touch screen control
l Multi-language HMI: English and Chinese standard, customizable
l USB, photoelectric interface and RS232 external interfaces
l Stable performance with 220VAC single phase power supply
l Maximum printing speed up to 18 meters per minute
l Multiple printing ranges: 90×90mm, 350×350mm, 500×500mm, 700×700mm
l UV laser type: 3W, 5W, 10W power options
l CO2 laser type: 20W, 30W power options with dust collecting device
l Customizable HMI languages: Turkish, Arabic, Korean, Italian
l Water cooling system for high power models
l Stand-alone installation kit for independent operation
Laser Source | Type | Suitable Materials | Marking Feature | Main Usage |
CO₂ | Thermal IR | Paper/painted metal/ PET bottles/films | Surface scorching, needs dust removal | Cartons, beverage bottles, films |
Fiber | Cold 1064nm | Uncoated metal, hard materials | Non-damaging, poor effect on films | Metal cans & caps |
UV | Cold 355nm | Films, heat-sensitive materials | Exquisite marking, no thermal damage | Pouches, QR codes, electronics |
Technical Specification
Catalogue | 9300 /3W UV | 91000 /10W UV | 9500 Series /5W UV |
Laser Type | UV Ultraviolet Laser | ||
Printing Range | 90×90 mm | 90×90 mm | 350×350 / 500×500 / 700×700 mm |
Rated Output Power | 3W | 10W | 5W |
Cooling Method | Water Cooling | ||
External Interface | USB / Photoelectric Sensor / RS232 | ||
Power Supply | 220VAC, Single Phase, 50Hz | ||
Max Printing Speed | 18 m/min | ||
Catalogue | KD20 /20W CO2 | KD30 /30W CO2 |
Laser Type | CO2 Infrared Laser | |
Printing Range | 90×90 mm | |
Rated Output Power | 20W | 30W |
External Interface | USB / Photoelectric Sensor / RS232 | |
Power Supply | 220VAC, Single Phase, 50Hz | |
Max Printing Speed | 18 m/min | |
Catalogue | F20 /20W Fiber | F30 /30W Fiber |
Laser Type | Fiber Laser /1064nm Metal Special Light Source | |
Printing Range | 90×90 mm | |
Rated Output Power | 20W | 30W |
Cooling Method | Air Cooling | |
External Interface | USB / Photoelectric Sensor / RS232 | |
Power Supply | 220VAC, Single Phase, 50Hz | |
Max Printing Speed | 18 m/min | |
