Product Code:PP234

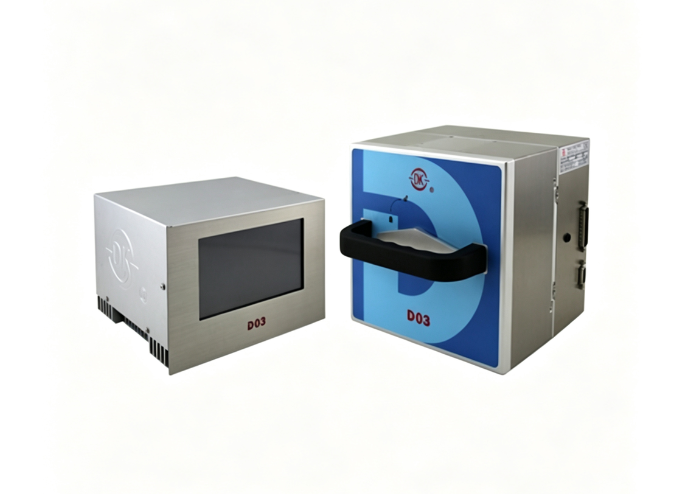

Thermal transfer intelligent printer, designed for high-quality coding and marking on various packaging materials, featuring high-resolution printing and flexible operation modes.
Related Video
Application
This printer is widely used for online printing of production information on product packaging, suitable for food and beverage, pharmaceutical, daily chemical, building materials, electronics and other industries. It can print text, barcodes, QR codes, logos, production dates, batch numbers, expiration dates and other variable information on plastic films, paper, labels, cartons and other materials.
Features
Standard Features
lSuitable for thermal transfer printing on packaging bags and roll films, supporting standard text, barcodes, QR codes, logos, and pattern printing;
lEnables real-time online printing of date, time, and batch code on production lines;
lFeatures interchangeable color ribbons compatible with various packaging substrates including plastic bags, composite roll films, and kraft paper bags;
lOffers multi-color printing options with black as the default color, along with white, red, blue, and yellow;
lSupports both intermittent and continuous printing modes, ideal for intermittent bag packaging stations and high-speed roll film production lines;
lProvides multiple communication interfaces (USB, RS232, Ethernet) for integration with Packaging machines and roll film cutting machines;
lFeatures a mechanically stable structure designed for prolonged continuous high-speed coding on roll films, minimizing ribbon breakage and print defects.
Optional Features
lCustomized widened ribbon module for large-format roll film printing;
lColor-specific high-temperature resistant ribbon kit for composite roll films with high melting points;
lProduction-line synchronized speed-measuring and printing module for high-speed roll film feeding
Advantages
l High-definition Printing for Packaging Materials
Feature 300 DPI high-definition print heads, ensuring that small batch numbers, QR codes, and logos appear clearly without ink blurring on thin film rolls.
l Dual Working Modes Fit Bags & Roll Films
Intermittent Mode: Suitable for premade bag packing with intermittent packing process. Continuous Mode: Designed for high-speed continuous roll folm packing.
l Wide Compatibility & Color Customization
Available in multiple color options, compatible with PE, PP, aluminum foil composite films, kraft paper, and composite packaging bags.
Technicial specification
Catalogue | 4A-D03 |
Print Resolution | 300 DPI |
Operation Mode | Intermittent / Continuous |
Print Area（mm） | Intermittent:32*60 ；Continuous:32*150 |
Ribbon Width(mm) | 22-33 |
Print Speed(m/min) | Intermittent:6-20 ；Max Continuous:40 |
Ribbon Length(meters) | 500 |
Communication Interface | USB, RS232, Ethernet |
Power Supply | 220 VAC, 50 HZ, 200 Watt |
Compressed Air Supply | 0.6-0.8 Mpa |
Catalogue | 4A-D05 |
Print Resolution | 300 DPI |
Operation Mode | Intermittent / Continuous |
Print Area(mm) | Intermittent:53*70；Continuous:53*150 |
Ribbon Width(mm) | 35-55 |
Print Speed(m/min) | Intermittent:6-20；Max Continuous:40 |
Ribbon Length(meters) | 600 |
Communication Interface | USB, RS232, Ethernet |
Power Supply | 220 VAC, 50 HZ, 200 Watt |
Compressed Air Supply | 0.6-0.8 Mpa |
