Product Code:PP369

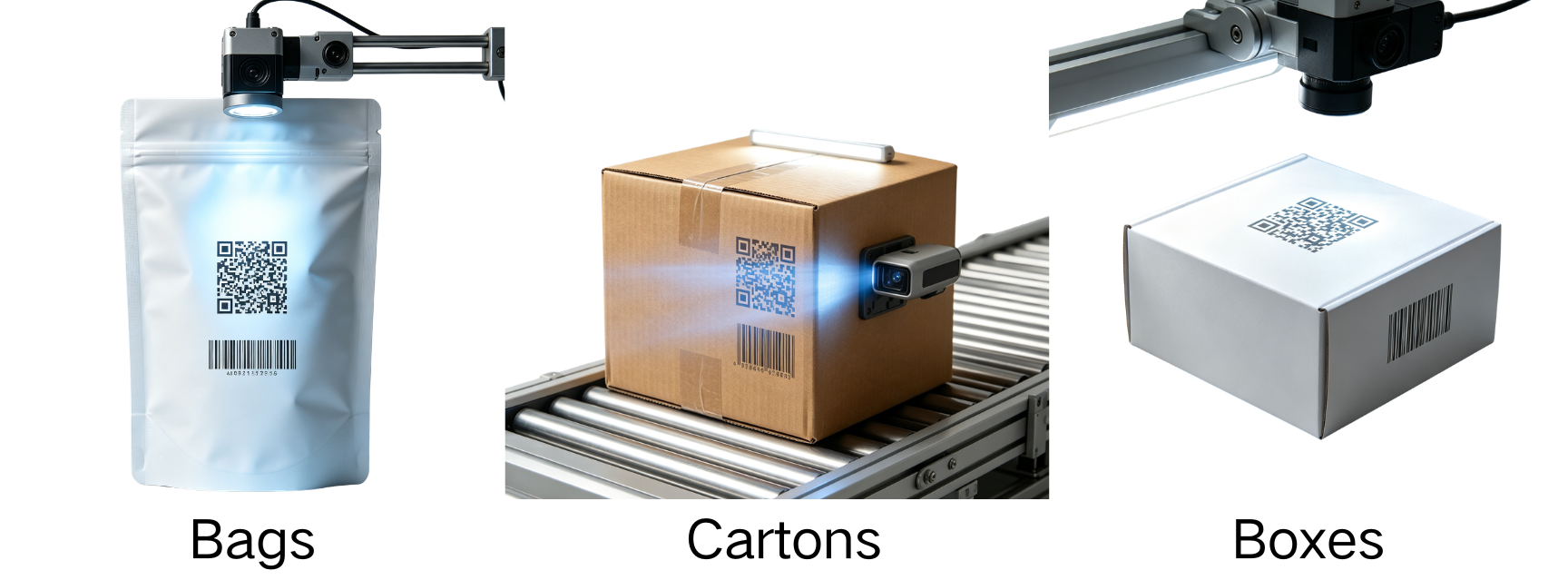

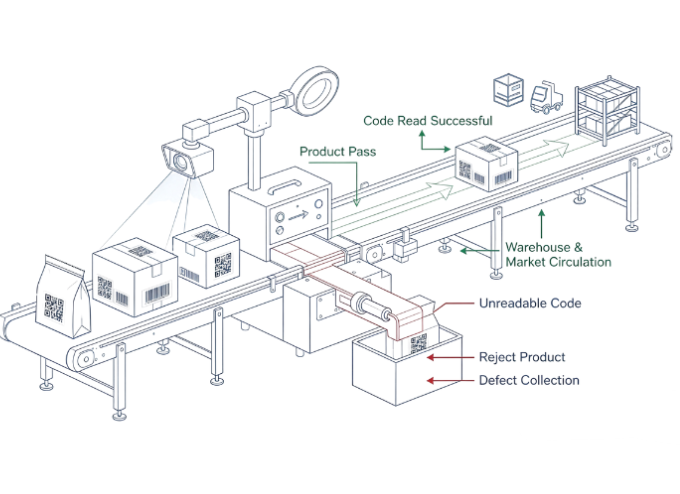

This system is a fully automatic printing inspection and rejection unit, applying for barcode, QR code, and production date verification with integrated rejection.
Related Video
This system is a fully automatic printing inspection and rejection unit, applying for barcode, QR code, and production date verification with integrated rejection.
Features
lUsed for barcode reading, comparison and rejection

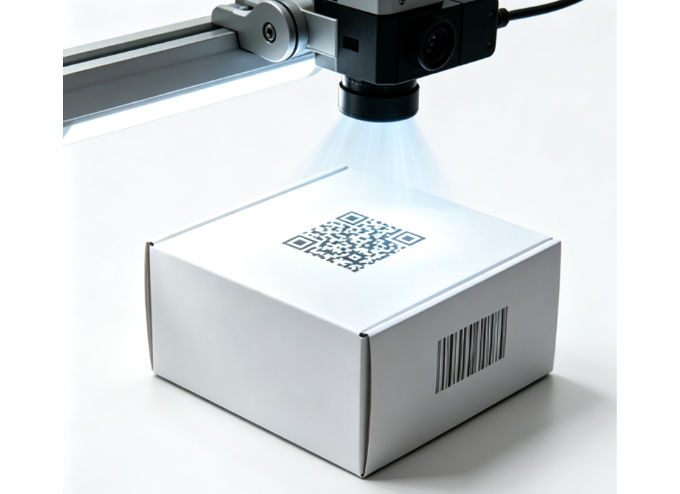

lUsed for visual inspection, comparison and rejection of production dates and QR codes
l Ethernet/IP or Profinet communication for direct integration with plant PLC and MES systems
l Dual-camera configuration for simultaneous front-and-back or mult-side inspection
Technical Specification
Catalogue/A2000-XXXX | P020 | P101 |
Detection Type | Barcode | Production date & QR code |
Main Components | Code reader, industrial PC, software | Vision camera, industrial PC, software |
Rejection Device | Pneumatic Rejector | |
Power Supply (V/Hz) | AC 220V / 50Hz | |
Power Capacity (W) | ≤ 150 | ≤ 200 |
Air Supply (MPa) | 0.4 – 0.6 | |
Min/Max Line Speed(m/min) | Up to 60 | Up to 50 |
Communication | RS232, Ethernet | |
