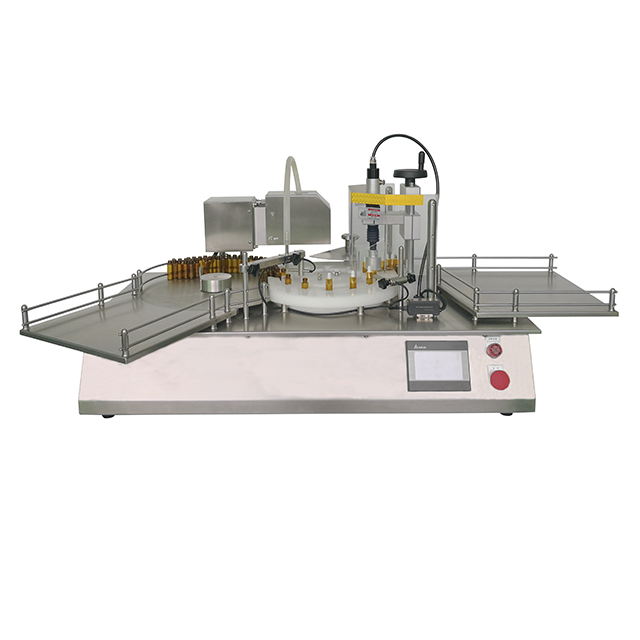

Rotary Ceramic Piston Pump Filling Capping Machine Series
  • Rotary Ceramic Piston Pump Filling Capping Machine Series
  • Rotary Ceramic Piston Pump Filling Capping Machine Series
  • Rotary Ceramic Piston Pump Filling Capping Machine Series
Rotary Ceramic Piston Pump Filling Capping Machine SeriesRotary Ceramic Piston Pump Filling Capping Machine SeriesRotary Ceramic Piston Pump Filling Capping Machine Series

Rotary Ceramic Piston Pump Filling Capping Machine Series


    Product Code: PP311


    This machine is applicable for filling of pharmaceutical, food and cosmetics products in high precise, integrated with capping head to achieve the filling and capping processes.



Inquire Now
Product Introduction

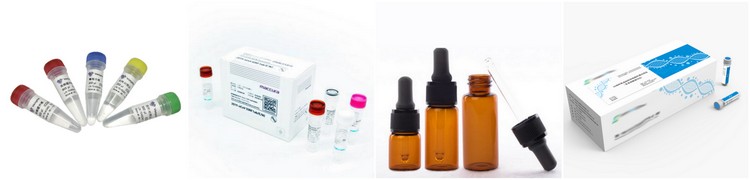

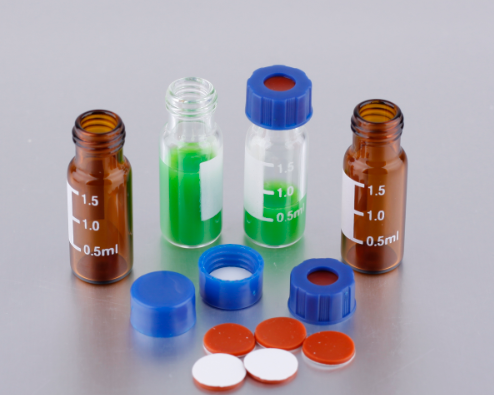

Application


This machine is applicable for filling of pharmaceutical, food and cosmetics products in high precise, integrated with capping head to achieve the filling and capping processes.

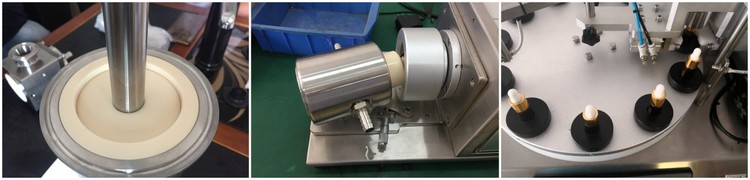

The ceramic piston pump made of high purity, fine grain ceramics used for t fluid filling and dosing applications, which with advantage as below


1)Highly wear-resistant

2)Temperature-resistant

3)Biological- and chemical-resistant

4)Low thermal expansion


Typical filling with alkaline, acids, alcohols, additives, chemicals, abrasive media, corrosive media,  brine, liquid Sulphur, esters, resins, glycerin, hardeners, isocyanates, phenols, asphalt, bitumen, tar, hotmelt, glues, chewing gum mass, amino acids, lotions, shampoos etc


Rotary Ceramic Piston Pump Filling Capping Machine Series

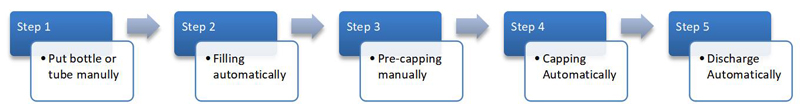

Working Processes


The working processes with the diagram as below


Rotary Ceramic Piston Pump Filling Capping Machine Series



Features


Standard Features


1) Configure with high-purity rotary ceramic piston pump for high precise and consistent repeat filling

2) Filling volume adjustable by regulating the angle of the pump head

3) Servo driven capping chuck configuration for pre-threaded caps, consistent tightness

4) Stainless steel appearance, desktop design

5) PLC and touch screen control

6) Quick change over for different bottle or tube by change of the module

7) No bottle/tube no filling interlock

8) No cap no capping interlock


Optional Features


1) Automatic container sorting for stand alone containers

2) Automatic cap sorting and pre-capping

3) Press on closure

4) Desktop labeling machine

5) Infeed and/or outfeed rotary table

6) Dosage for difficult products


Rotary Ceramic Piston Pump Filling Capping Machine Series


Advantages

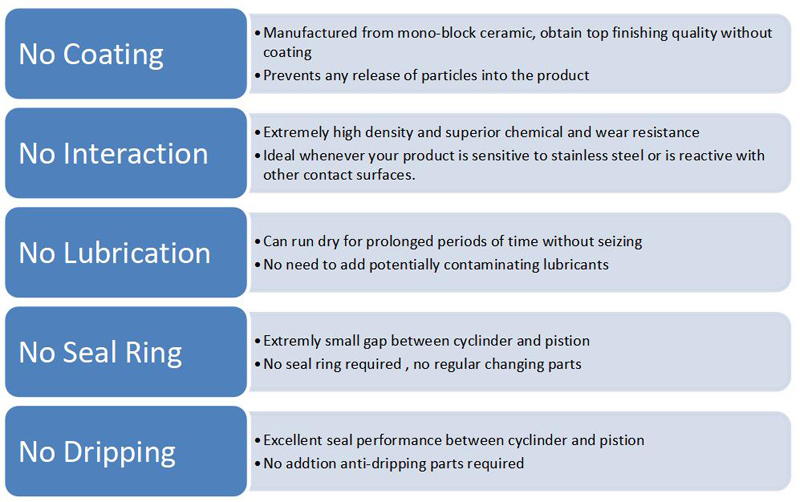

Tips: Why ceramic pumps

Rotary Ceramic Piston Pump Filling Capping Machine Series


Rotary Ceramic Piston Pump Filling Capping Machine Series


Technical Specification


TypeXG-70A-xx
PumpHigh purity ceramic pump with manual volume adjustment
Filling accuracy≦±0.5%
Filling range0.1-2ml      0.5-5ml    1-10ml     2-25ml     5-60ml
Speed20-30 BPM
Dimension710*660*670 mm
Power SupplyAC 220V , Single Phase,  50-60Hz   550W
Air Supply0.4-0.6 Mpa


Related Link

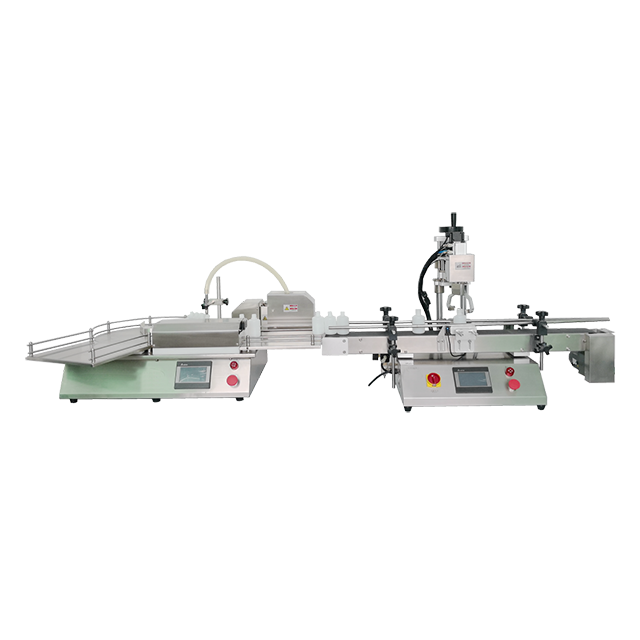

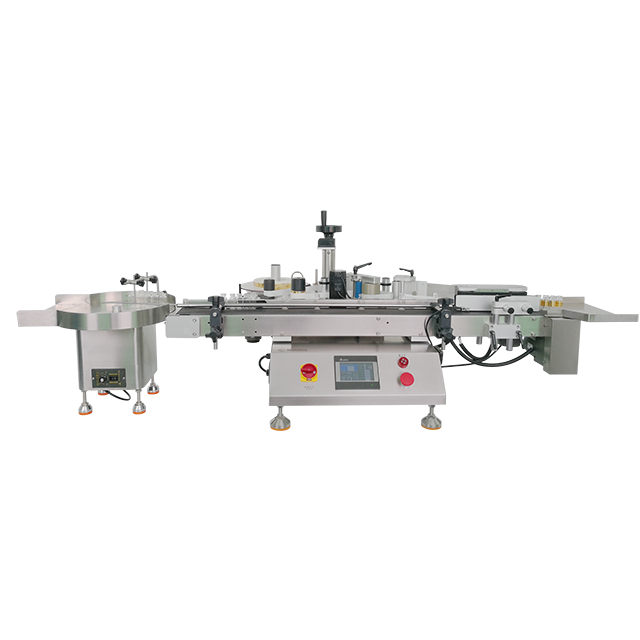

Desktop Round Container Labeling Machine                                     Inline Ceramic Piston Pump Filling Capping Machine
