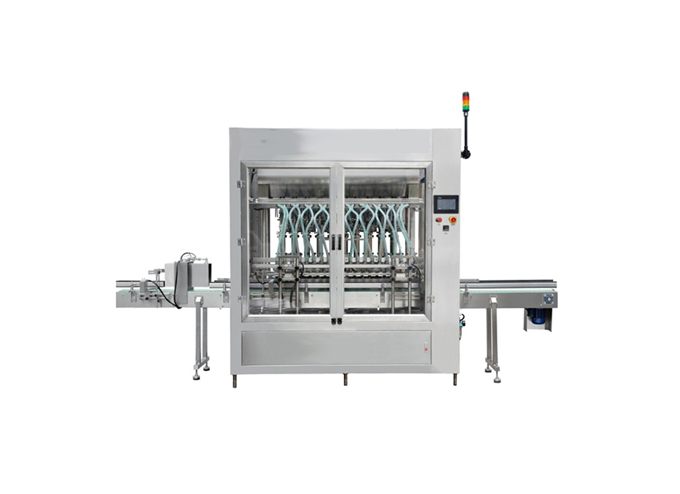

20 Heads Linear Type Piston Type Filling Machine Series
  • 20 Heads Linear Type Piston Type Filling Machine Series
20 Heads Linear Type Piston Type Filling Machine Series

20 Heads Linear Type Piston Type Filling Machine Series


    Product Code: PP211A


    This machine is applicable for the filling of various liquids, liquid creams and sauces with soft particles , for instance , honey, chili sauce, tomato sauce, pearl milk tea, coconut juice, orange juice, ketchup, mayonnaise etc;


Inquire Now
Product Introduction


Application


This machine is applicable for the filling of various liquids, liquid creams and sauces with soft particles , for instance , honey, chili sauce, tomato sauce, pearl milk tea, coconut juice, orange juice, ketchup, mayonnaise etc;


20 Heads Linear Type Piston Type Filling Machine Series


Features


Standard Features


1) Apply for filling of viscous liquid, pasty products, or sauces with soft particles

2) Frequency converting motor driven

3) Precision piston cylinder manufacturing technology, enable high filling accuracy and makes seal ring more durable;

4) PLC & touch screen HMI Control

5) Stainless steel 304 construction for main parts

6) Stainless steel 316 construction for product touching parts

7) Tool less for different container change over

8) High Precision and durable piston cylinder and seal design

9) Cleaning drain trough design, keep clean environment

10) No container no filling interlock

11) Quick connecting joints for pipes

12) One key instantly set up the filling volume, no need to adjust individually


Optional Features


1) Stainless steel 304 for product touching parts

2) Double Lanes

3) Servo motor driven



Technical Specification


Type 3B-xxxx20-X
Volume of Piston Pump120/250/500/1000/2000/5000 ml
Filling Heads20
Lanes2
Filling speed50-120 BPM
Filling precision≦±1 liquid   ≦±2 liquid cream
PowerAC380V, 3P, 50/60Hz 3KW
Weight1200kg
Pressure range0.4-0.6Mpa

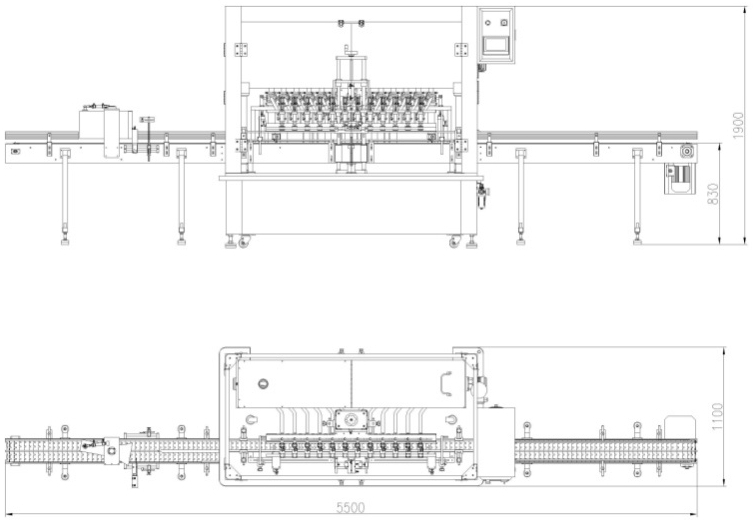

Host dimension2005×1505×2258mm


Note: the filling speed subject to the characteristic of products

20 Heads Linear Type Piston Type Filling Machine Series




Related Link

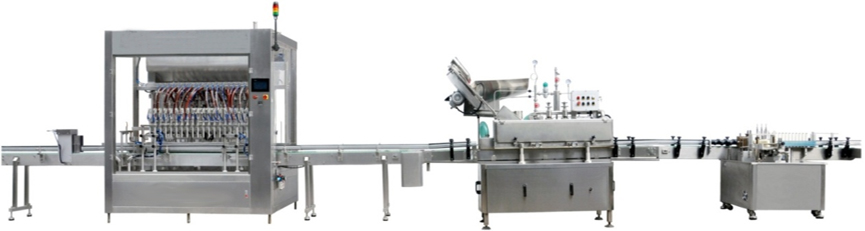

Typical Filling Line


20 Heads Linear Type Piston Type Filling Machine Series


1) 20-head piston filling machine

2) Twisting-off vacuum capping machine

3) Paste labeling machine


If need more support, please contact us at: cs@gloex.com.cn
