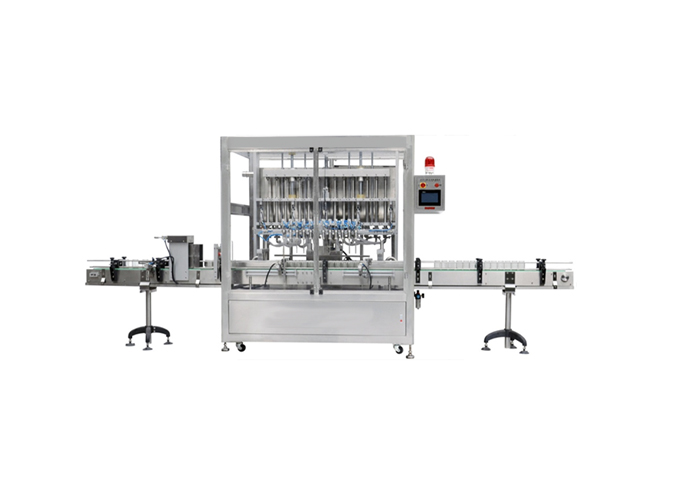

12 Heads Linear Type Piston Filling Machine
  • 12 Heads Linear Type Piston Filling Machine
12 Heads Linear Type Piston Filling Machine

12 Heads Linear Type Piston Filling Machine


    Product Code: PP211B


    This machine is applicable forthe filling of various liquids, liquid creams and sauces with soft particles , for instance , honey, chili sauce, tomato sauce, pearl milk tea, coconut juice, orange juice, ketchup, mayonnaise etc

Inquire Now
Product Introduction


Application


This machine is applicable forthe filling of various liquids, liquid creams and sauces with soft particles , for instance , honey, chili sauce, tomato sauce, pearl milk tea, coconut juice, orange juice, ketchup, mayonnaise etc



Features


Standard Features



1) Apply for filling of viscous liquid, pasty products, or sauces with soft particles

2) Frequency converting motor driven

3) Precision piston cylinder manufacturing technology, enable high filling accuracy and makes seal ring more durable;

4) PLC & touch screen HMI Control

5) Stainless steel 304 construction for main parts

6) Stainless steel 316 construction for product touching parts

7) Tool less for different container change over

8) High Precision and durable piston cylinder and seal design

9) Cleaning drain trough design, keep clean environment

10) No container no filling interlock

11) Quick connecting joints for pipes

12) One key instantly set up the filling volume, no need to adjust individually


Optional Features


1) Stainless steel304 for product touching parts

2) Double Lanes

3) Servo motor driven


Technical Specification


Type 3B-xxxx12-X
Volume of Piston Pump120/250/500/1000/2500/5000 ml
Filling Heads12
Lanes1
Filling speed60-80 BPM
Filling precision≦±1 liquid≦±2 liquid cream
PowerAC380V, 3P, 50/60Hz3KW
Weight1370kg
Pressure range0.4-0.6Mpa

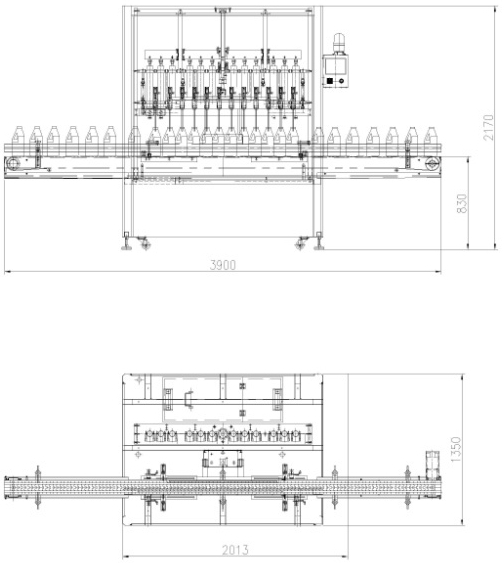

Host dimension2013×1315×2170mm


12 Heads Linear Type Piston Filling Machine


Related Link

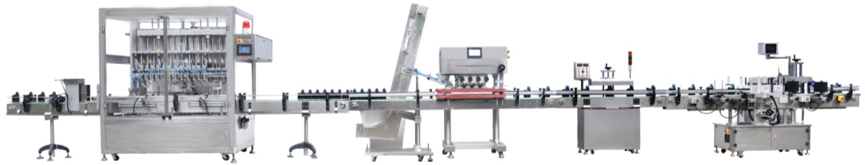

Typical Filling Line 1



12 Heads Linear Type Piston Filling Machine


1) 12-head double lane servo piston filling machine

2) 8-wheel capping machine

3) Water-cooled aluminum foil capping machine

4) Double-side labeling machine


If need more support, please contact us at: cs@gloex.com.cn
