Automatic Inline Piston Filling Machine
  • Automatic Inline Piston Filling Machine
Automatic Inline Piston Filling Machine

Automatic Inline Piston Filling Machine


    Product Code: PP211


    This machine is applicable for the filling of various liquids, liquid creams and sauces with soft particles, for instance, honey, chili sauce, tomato sauce, pearl milk tea, coconut juice, orange juice, ketchup, mayonnaise etc


Inquire Now
Product Introduction


Application


This machine is applicable for the filling of various liquids, liquid creams and sauces with soft particles, for instance, honey, chili sauce, tomato sauce, pearl milk tea, coconut juice, orange juice, ketchup, mayonnaise etc

Filling Products

Automatic Inline Piston Filling Machine


Packing containers

Automatic Inline Piston Filling Machine


Features


Standard Features



1) Apply for filling of viscous liquid, pasty products, or sauces with soft particles

2) Servo driven piston configuration

3) Frequency converting motor driven for filling up/down movement

4) Pneumatic anti-dripping plug equipped filling nozzles

5) PLC & touch screen HMI Control

6) Stainless steel 304 construction for surface and other main parts

7) Stainless steel 304 construction for product touching parts

8) Tool less for different container change over

9) High Precision and durable piston, cylinder, and seal design

10) No container no filling interlock

11) Quick connecting joints for pipes

12) One key instantly set up the filling volume, no need to adjust individually

13) Top mounted product storage tank with automatic product level control and loading



Optional Features



1) Stainless steel 316 for product touching parts

2) Double Lanes

3) Pneumatic or frequency converting driven piston





Technical Specification


Type 3B-xxxxSingle Lane Double Lane
Volume of Piston Pump120/250/500/1000/2500/5000 ml120/250/500 ml
Filling Heads≥4 (Customized Heads)Optional for 12 or 16
Lanes12
Filling speed4-5 BPM/head4-5 BPM/head/lane
Filling precision≦±1 liquid≦±2 liquid cream≦±1 liquid≦±2 liquid cream
PowerAC380V, 3P+N+E, 50HzAC380V, 3P+N+E, 50Hz
Pressure range0.4-0.6Mpa0.4-0.6Mpa

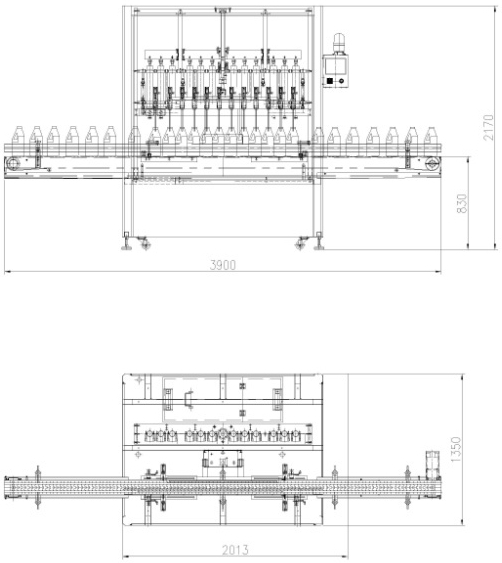

Layout Reference for single lane with 12 heads model

Automatic Inline Piston Filling Machine


Related Link

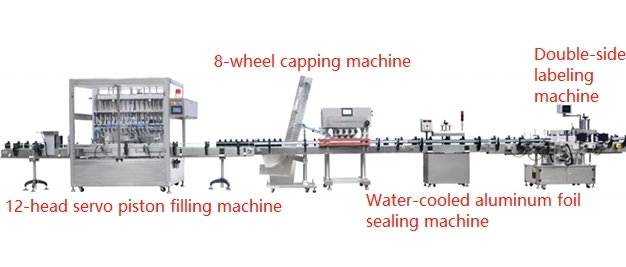

Typical Filling Line 1


Automatic Inline Piston Filling Machine

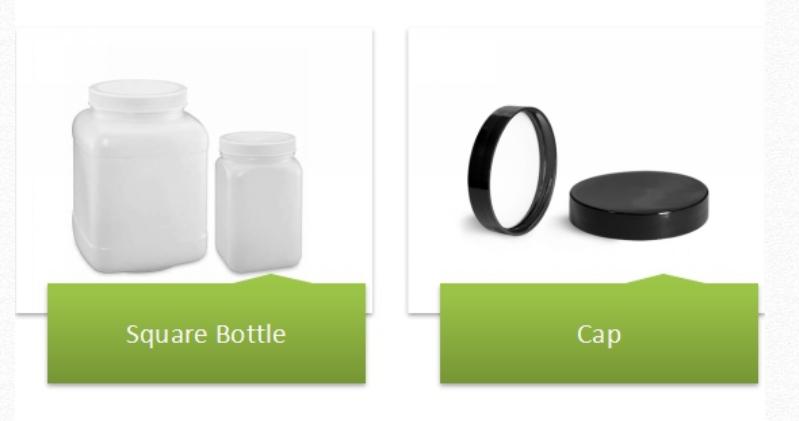

Regarding filling line applicable for square plastic jar with aluminum foil cap, like following


Automatic Inline Piston Filling Machine

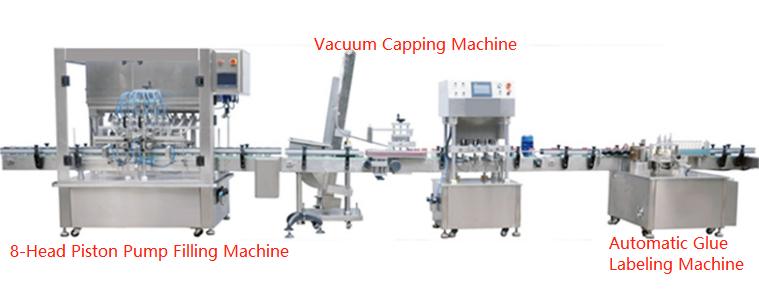

Typical Filling Line-2

Automatic Inline Piston Filling Machine

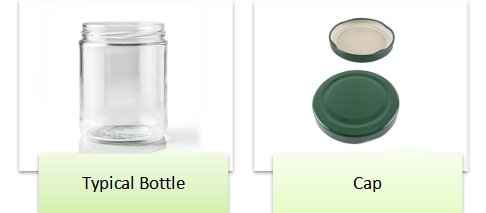

Regarding filling line applicable for round glass jar with tinplate cap, like following

Automatic Inline Piston Filling Machine


Automatic Inline Piston Filling Machine
