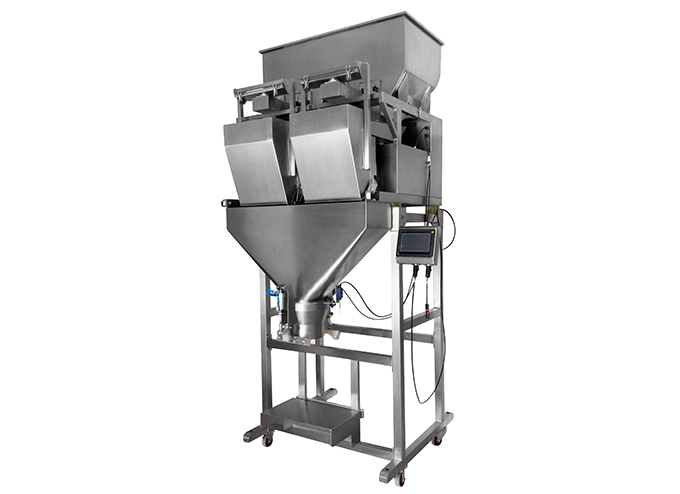

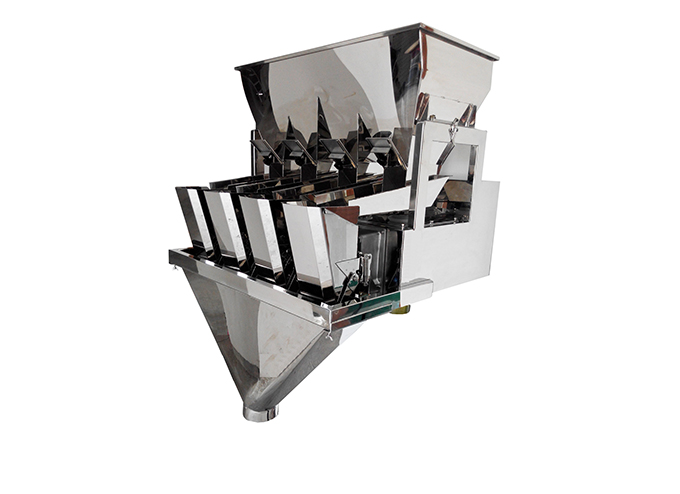

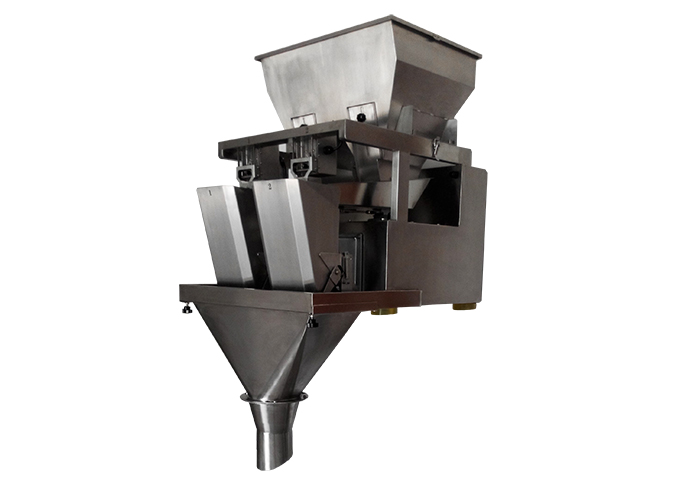

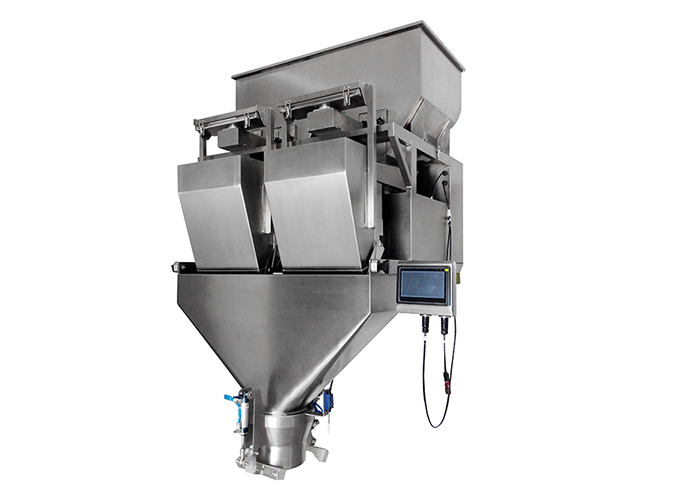

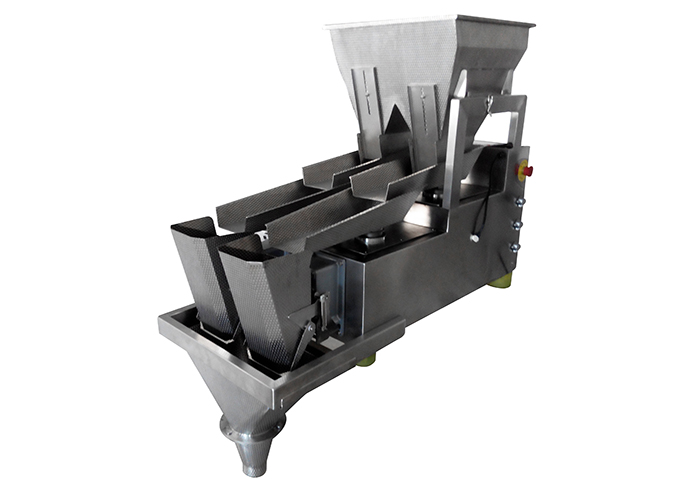

Linear Weigher


    Product Code: PP174


    This linear weigher is applicable for weighing free flowing products, such as bean, ground coffee, small nuts , rice, seeds, species , small candies , teas, salt, sesame ,vitamins , pet food, popcorn, plastic pieces, pellets and other small granule products. With suitable spout attached to the discharge hopper, capable to fill products into bottle, can, jar, pouch, tube or tray, all series can be supported on a split support frame and integrated with bagger or container indexing conveyor to form an automatic packaging line

Inquire Now
Product Introduction


Application


This linear weigher is applicable for weighing free flowing products, such as bean, ground coffee, small nuts , rice, seeds, species , small candies , teas, salt, sesame ,vitamins , pet food, popcorn, plastic pieces, pellets and other small granule products. With suitable spout attached to the discharge hopper, capable to fill products into bottle, can, jar, pouch, tube or tray, all series can be supported on a split support frame and integrated with bagger or container indexing conveyor to form an automatic packaging line


Following are the reference style of packaging




Features



Standard Feature


1)Apply for free-flowing products weighing

2)stainless steel 304 construction for product touching parts

3)Overload protection type high precise digital load cell and automatic zero tares during operation

4)Electric stepper motor driven system

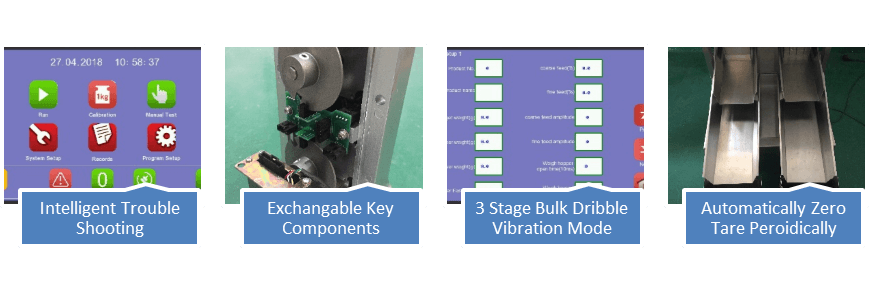

5)MCU & color touch screen control and feature with intelligent trouble shooting, exchangeable control boards and motor among different types

6)50 groups of presetting parameter function allow to program different target weight and feeder control condition, quick recall and product setting

7)Tilting supply hopper with build-in flap gate

8)Tool less product touching parts removal for easy cleaning

9)Vibrator assemblies are all mounted on springs to better isolate the vibrations allowing for a faster and more accurate product flow

10)Featured with no-grade and high cut-off characteristic vibrator enable high precision and high-speed processing capacity

11)3 stages Bulk and dribble vibration mode to accurately achieve the target weight

12)Manual, Foot Pedal operation mode or Automatic dump cycle feature allow to interface with automated equipment

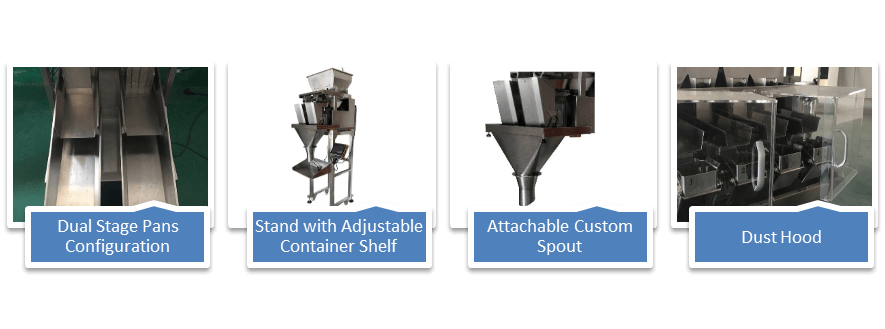

Optional Features

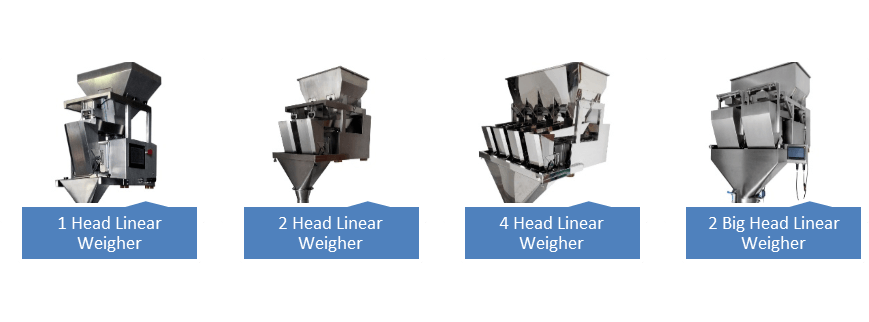

1)Single, dual or triple pans configuration

2)Tailoring of pans for different application

3)Stainless steel 304 support stand with/without adjustable container shelf

4)Dimpled and/or Stainless steel 316 for product touching parts

5)Lockable Casters installed for easy mobility

6)Attachable custom spout

7)Dust hood

8)Build-in shutter/flag gate for high free flow products

9)Remote control through blue tooth, LAN

10)IP 65 construction

11)Short drop discharge hopper for fragile product

12)Vibrator on supply hopper or discharge hopper

13)Pieces counting by utilizing weight count technology

Technical Specification


Catalogue/4K-xx-xx1B301B502B302B50
Weigh Bucket1122
Pan1122
Weighing Range-gram10-200010-400020-200020-4000
Weighing Graduation0.1gram0.1gram0.1gram0.1gram
Weighing Accuracy -gram+/- 1-2+/- 1-2+/- 1-2+/- 1-2
Weighing Speed -WPM0-150-150-300-30
Weigh Bucket Volume-Liter3.05.03.05.0
Max Mix-ProductsNANA22
Power RequirementAC220 50/60HzAC220 50/60HzAC220 50/60HzAC220 50/60Hz
Approximate Weight -kg6065200220
Dimension ( ‘mm )650*500*885650*500*885990*680*9551010*560*1005


Catalogue/4K-xx-xx
4B306B302B2404B05
Weigh Bucket4624
Pan4624
Weighing Range-gram10-200010-200020-200000.5-1000
Weighing Graduation0.1gram0.1gram0.1gram0.1gram
Weighing Accuracy -gram+/- 1-2+/- 1-2+/- 1-2+/- 0.5-2
Weighing Speed -WPM0-600-900-150-40
Weigh Bucket Volume-Liter3.03.024.00.5
Max Mix-Products4624
Power RequirementAC220 50/60HzAC220 50/60HzAC220 50/60HzAC220 50/60Hz
Approximate Weight -kg250300280200
Dimension ( ‘mm )1030*940*9451230*1040*9451730*1050*125990*900*905

Note:

1)The weighing range refer to single dump

2)Weighing speed are estimated, final results determined by product shape, density, target weight and flow characteristic

3)Product density determines the maximum weighing per dump

4)Accuracy is subject to product piece size, density, and consistent head pressure, target weight, weighing speed and other conditions



Advantages
