Product Code: 4T262A-GS

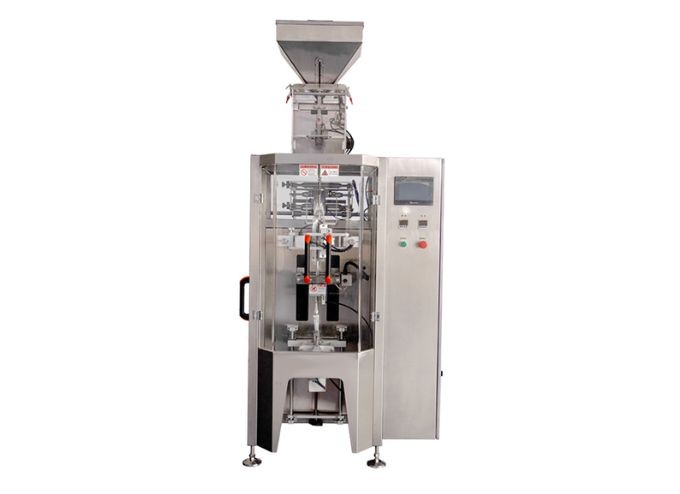

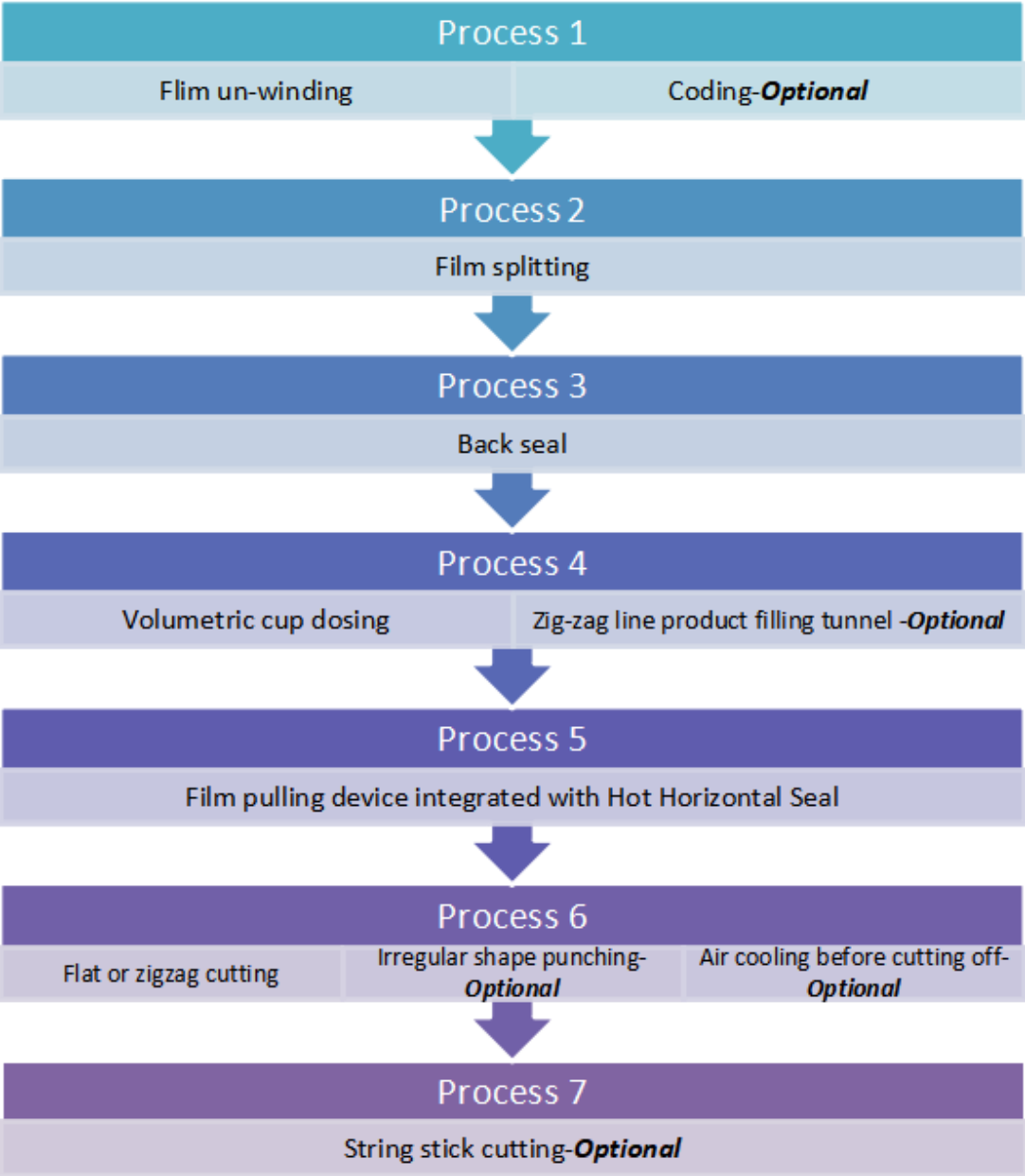

This machine is applicable for dosing granule and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.
This machine is applicable for dosing granule and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.
Related Video
Features
l Apply for back sealed stick form fill and seal
l Straight‚ zigzag cutting as the standard‚ irregular shape punching as the option
l Fixed stick width but adjustable stick length
l Guided servo motorized film pulling device integrated with horizontal seal
l Mainly stainless-steel 304 construction for frame and structure
l Stainless-steel 304 for product touching parts
l PLC & Touch screen HMI control
l PID temperature control for sealing process
l Air inflating roll shaft with pneumatic brake‚ gravity tension control for stable film un-winding

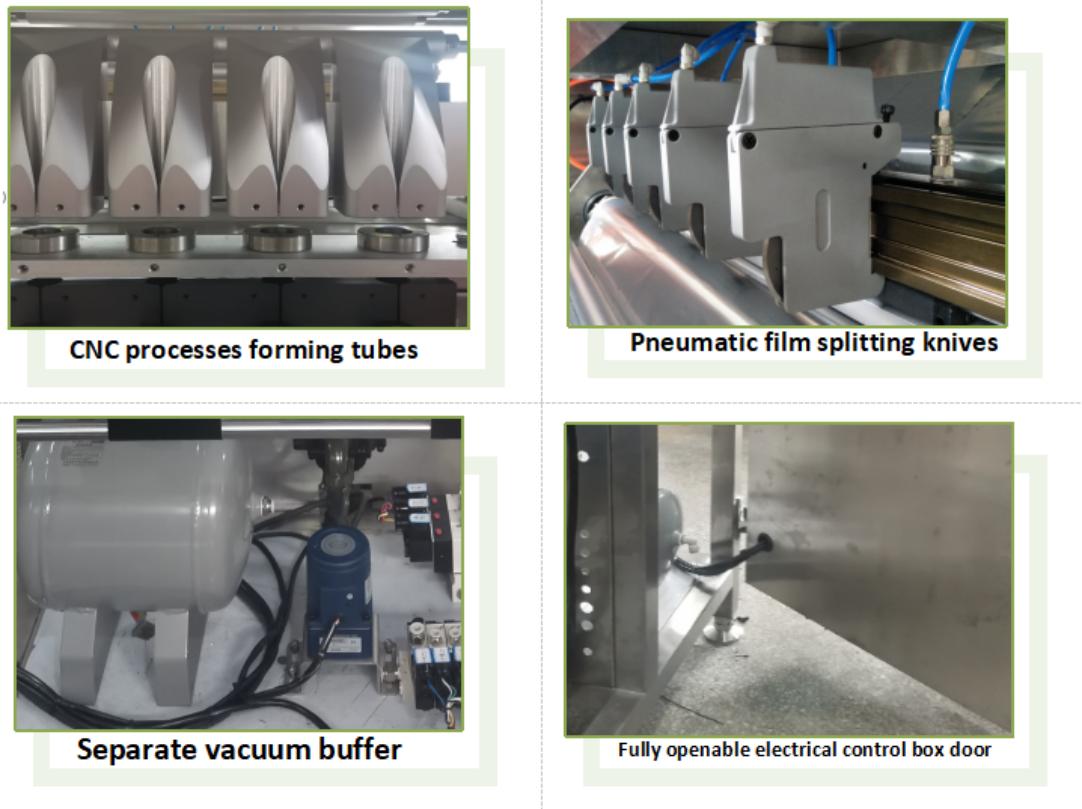

l Modular pneumatic round shaped film splitting knives‚ long life cycle‚ easy changeover
l Horizontal seal with air cooling device‚ ensure better sealing quality and cutting off effect
l Compressed air buffering tank configuration for stable pressure supply
l Rotatable controlling cabinet‚ for easy access and maintenance
l Film offset correcting‚ printing position adjustment feature configured‚ no waste of film design‚ no reserved film edge required

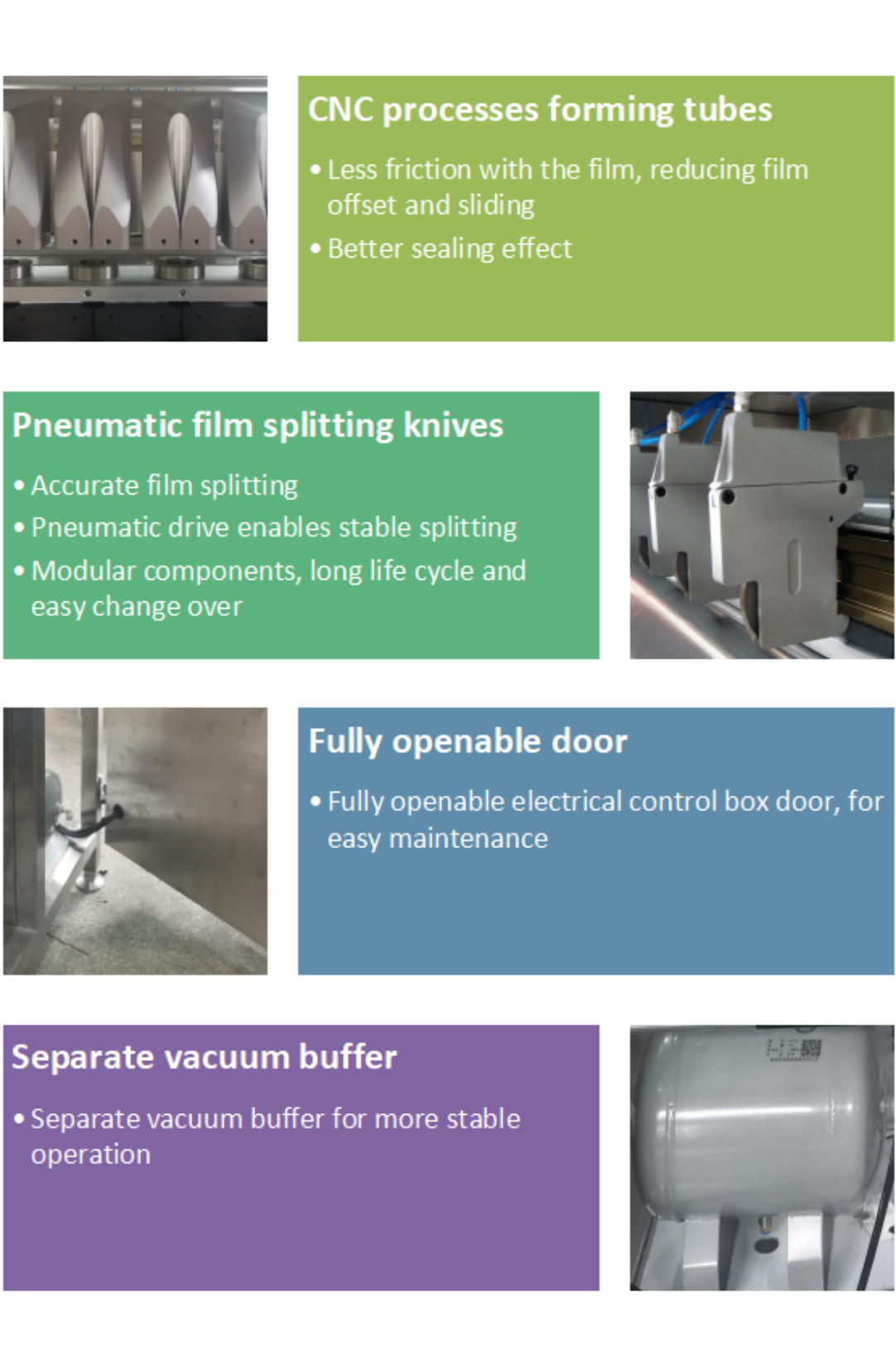

l CNC collar stick forming devices‚ reduces the deviation caused by film sliding
l Apply dosing small granules with good fluidity‚ measured by volume
l Materials: Stainless steel 304
l Volume: Customized
l Stainless Steel 316 for product touching parts

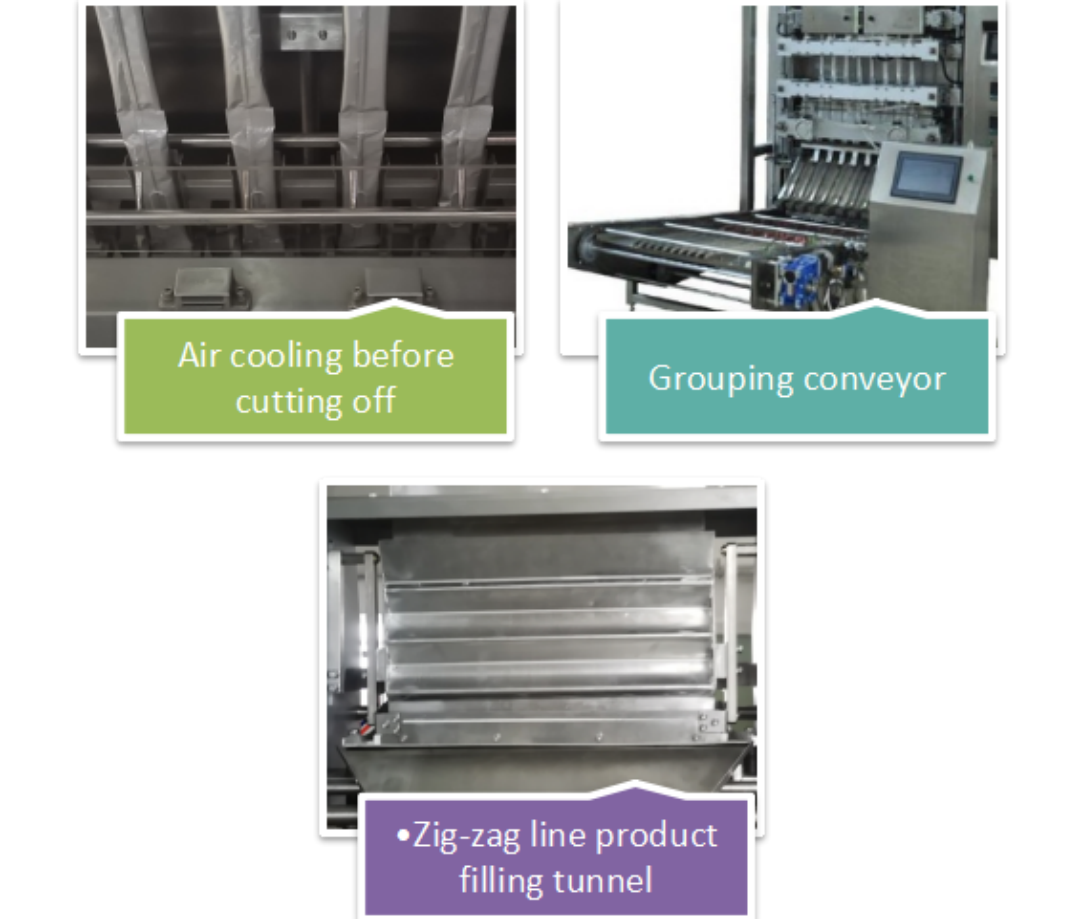

l Air cooling before cutting off
l Zig-zag line product filling tunnel, for sticky granule easier free flowing
l Round or irregular shape cutting off
l Embossing, ribbon, inkjet or laser coding
l Grouping or weight checking rejecting & grouping conveyor
l Secondary packing system, such as sticks counting, cartoning or bag packing
Advantages
Technical Specification
| 4T262 | 4T262-GS01 | 4T262-GS02 | 4T262-GS03 | 4T262-GS04 |
| Packaging Speed | 20-50 bags/min/lane | 20-50 bags/min/lane | 20-50 bags/min/lane | 20-50 bags/min/lane |
| Max film width(mm) | 180 | 180 | ≤410 | ≤410 |
| Lanes(mm) | 1 lane | 2 lanes | 3-6 lanes | 3-6 lanes |
| Stick Length(mm) | ≤180 | ≤180 | ≤180 | ≤180 |
| Stick Width(mm) | 20-85 | 20-40 | 20-30 | 30-45 |
| Packaging Material | Heat- sealed composite film | |||
| Measuring Device | Swinging cup volumetric filler | |||
| 4T262 | 4T262-GS05 | 4T262-GS06 | 4T262-GS07 | 4T262-GS08 |
| Packaging Speed | 20-50 bags/min/lane | 20-50 bags/min/lane | 20-50 bags/min/lane | 20-50 bags/min/lane |
| Max film width(mm) | ≤610 | ≤610 | ≤850 | ≤850 |
| Lanes(mm) | 4-10lanes | 4-10lanes | 4-12lanes | 4-12lanes |
| Stick Length(mm) | ≤180 | ≤180 | ≤180 | ≤180 |
| Stick Width(mm) | 20-35 | 35-70 | 20-40 | 20-70 |
| Packaging Material | Heat- sealed composite film | |||
| Measuring Device | Swinging cup volumetric filler | |||
