Product Code: 4T262A-LP

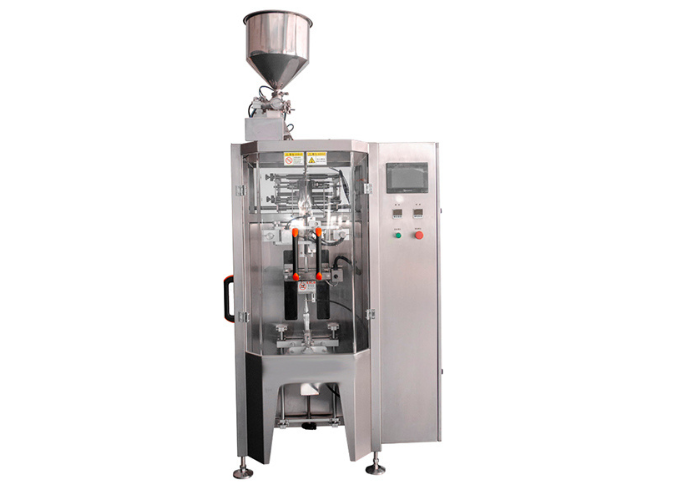

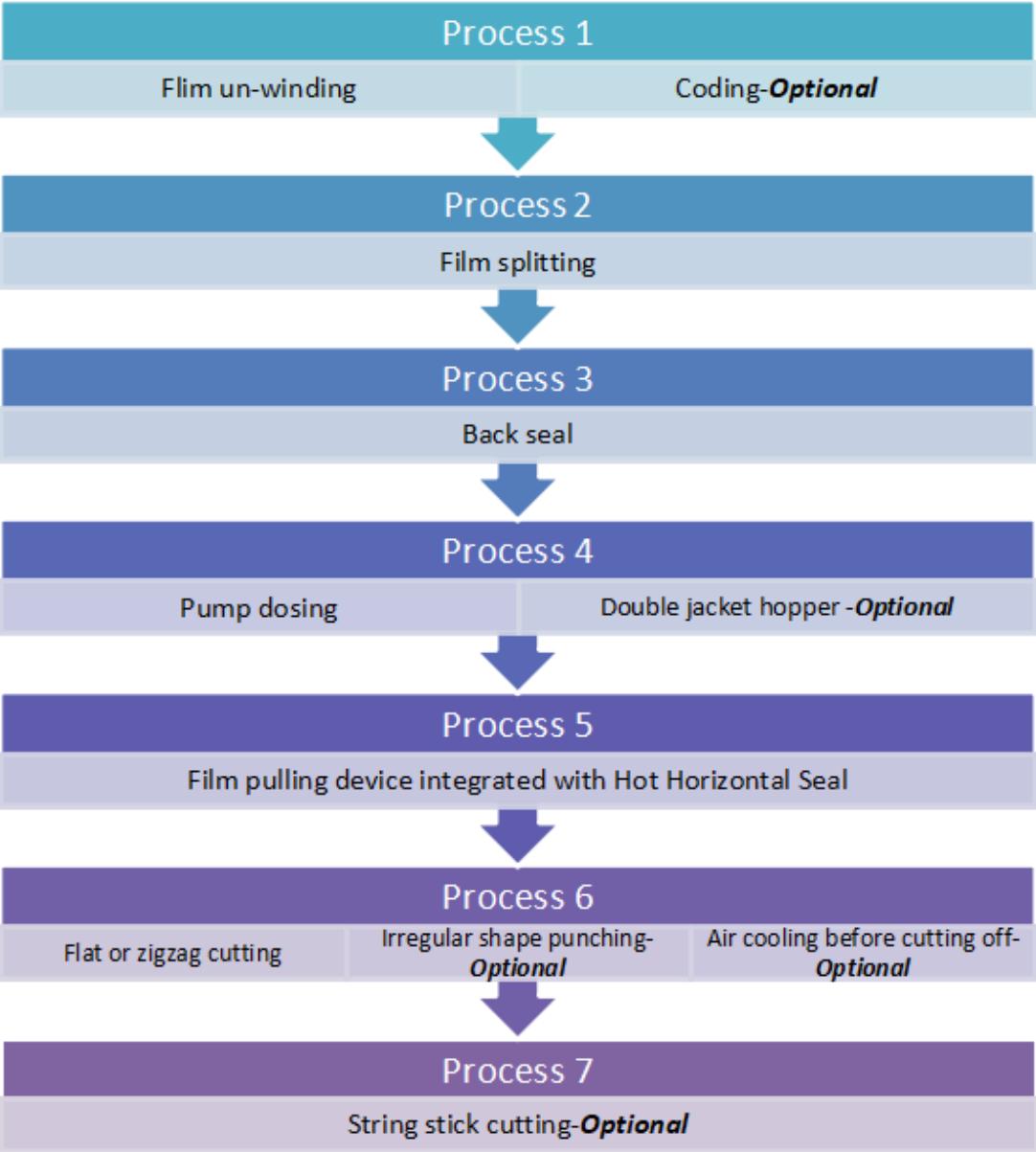

This machine is applicable for dosing liquid and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.By configure with different accessories, suitable for measuring normal or even viscous liquid with or without mix with granules.
Related Video
This machine is applicable for dosing liquid and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.
By configure with different accessories, suitable for measuring normal or even viscous liquid with or without mix with granules, such as water, juice, ketchup, honey, sauce, jam, etc.
Features

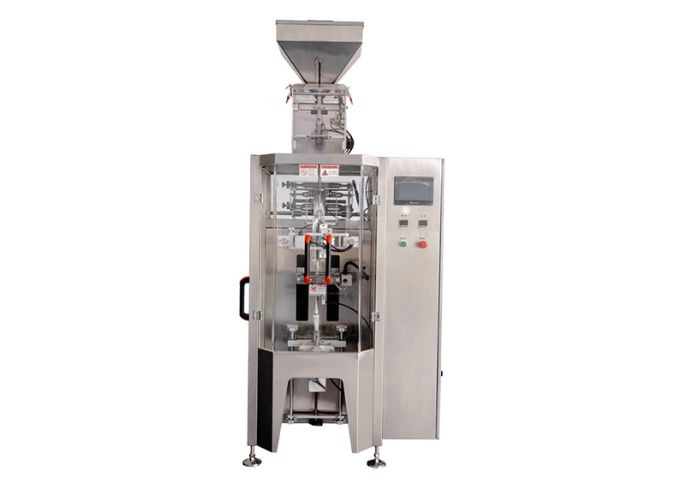

Main Machine
l Apply for back sealed stick form fill and seal
l Straight‚ zigzag cutting as the standard‚ irregular shape punching as the option
l Fixed stick width but adjustable stick length
l Guided servo motorized film pulling device integrated with horizontal seal
l Mainly stainless-steel 304 construction for frame and structure
l Stainless-steel 304 for product touching parts
l PLC & Touch screen HMI control
l PID temperature control for sealing process
l Air inflating roll shaft with pneumatic brake‚ gravity tension control for stable film un-winding

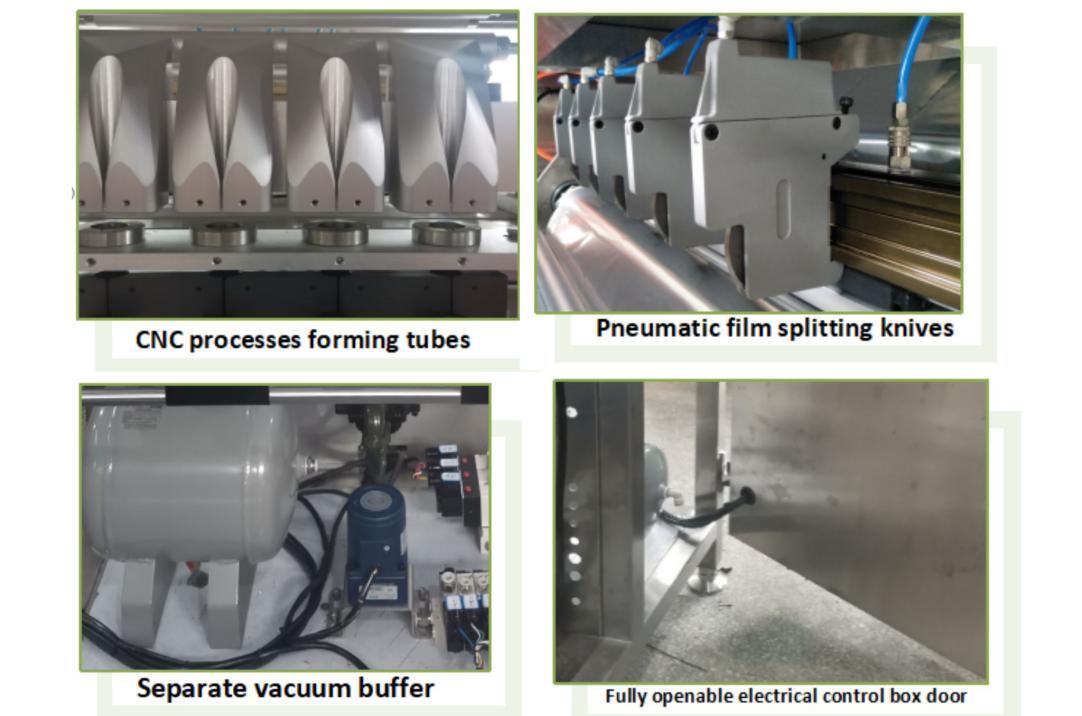

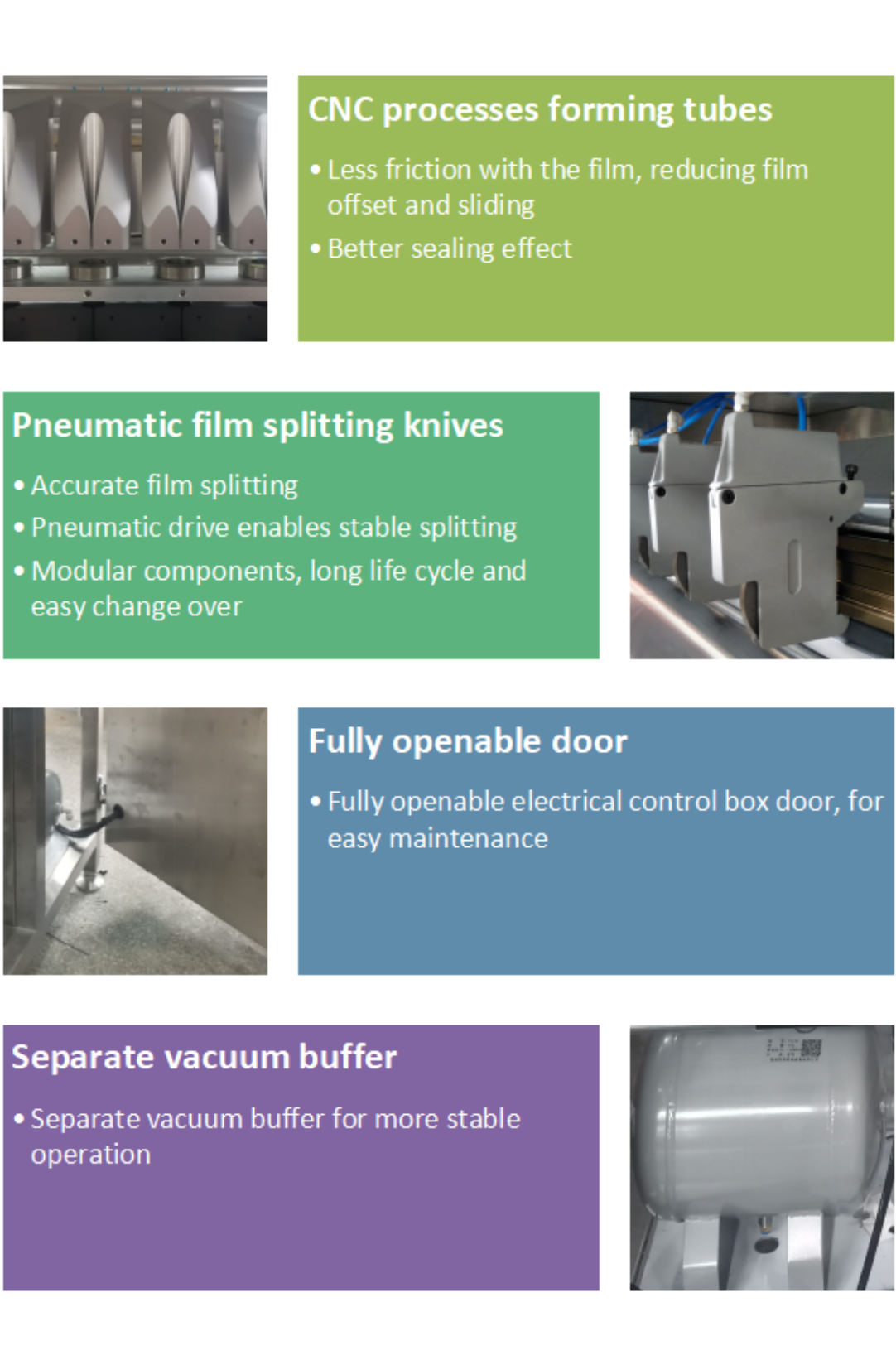

l Modular pneumatic round shaped film splitting knives‚ long life cycle‚ easy changeover
l CNC collar stick forming devices‚ reduces the deviation caused by film sliding
l Horizontal seal with air cooling device‚ ensure better sealing quality and cutting off effect
l Compressed air buffering tank configuration for stable pressure supply
l Rotatable controlling cabinet‚ for easy access and maintenance
l Film offset correcting‚ printing position adjustment feature configured‚ no waste of film design‚ no reserved film edge required
Dosing system:
l Driving mode: Pneumatic
l Apply dosing semi-liquid and liquid with normal fluidity
l Material of piston Stainless steel 304 as standard‚ SS316 as option
l Stainless Steel 316 for product touching parts

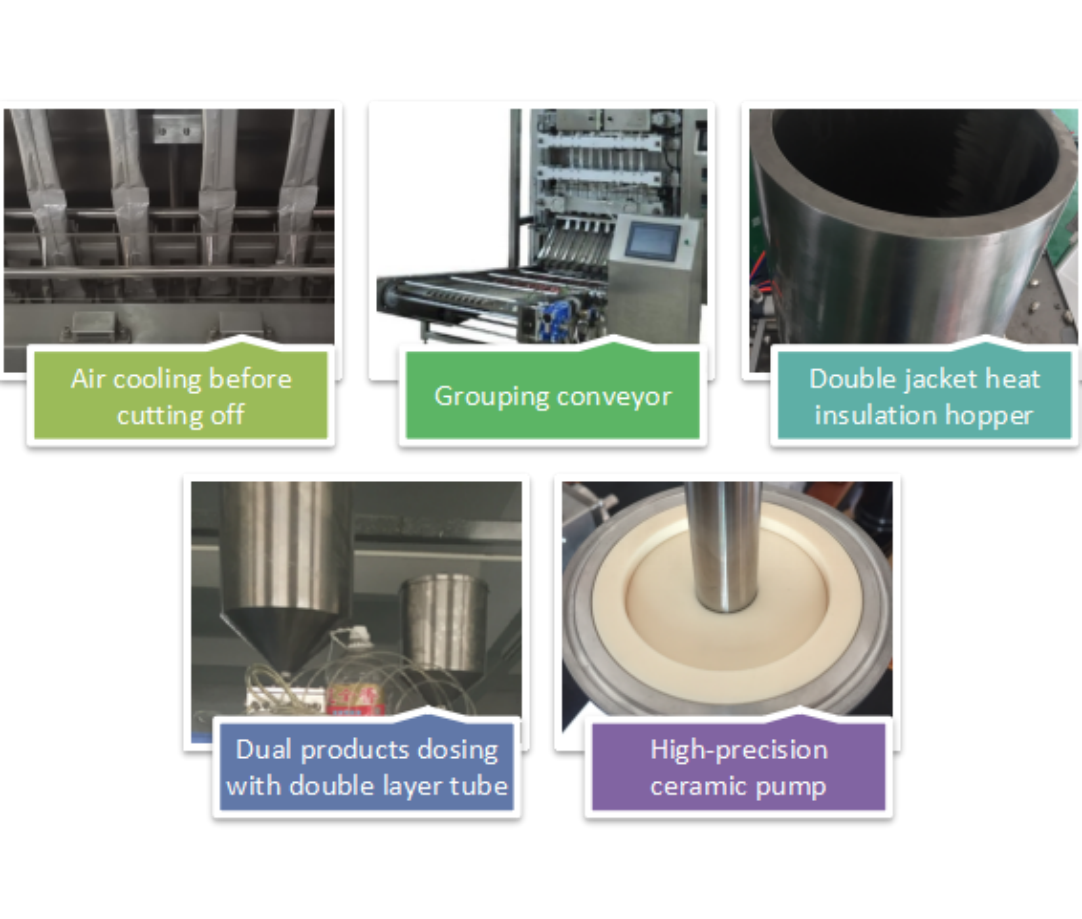

l Air cooling before cutting off
l Round and other irregular shape cutting off
l Embossing, ribbon, inkjet or laser coding
l Vacuum dust collecting system
l Grouping or weight checking rejecting & grouping conveyor
l Secondary packing system, such as sticks counting, cartoning or bag packing
l Double layer long auger for nitrogen filling
l Powder vacuum loading device
l High-precision ceramic pump
l Double jacket heat insulation hopper
l Dual products dosing with double layer tube
Advantages
Technical Specification
| 4T262 | 4T262A-LP01 | 4T262A-LP02 | 4T262A-LP03 | 4T262A-LP04 |
| Packaging Speed | 20-50 sticks/min/lane | 20-50 sticks/min/lane | 20-50 sticks/min/lane | 20-50 sticks/min/lane |
| Max film width(mm) | 180 | 180 | ≤410 | ≤410 |
| Lanes | 1 lane | 2 lanes | 3-6 lanes | 3-6 lanes |
| Stick Length | ≤180 | ≤180 | ≤180 | ≤180 |
| Stick Width | 20-85 | 20-40 | 20-30 | 30-45 |
| Packaging Film Roll | Heat-sealed composite film | |||
| Measuring Device | Servo driven long auger filler | |||
| 4T262 | 4T262A-LP05 | 4T262A-LP06 | 4T262A-LP07 | 4T262A-LP08 |
| Packaging Speed | 20-50 sticks/min/lane | 20-50 sticks/min/lane | 20-50 sticks/min/lane | 20-50 sticks/min/lane |
| Max film width | ≤610 mm | ≤610 mm | ≤800 | ≤800 |
| Lanes | 4-10 lanes | 4-10 lanes | 4-12 lanes | 4-12 lanes |
| Stick Length | ≤180 | ≤180 | ≤180 | ≤180 |
| Stick Width | 20-35 | 35-70 | 20-40 | 20-70 |
| Packaging Film Roll | Heat-sealed composite film | |||
| Measuring Device | Servo driven long auger filler | |||
