Product Code: 4T262A-PL

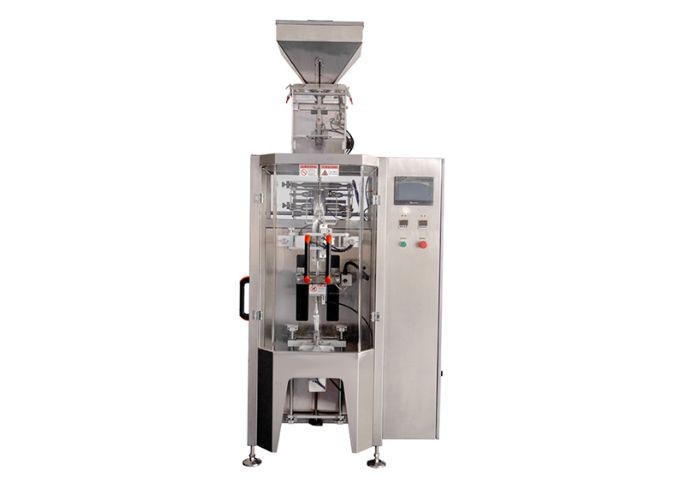

This machine is applicable for dosing powder and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.By configure with different accessories, suitable for measuring normal or even free-flowing powders
Related Video
This machine is applicable for dosing powder and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.
By configure with different accessories, suitable for measuring normal or even free-flowing powders, such as milk powder, rice flour, protein powder, powdery drugs, powder additives, glucose, dyeing Ingredients, flavors, spices, etc.
Features
l Guided servo motorized film pulling device integrated with horizontal seal
l Mainly stainless-steel 304 construction for frame and structure
l Stainless-steel 304 for product touching parts
l PLC & Touch screen HMI control
l PID temperature control for sealing process
l Air inflating roll shaft with pneumatic brake‚ gravity tension control for stable film un-winding
l Modular pneumatic round shaped film splitting knives‚ long life cycle‚ easy changeover
l Horizontal seal with air cooling device‚ ensure better sealing quality and cutting off effect
l Compressed air buffering tank configuration for stable power supply
l Rotatable controlling cabinet‚ for easy access and maintenance
l No waste of film design‚ no reserved film edge required
l 2-Stage hopper ensures uniform density and high measuring accuracy
l Configured hopper stirring device
l Auger screw deeply extends into the bag bottom‚ anti-dusty maximum
l Auger system able to move in and out‚ convenient for disassembly and daily maintenance
l Stainless Steel 316 for product touching parts

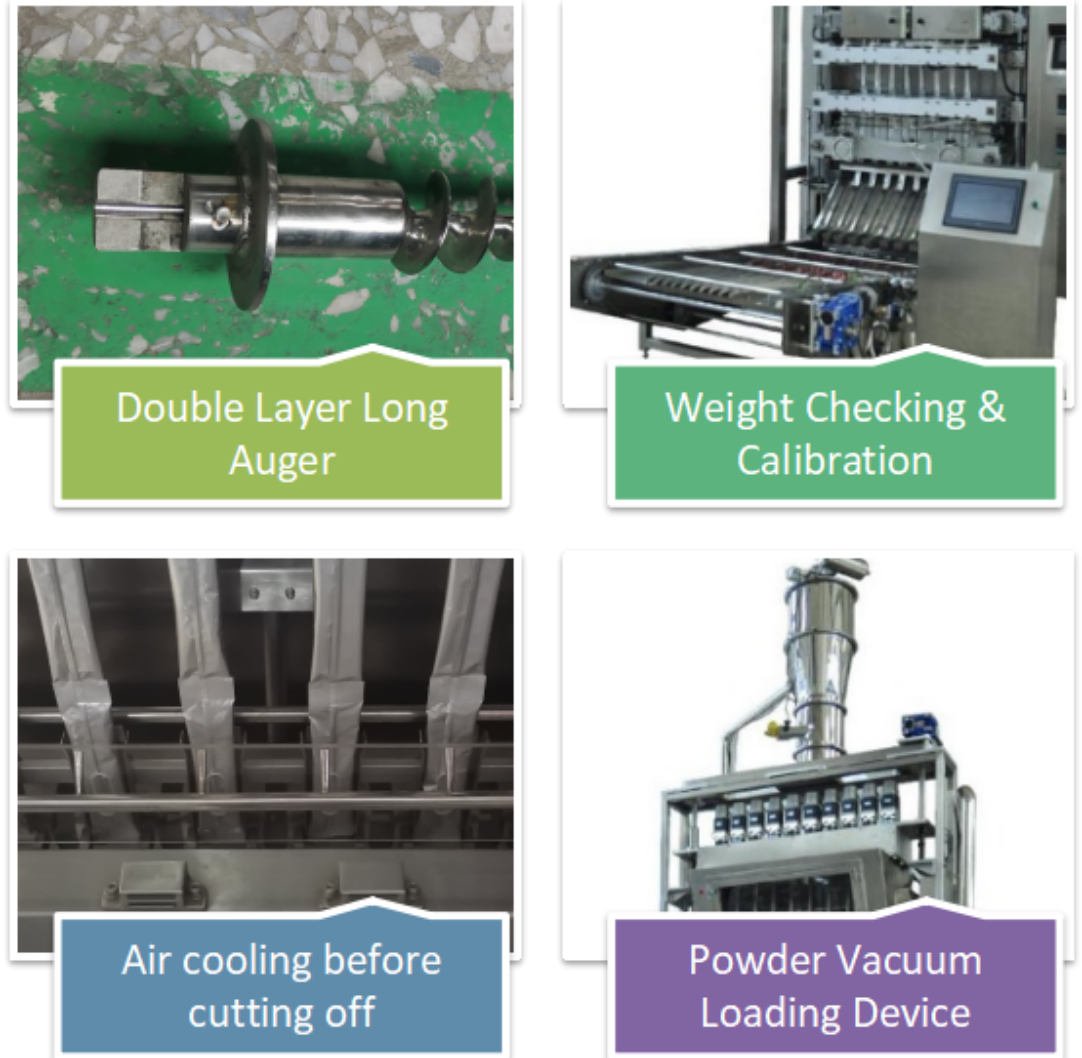

l Air cooling before cutting off
l Round and other irregular shape cutting off
l Embossing, ribbon, inkjet or laser coding
l Vacuum dust collecting system
l Grouping or weight checking rejecting & grouping conveyor
l Secondary packing system, such as sticks counting, cartoning or bag packing
l Double layer long auger for nitrogen filling
l Powder vacuum loading device

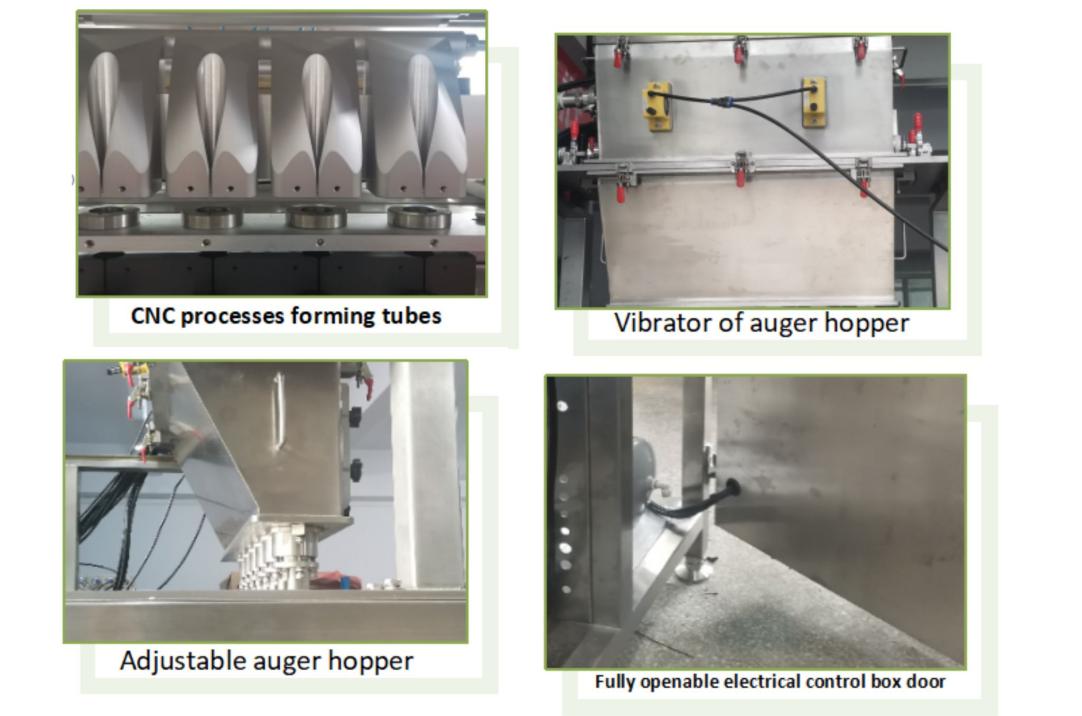

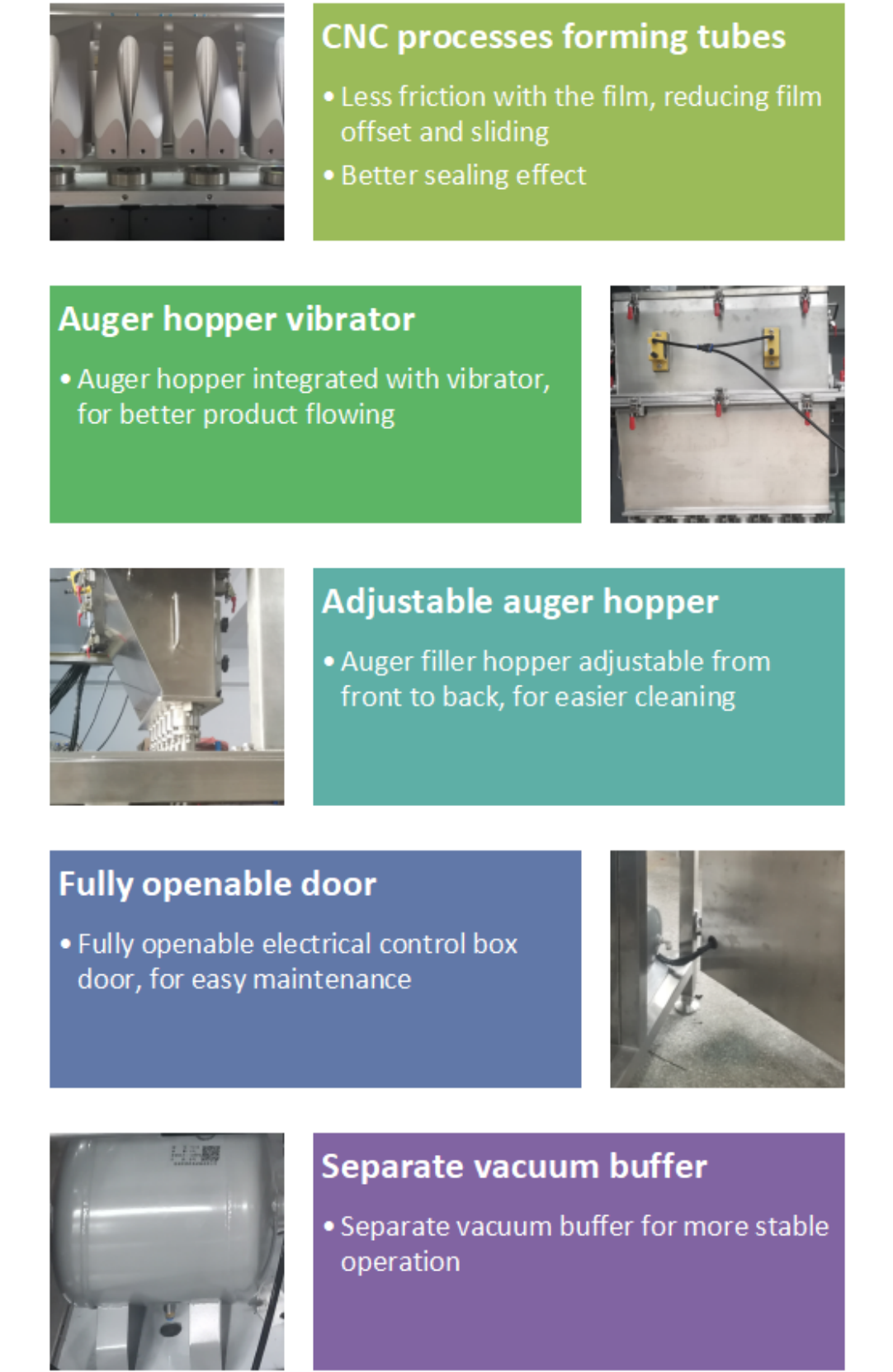

Advantages
Technical Specification
| 4T262 | 4T262A-LP01 | 4T262A-LP02 | 4T262A-LP03 | 4T262A-LP04 |
| Packaging Speed | 20-50 sticks/min/lane | 20-50 sticks/min/lane | 20-50 sticks/min/lane | 20-50 sticks/min/lane |
| Max film width(mm) | 180 | 180 | ≤410 | ≤410 |
| Lanes | 1 lane | 2 lanes | 3-6 lanes | 3-6 lanes |
| Stick Length(mm) | ≤180mm | ≤180mm | ≤180mm | ≤180mm |
| Stick Width(mm) | 20-85 | 20-40 | 20-30 | 30-45 |
| Packaging Film Roll | Heat-sealed composite film | |||
| Measuring Device | Servo driven long auger filler | |||
| 4T262 | 4T262A-LP05 | 4T262A-LP06 | 4T262A-LP0 | 4T262A-LP08 |
| Packaging Speed | 20-50 sticks/min/lane | 20-50 sticks/min/lane | 20-50 sticks/min/lane | 20-50 sticks/min/lane |
| Max film width(mm) | ≤610 | ≤610 | ≤800 | ≤800 |
| Lanes | 4-10 lanes | 4-10 lanes | 4-12 lanes | 4-12 lanes |
| Stick Length(mm) | ≤180 | ≤180 | ≤180 | ≤180 |
| Stick Width(mm) | 20-35 | 35-70 | 20-40 | 20-70 |
| Packaging Film Roll | Heat-sealed composite film | |||
| Measuring Device | Servo driven long auger filler | |||
