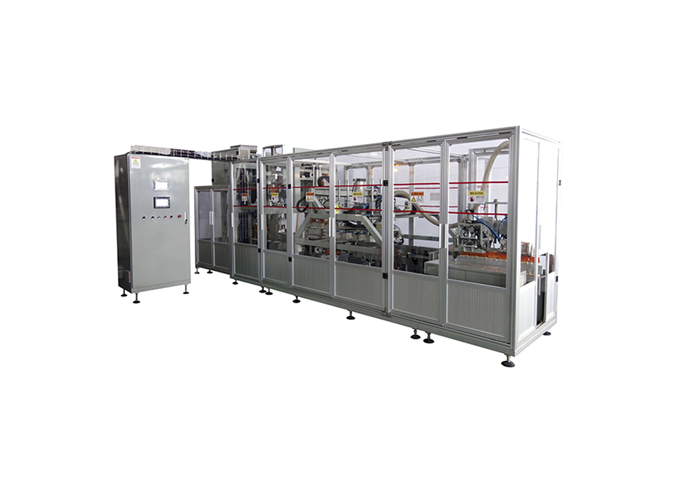

Double Chamber Vacuum Brick Pouch Packaging Machine
  • Double Chamber Vacuum Brick Pouch Packaging Machine
Double Chamber Vacuum Brick Pouch Packaging Machine

Double Chamber Vacuum Brick Pouch Packaging Machine


    Product Code: PP306


    This machine is applicable for granular/ powder automatic vacuum brick shape packing.


    It integrates dosing, bag forming, filling, vacuum, sealing, bag shaping fully automatically.



Inquire Now
Product Introduction


Application


This machine is applicable for granular/ powder automatic vacuum brick shape packing.


It integrates dosing, bag forming, filling, vacuum, sealing, bag shaping fully automatically.
Double Chamber Vacuum Brick Pouch Packaging Machine

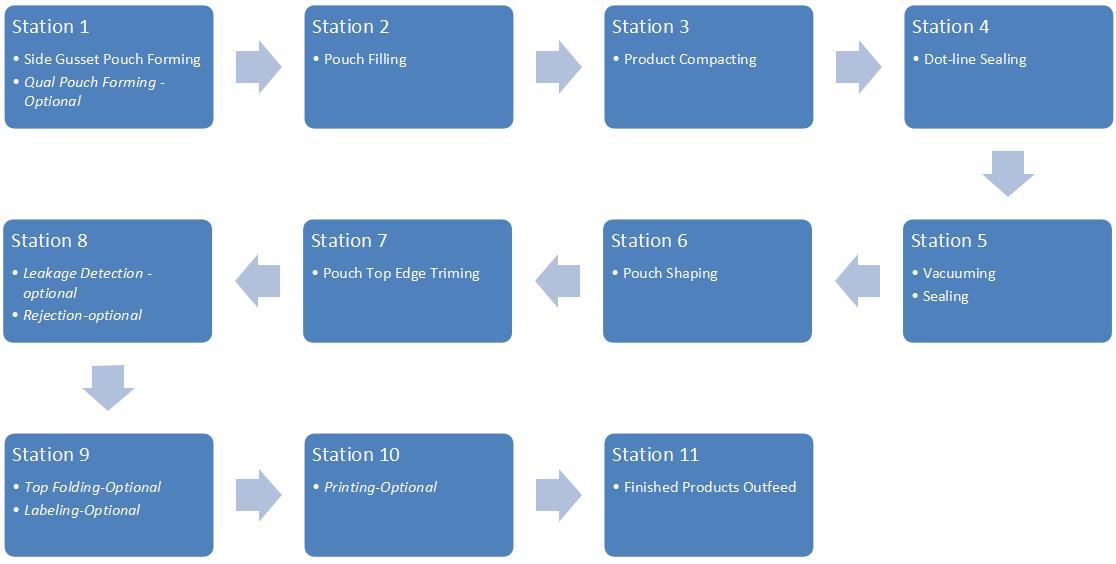

Working Processes


Double Chamber Vacuum Brick Pouch Packaging Machine



Features


Standard Features


1) Applied for brick shaped side gusset pouch form fill and seal by vacuuming process

2) Configure with different dosing device for powder or granule packing

3) Mainly stainless steel 304 construction for frame, structure and surface

4) Centralized PLC & HMI Control station for parameter setting and troubleshooting

5) Including vertical fill seal unit, vacuum packing and brick shaping unit

6) Double chambers for Vacuuming

7) Pouch length adjustable to suit a range of product weights


Optional Features


1) Qual sealed pouch

2) Volumetric cup, auger, liner scales, or multihead weigher dosing devices

3) Ribbon coder, thermal transfer printer, inkjet printer options

4) Labeling on film or on finished products options

5) Air leak detection

6) Final product discharge conveyor

7) Material loading device such as vacuum material loading, screw material loading, Z-shape Bucket Elevator


Double Chamber Vacuum Brick Pouch Packaging Machine


Construction


Except for the design of the machine, the key components configuration will determine the quality of the machine or system, below is the shortlist configuration of the key components:


NoComponentsMaterial / Short ListOrigin
1Products Touching PartsStainless Steel 304
2Inner StructurePainted Carbon Steel
3Programmable Logic ControllerOmron  Japan
4Touch ScreenWeinviewTaiwan China
5Stepper/Servo MotorMatsushita Japan
6Key Protection & RelaySchneiderFrench
7Proximity switch, photoelectric switchAutonics Korea
8Color mark sensorBannerUnited States
9Intermediate relayIdec  Japan
10Pneumatic ComponentsAirtacTaiwan China



Technical Specification


Type 520BM
Packing speed25-35 bags/min
Pouch Length 100-300 mm adjustable
Pouch Width100-250 mm
Max Film Width 520 mm
Air supply>= 6kg/cm² 300L/min
Power supply3 phrase, 380V,50Hz,15kw
Machine weight2800kg

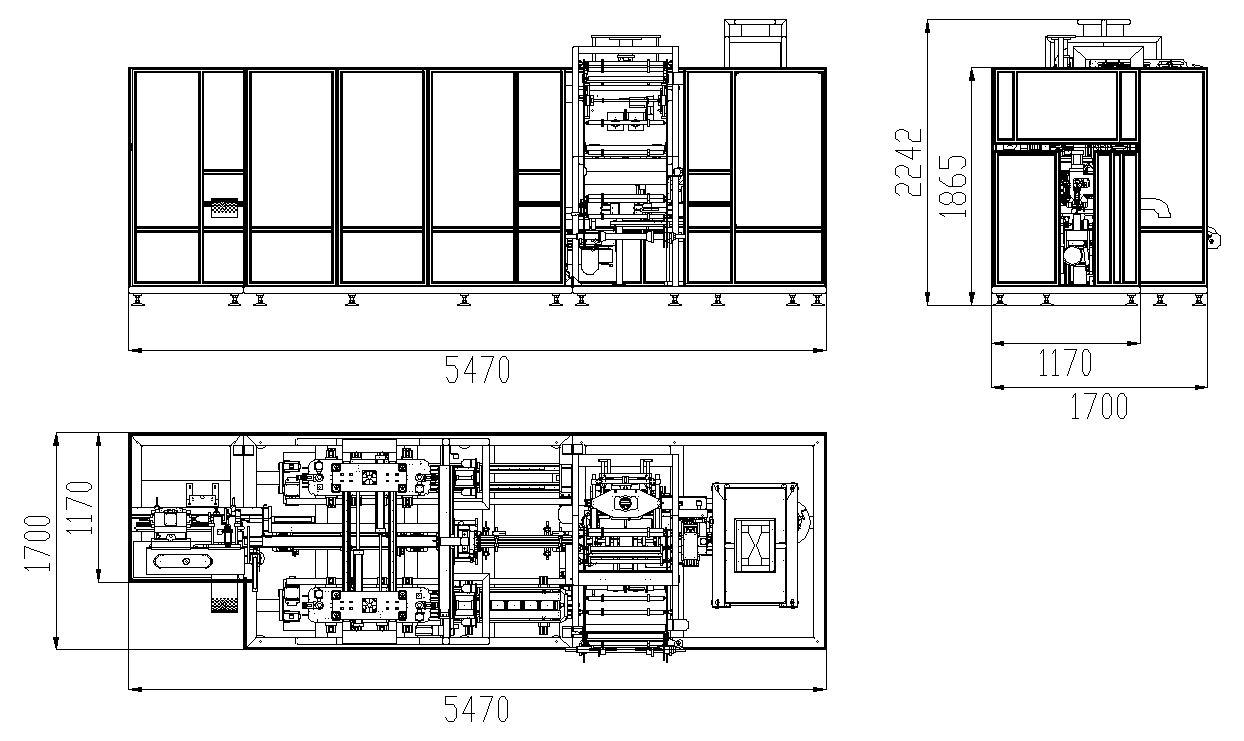

Dimension L*W*H5470mm * 1700mm *2500mm


Double Chamber Vacuum Brick Pouch Packaging Machine

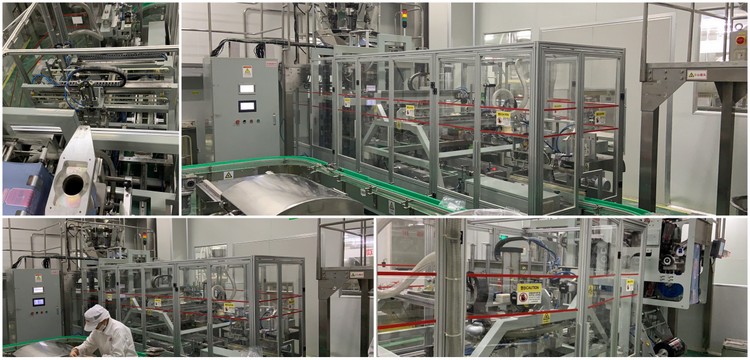

Cases
